Product Details:
|
| Typical Application: | Liquid (no Stirring, Foam, Volatilization, Etc.) | Product Models: | Nycsul-501, NYCSUL-502, NYCSUL-503 |
|---|---|---|---|
| The Probe Type: | Body, Split Body, Explosion-proof, Anti-corrosion, Anti-corrosion And Explosion-proof | The Antenna Form Material: | PP, PVC, PTFE, 304 |
| Accuracy Of Measurement: | <0.25% (range <20 M), <0.5% (range >20 M) | Process Pressure: | -0.1 ~=0.1 MPa, (atmospheric Pressure) |
| Process Connection: | Process Connection | Explosion-proof Grade: | Exia II CT6 Ga, Exd II CT6 Gb(see Certificate For Details) |
| High Light: | Intelligent Ultrasonic Level Gauge,PTFE Liquid Ultrasonic Level Gauge,Gas Tank Ultrasonic Level Transmitter |
||

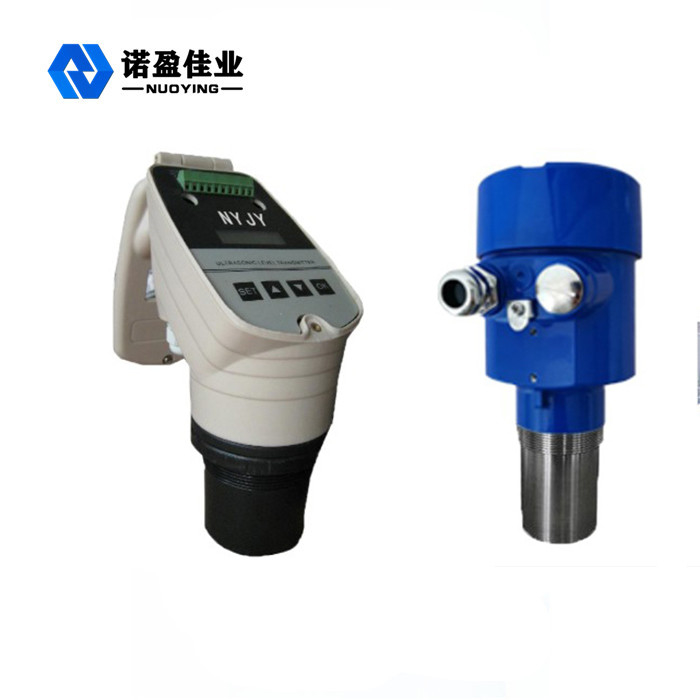

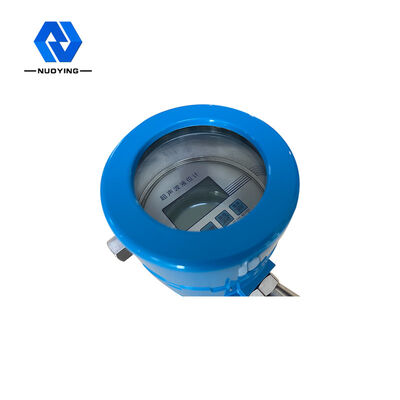

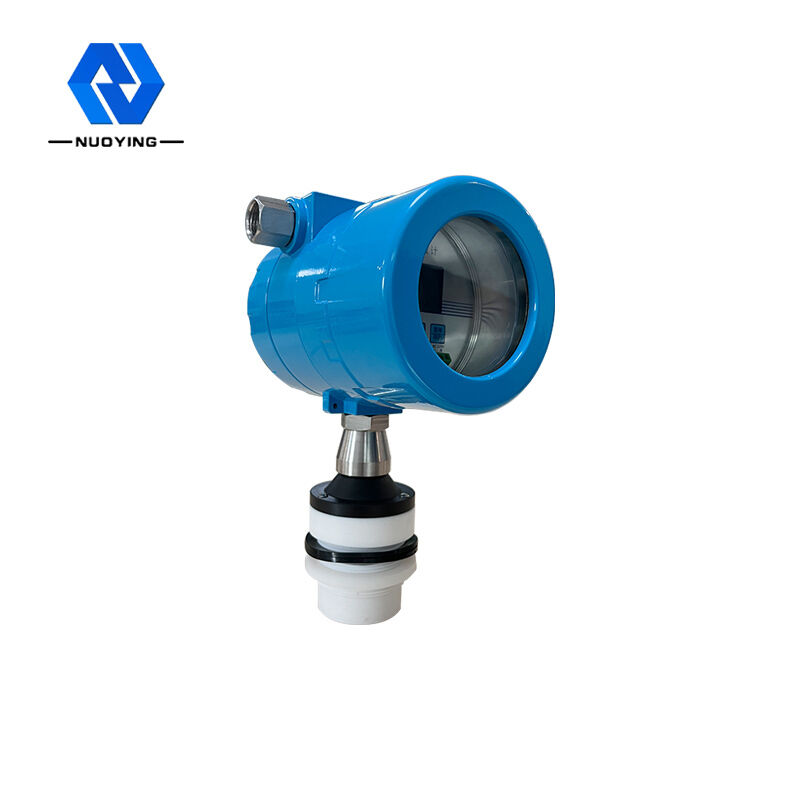

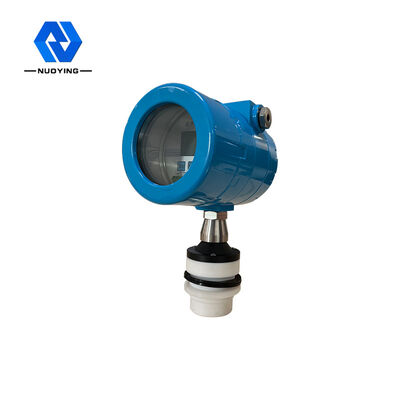

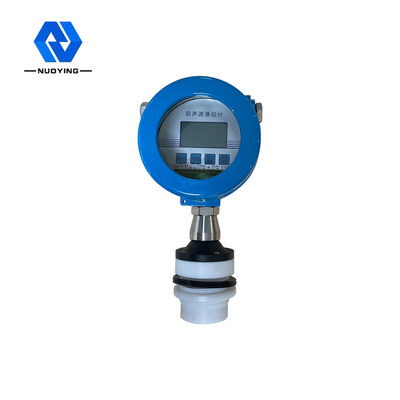

Excellent Performance Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
The working Principle of Excellent Performance Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
The product has automatic power adjustment, gain control, temperature compensation, advanced detection and calculation technology, and has the function of suppressing interference signals, thus fundamentally improving the measurement accuracy of the instrument and ensuring the authenticity of the measurement results. The product can be widely used for liquid level measurement of various liquids and distance measurement.Ultrasonic level meter installed on the top of the container, under the control of the electronic unit, probe to launch a bunch of ultrasonic pulse object to be tested, sound waves are body surface reflection, part of the echo received by the probe into electrical signals, according to the ultrasonic time difference from the launch to be receiving and known to determine the level of sound, Microwave signals are processed by electronic devices and finally converted into electrical signals related to the object level.
Design feature of Excellent Performance Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
◎ reasonable design, excellent performance, simple structure, convenient installation, etc
◎ small angle probe is adopted for ultrasonic wave, with large transmission power and high sensitivity
◎ upper and lower limit setting and alarm setting at any point, can be used for continuous liquid measurement and liquid level control
Technical parameters of Excellent Performance Intelligent NYCSUL Ultrasonic Level Gauge For Liquid Measurement
| Typical application | Liquid (no stirring, foam, volatilization, etc.) |
| Product models | Nycsul-501, NYCSUL-502, NYCSUL-503 |
| The probe type | Body, split body, explosion-proof, anti-corrosion, anti-corrosion and explosion-proof |
| The antenna material | PP, PVC, PTFE, 304 |
| Measuring range | 0~ 20M (integrated), 0~40m(separate), |
| Accuracy of measurement | <0.25% (range <20 m), <0.5% (range >20 m) |
| The process temperature | 3M, 20M (deep well can measure several hundred meters, which can be customized as well) |
| Accuracy of measurement | 0.05% ~ 0.1% F. S |
| The process temperature | -20~+70C |
| Process pressure | -0.1 ~=0.1 MPa, (atmospheric pressure) |
| Electrical Interface | M20×1.5,½"NPT |
| Protection class | IP65, IP67, IP68(optional) |
| Process connection | Process connection |
| Display mode | Liquid level, distance (air height) |
| Set the output | Upper limit setting, lower limit setting |
| Signal output | 4... 20mA/ HART/ RS485/Modbus. . . |
| Protection grade | IP65, IP67, IP68(Optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
