| Typical Application: | Solid Dust Particles | Antenna Form: | Bar Type, Water Drop Type, Plate Type, Horn Type, Surface Type, Lens Type |
|---|---|---|---|
| Meaturing Range: | 80m | Measurement Accuracy: | 0.05%~0. 1%F.S |
| Power Supplies: | 24VDC(two-wire, Four-wire) | The Process Connection: | Flange, Clamp (optional) |
| Protection Grade /IP Grade: | IP67(Optional) | Hazardously Explosive-proof Grade: | ExialICT6 Ga (optional) |
| High Light: | 26G Wise Radar Level Meter,Steam Crystalline Radar Level Meter,Crystalline Radar Level Instrument |
||

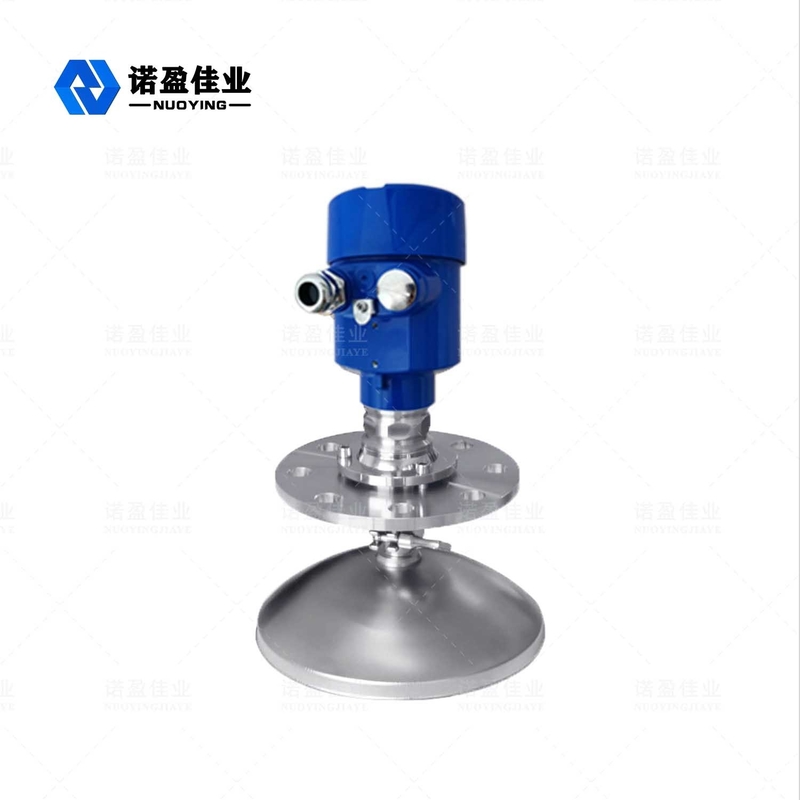

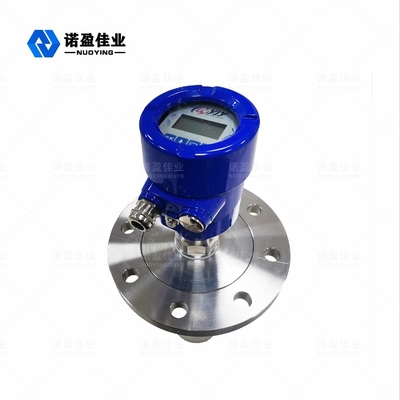

26G Intelligent High Frequency Radar Level Meter For Solid Dust Particles NYRD 810
Working Principle of 26G Intelligent High Frequency Radar Level Meter For Solid Dust Particles NYRD 810
Radar Level Meter (NYRD80X)series sensors are 26GHz Anti-floating dust and cement powder radar level measuring instruments, measuring the maximum distance up to 80 meters. The antenna is further optimized, and new fast microprocessors can perform higher rate signal analysis and processing, enabling the meter to be used in complex measurement conditions such as reaction Anti-floating dust and cement powder working sites and solid bin.
With regard to the ultrasonic time difference from the launch to be receiving and gained to determine the level of sound, Microwave signals are processed by electronic devices and finally converted into electrical signs related to the object level
Datum of measurement: sealing surface of thread bottom or flange.
Note: When using radar level timing, make sure that the highest material level cannot enter the measurement blind area (the area shown in D in the figure).
The Designing Features of 26G Intelligent High Frequency Radar Level Meter For Solid Dust Particles NYRD 810
◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.
Technical parameters of 26G Intelligent High Frequency Radar Level Meter For Solid Dust Particles NYRD 810
| Typical application | Solid dust particles |
|
product model
|
NYRD810 |
| Antenna form | Stick, water drop, flat, trumpet,thrown surface, lens |
| Antenna material | 316L(optional) |
| measuring range | 80m |
| accuracy of measurement | 0.05%~0.1%F.S |
| Power Supply Voltage | 24VDC(four wire) |
| signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃ |
| Process pressure | -0.1~4.0MPa, |
| procedure linkage | flange(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP67(optional) |
| explosion-proof classification | Exia II CT6(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
