Product Details:
|
| Typical Application: | Liquid,Solid Powder | Measuring Range: | 5m |
|---|---|---|---|
| Frequency: | 500MHz-1.8GHz | Antenna Form: | Rod Type |
| Measurement Precision: | ±10mm | Process Temperature: | -40~250℃ |
| Shell Material: | Aluminum And Plastic | Process Pressure: | （-0.1~4.0）MPa |
| High Light: | Adhesion Resistant Guided Radar Level Transmitter,5m Guided Wave Level Transmitter,Rod Type Radar Gwr Level Transmitter |
||

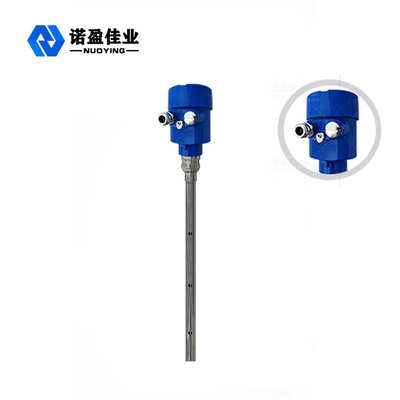

Resistant To Adhesion Guided Wave Radar Level Meter With High Measurement Precision
Working principle of Resistant To Adhesion Guided Wave Radar Level Meter With High Measurement Precision
The anti-corrosive and microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable or steel rod), and encounters the tested media. Due to the sudden change of the dielectric constant, it causes reflection, and a part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
Design features of of Resistant To Adhesion Guided Wave Radar Level Meter With High Measurement Precision
◎Guided wave radar object level meter attempts advanced microwave processing technology and unique Echo Discovery Echo processing technology, contaczting measurement, highly-accurated measurement, more focued measurement. Besides, which is guided wave radar is not affected by external application environment such as medium temperature and adhesion.
◎The 70-X series guided wave radar object level meter is suitable for versatile complicated working conditions and deversity applications due to the vers process connection modes and detection module types. For instance: high heating, highly-pressured and low dielectric constant medium.
◎Pulse working moder, low emission power, can be installed in a large variety of corrosive, non-metal containers and non stainless steel no harshness to human body and the surroundings around.
Technical parameter of Resistant To Adhesion Guided Wave Radar Level Meter With High Measurement Precision
| Typical application | Liquid |
| Solid (powder ) | |
| Product model | NYRD702 |
| Antenna form | rod type |
| Antenna material | 316 |
| Echo sampling | 55 times /s |
| Measuring range | 5m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -40~ +250 °C |
| Process pressure | -0.1~4.0MPa |
| Process connection | Thread, flange (optional) |
| Electrical interface | M20×1.5 , ½ " NPT |
| Protection grade | IP 68 |
| Explosion-proof grade | ExiaIICT6Ga, ExdIICT6Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
