Product Details:
|
| Application: | Liquids,dust,solids | Item No.: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | Integrated Ultrasonic Level Gauge,Ultrasonic Water Level Gauge,M20X1.5 Ultrasonic Level Transmitter |
||
Integrated Ultrasonic level gauge water level gauge
Description Integrated Ultrasonic level gauge water level gauge
Ultrasonic liquid level meter Level Measurement, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. Liquid level meter has perfect level monitoring, data transmission and man-machine communication.Ultrasonic level sensor is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe.
Ultrasonic level transmitter is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

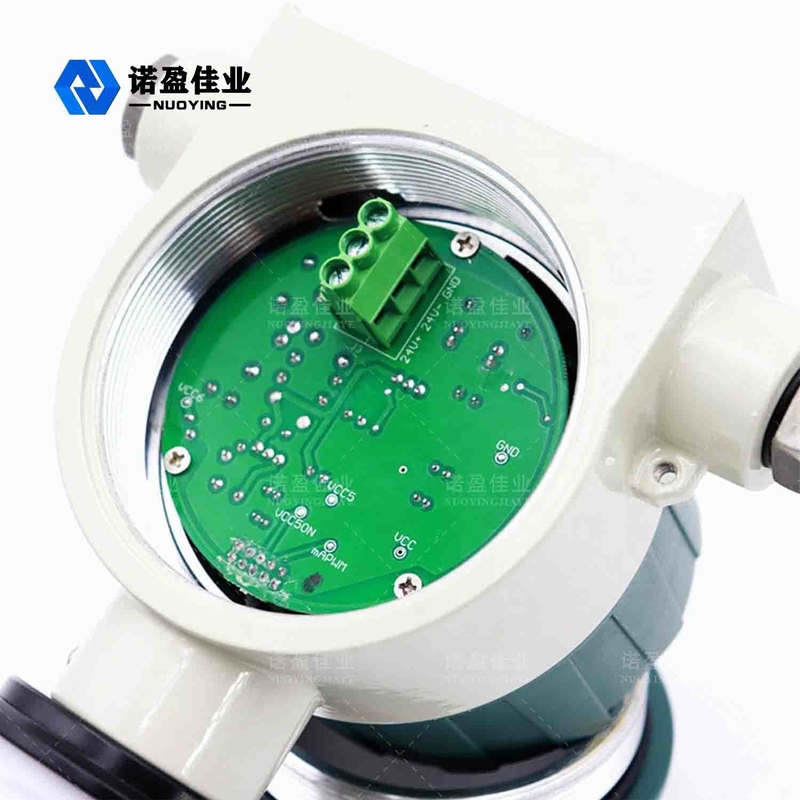

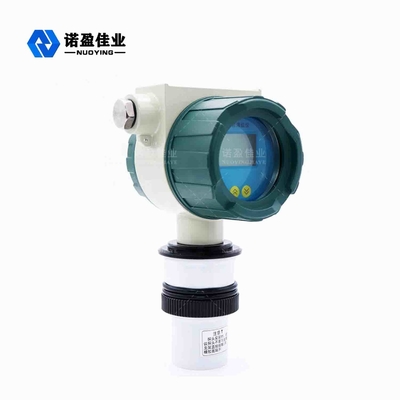

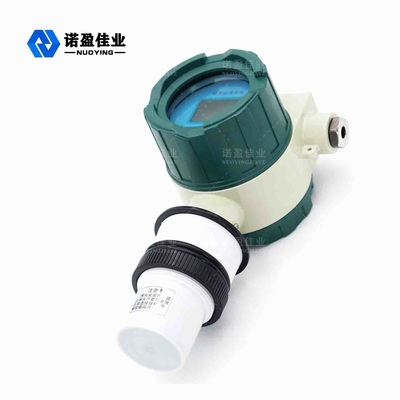

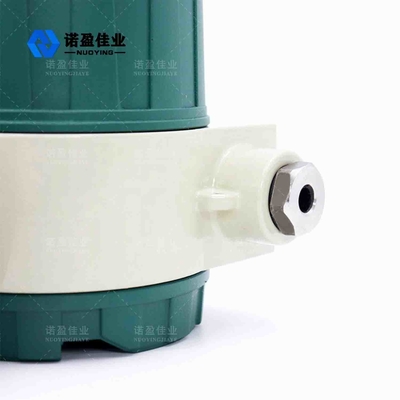

Detailed Images Integrated Ultrasonic level gauge water level gauge
Specification Integrated Ultrasonic level gauge water level gauge
| Range | 5,8,10,12,15m |
| Blind zone | <0.4-0.5m(different for range) |
| Measure error | 0.25%F.S |
| Display | LED or LCD |
| Display resolution | 1mm |
| Frequency | 20~350KHz |
| Power | 12-24VDC |
| Power consumption | <1.5W |
| Material | ABS |
| Dimension | Φ 92mm×198mm×M60 |
| Electrical interface | M20X1.5 |
| Installation | M60X2 or 61MM |
| Operating surroundings | normal temperature, normal pressure |
| Protection degree | IP65(others optional) |
| Output (optional) | 4~20mARL>600Ω (standard) or 1~5V1~10V or RS485 or 3 NPN or 2 relays (AC: 5A250V DC: 10A24V) |
Applications Integrated Ultrasonic level gauge water level gauge
1,Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
2,Electric power, mine industy
3,Food industry
Features Integrated Ultrasonic level gauge water level gauge
DC12-24V wide work voltage
Backup and recovery parameter set
Free adjustment of the range of analog output
Set a filter value to remove
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
Applications Integrated Ultrasonic level gauge water level gauge
1. Pharmaceutical manufacturing industry: level control of reaction liquid in the pipeline tank
2. Petroleum and chemical industry: level control of petroleum pipeline / liquid in tank
3. Food industry: Wine, beverage, milk production, storage tank/pipeline liquid level detection and monitoring
Dimension Integrated Ultrasonic level gauge water level gauge
