Product Details:
|
| Application: | Liquids,dust,solids | Item No.: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | Open Channel Ultrasonic Water Flow Meter,Fuel Ultrasonic Level Transmitter,Digital Ultrasonic Level Transmitter 40m |
||
Description Ultrasonic open channel digital water fule flow meter

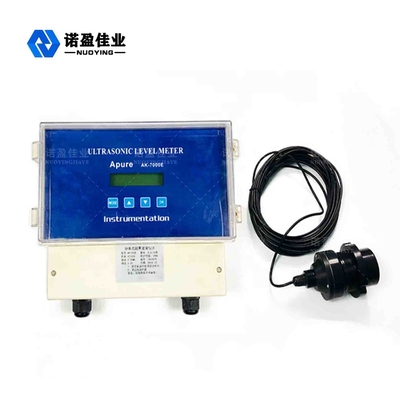

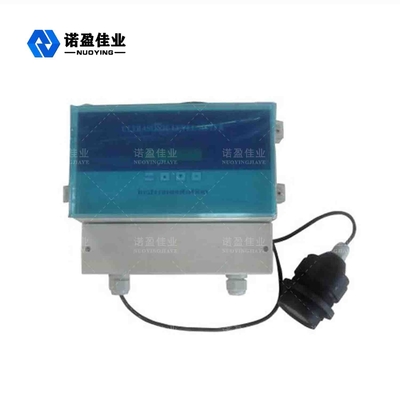

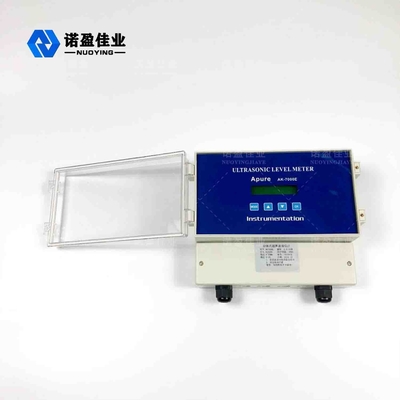

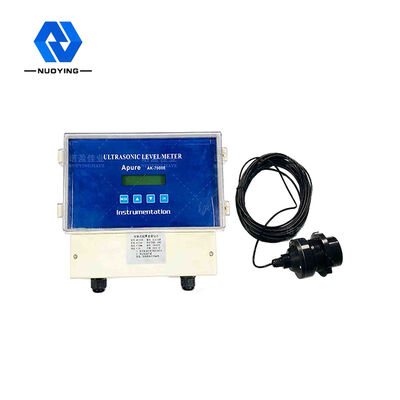

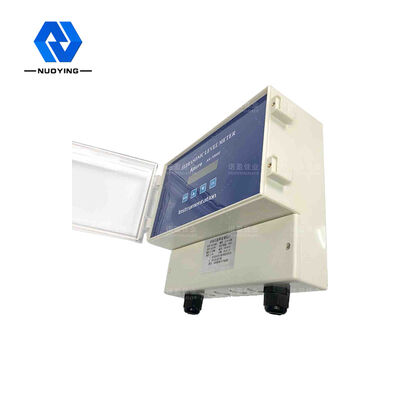

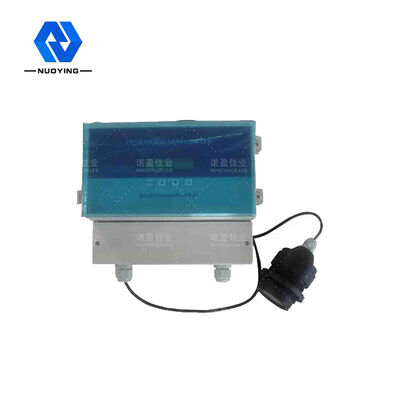

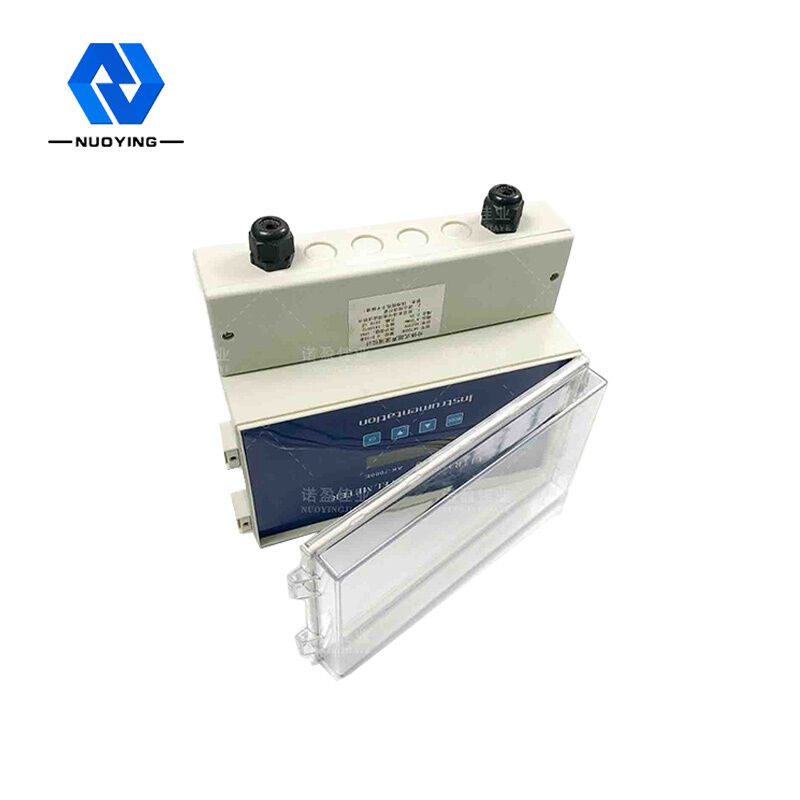

It consists of two elements, a host, which has display and an integral keypad for programming, and a transducer, which must be mounted directly above the surface to be measured. It can be widely applied to the environmental protection, water treatment, irrigation, chemical, and other industries.

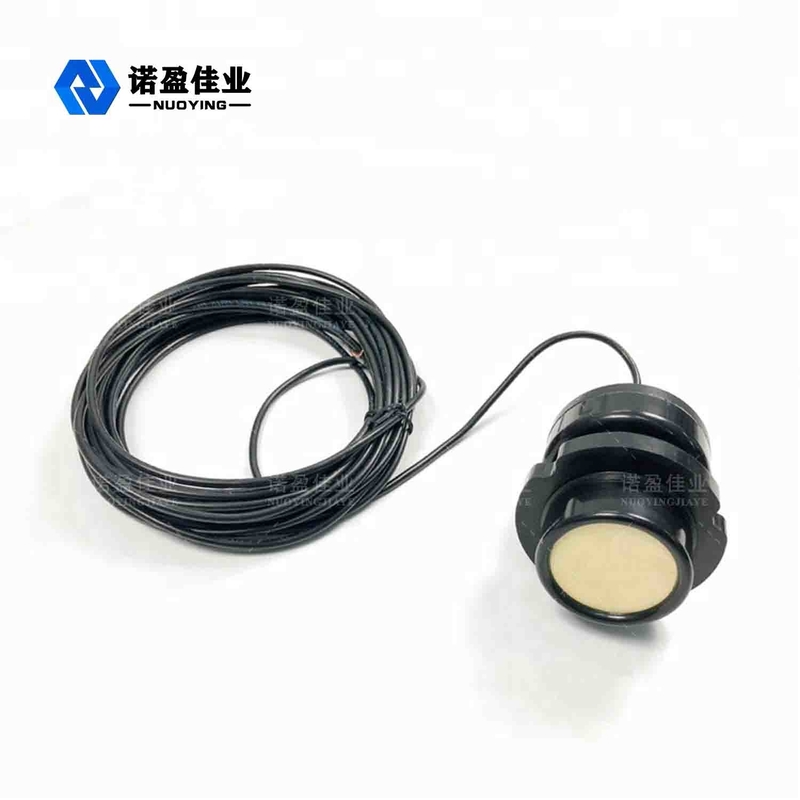

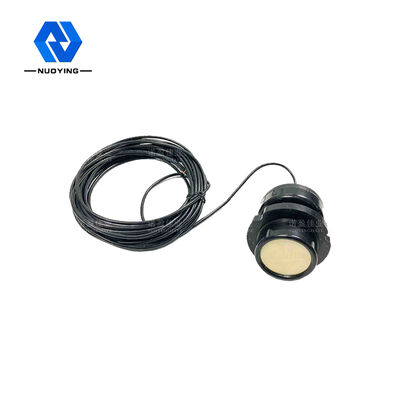

Detailed Images Ultrasonic open channel digital water fule flow meter
Specification Ultrasonic open channel digital water fule flow meter
| Sense Range | 3m; 5m; 8m; 10m; 12m; 15m; 20m; 25m; 30m |
| Blind Area | <0.3m-1.5m |
| Accuracy | ±0.3%F.S |
| Display | LCD |
| Resolution | 1mm |
| Keyboard | 16 key |
| Output |
4~20mA(standard); 0~20mA; 1~5V; 0~5V; 0-10V; 1-10V; RS485; HART 4 relays (Contact capacity AC:5A 250V DC:10A 120V) |
| Consumption | <8W |
| Material | ABS |
| Dsiplay Screen Dimension | 240mm×184mm×110mm |
| Sensor Size |
Dimension size as bellow pictures Φ41×100×Φ30 (for range:1 m); Φ55mm×119mm×G1 1/2 (for range:3 m); Φ74mm×135mm×M60 (for range:3~15 m)' Φ109mm×200mm×M30 (for range: 16~35 m) |
| Installation Size | G1 1/2(3m); M60x2 (5-15m); M30X1.5 (20-30m) |
| Sensor Cable | 10m (optional) |
| Operating Surroundings | normal temperature, normal pressure |
| Protection Degree |
IP53 for instrument IP65 for sensor (optional) |
Features Ultrasonic open channel digital water fule flow meter
Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter
Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.
Base on user's demand, it can attach flash disk, micro printer and storage battery.
Applications Ultrasonic open channel digital water fule flow meter
Electricity, mines, factories, urban sewage waterways, control systems and other related fields, such as: Sedimentation pool, Coal washing process, Wastewater treatment, etc.
Dimension Ultrasonic open channel digital water fule flow meter
