Product Details:
|
| Typical Application: | Liquid Level Measurement,etc. | Product Model: | NYCFQ-UL、NYCFQ-UK |
|---|---|---|---|
| Float Material: | F4、PP、304、PTFE(optional) | Rod Length: | 200~6000mm(Can Be Customized) |
| Ambient Temperature: | -40~+80℃ | Process Temperature: | -40~+130C |
| Process Pressure: | -0.1~2.0MPa | Process Connection: | Thread,flange(optional) |
| High Light: | Air Turbine Flow Meter 200mm,PTFE Turbine Flow Meter,Liquid Flow Meters 2.0MPa |
||
Description

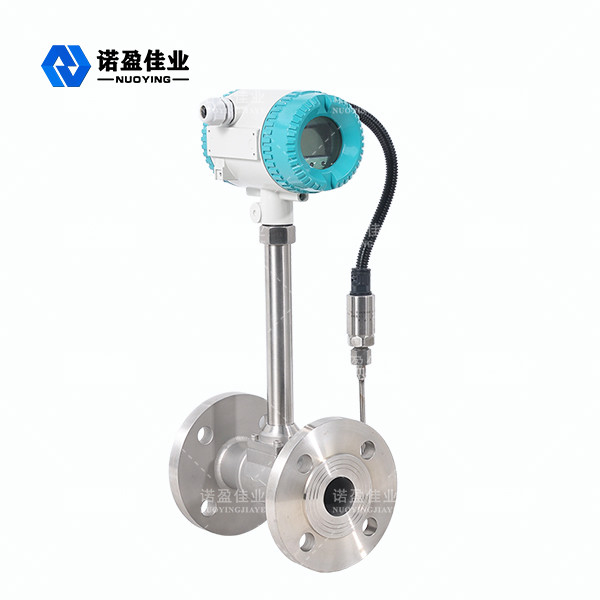

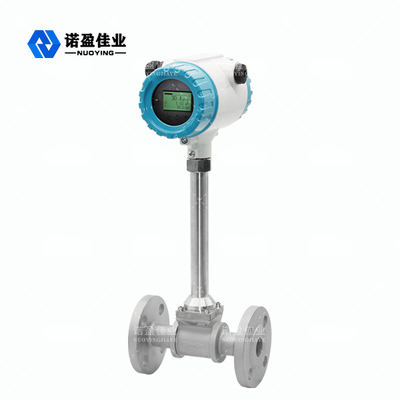

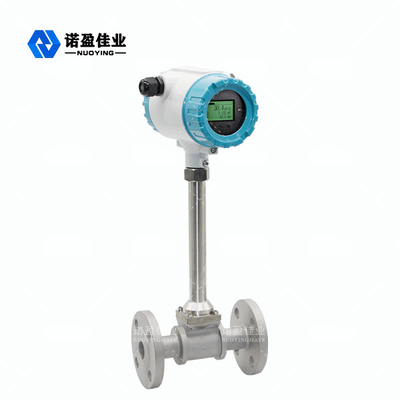

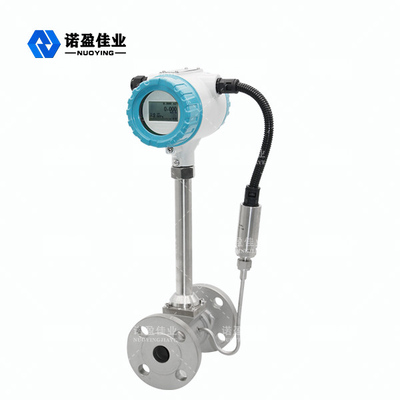

High Performance Air, Liquid/Water Turbine Flow Meter (DN50) uses advanced differential technology, with isolation, shielding, filtering and other measures to overcome the similar products, poor shock resistance, small signal data disorder and other issues, and the use of a unique sensor packaging technology and protective measures to ensure product reliability.
Specification
| High Performance Air, Liquid/Water Turbine Flow Meter | |||
| Nominal Pass(mm) | 15, 20, 25, 40, 50, 65, 80, 125, 150, 200, 250, 300 | ||
| Instrument Material | 1Cr18Ni9Ti | ||
| Nominal Pressure(Mpa) | PN1.6Mpa; PN2.5Mpa; PN4.0Mpa | ||
| Measured Medium Temperature | -40℃ ~ +250℃; -40℃ ~ +350℃ | ||
| Environmental Conditions | Temperature | Humidity | Atmospheric Pressure |
| -10℃ ~ +55℃ | 5% to 90% | 86 ~ 106Kpa | |
| Accuracy | Liquid: ±0.5 for Indication; Gas or Vapor: ±1.0,±1.5 | ||
| Range Ratio | 1:10; 1:15 | ||
| Output Signal | 4-20mA Or Pulse Optional | ||
| Power Supply | Sensors | Transmitters | Live Display Type |
| 12V DC/24V DC | 24V DC | Instrument Comes With 3.2V Lithium Battery | |
| Installation Method | Flange Clamping or Integrated Flange Connection | ||
| Explosion-proof Grade | ExdllBT6 | ||
| Protection Grade | IP65 | ||
| High Performance Air, Liquid/Water Turbine Flow Meter | ||
| Flow Range | ||
| Caliber(mm) | Liquid Range(M3/H) | Gas Range(M3/H) |
| DN15 | 1.2-6.2 | 5-25 |
| DN20 | 1.5-10 | 8-50 |
| DN25 | 1.6-16 | 10-70 |
| DN32 | 1.9-19 | 15-150 |
| DN40 | 2.5-26 | 22-220 |
| DN50 | 3.5-38 | 36-320 |
| DN65 | 6.2-65 | 50-480 |
| DN80 | 10-100 | 70-640 |
| DN100 | 15-150 | 130-1100 |
| DN125 | 25-250 | 200-1700 |
| DN150 | 36-380 | 280-2240 |
| DN200 | 62-650 | 580-4960 |
| DN250 | 140-1400 | 970-8000 |
| DN300 | 200-2000 | 1380-11000 |
Features
· No moving parts, long-term stability, simple structure and easy to install and maintain
· Using the noise circuit and anti-vibration sensor head, with a certain anti-environmental vibration performance
· Using ultra low power single chip microcomputer technology, one pc 3.2V10AH lithium battery with more than 5 years service life
· The instrument coefficient of non-linear correction by software, improve the measurement accuracy
· Small pressure loss, wide measuring range
· Using EEPROM to the cumulative flow of power down protection, protection for more than 10 years
Applications
The 4-20mA output flow meter is a volumetric flowmeter that can measure the volumetric flow of gas, steam or liquid, volumetric flow or mass flow.And can be used as a flow transmitter in the automated control system.
♦ Remarks: Products can be customized according to your specific requirements!
