Product Details:
|
| Model Number: | NYLU-JB | Power Supply: | 12~24VDC |
|---|---|---|---|
| Accuracy Class: | 1.0,1.5 | Nominal Pressure: | 1.6MPa |
| Pressure Loss: | Drag Coefficient Cd≤2.4 | Explosion-proof Grade: | See Certificate For Details |
| Medium Temperature: | -40~350°C | Output Signal: | Standard Current Signal 4~20mA |
| High Light: | 20mA Digital Liquid Flow Meters,Vortex Liquid Flow Meters,1.6MPa Liquid Turbine Flow Meter |
||
Low Cost Vortex Digital 4-20mA Output Liquid Flow Meters
Description
This 4-20mA output flow meter uses advanced differential technology, with isolation, shielding, filtering and other measures to overcome the similar products, poor shock resistance, small signal data disorder and other issues, and the use of a unique sensor packaging technology and protective measures to ensure product reliability .

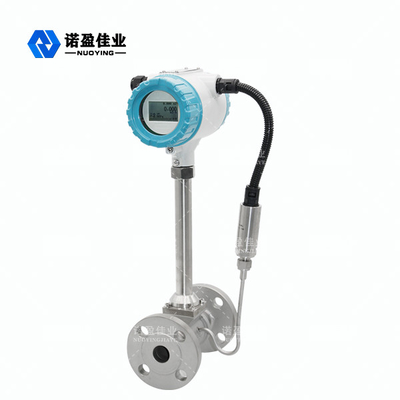

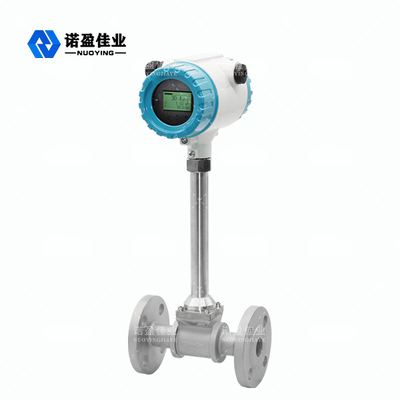

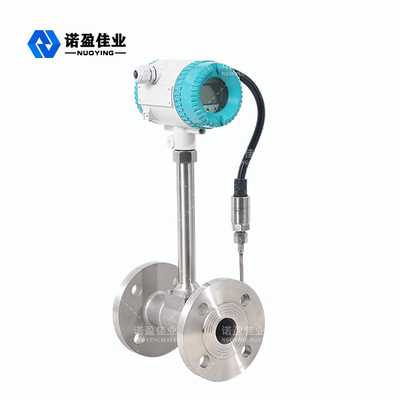

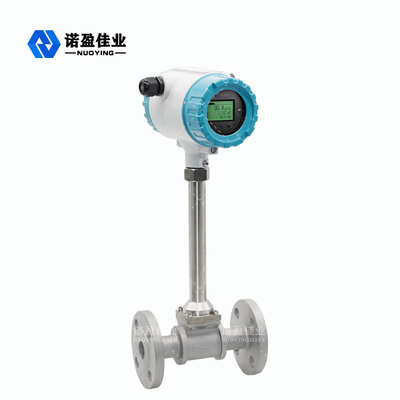

Detailed Images
Specification
| Low Cost Vortex Digital 4-20mA Output Liquid Flow Meters | |||
| Nominal Pass(mm) | 15, 20, 25, 40, 50, 65, 80, 125, 150, 200, 250, 300 | ||
| Instrument Material | 1Cr18Ni9Ti | ||
| Nominal Pressure(Mpa) | PN1.6Mpa; PN2.5Mpa; PN4.0Mpa | ||
| Measured Medium Temperature | -40℃ ~ +250℃; -40℃ ~ +350℃ | ||
| Environmental Conditions | Temperature | Humidity | Atmospheric Pressure |
| -10℃ ~ +55℃ | 5% to 90% | 86 ~ 106Kpa | |
| Accuracy | Liquid: ±0.5 for Indication; Gas or Vapor: ±1.0,±1.5 | ||
| Range Ratio | 1:10; 1:15 | ||
| Output Signal | 4-20mA Or Pulse Optional | ||
| Power Supply | Sensors | Transmitters | Live Display Type |
| 12V DC/24V DC | 24V DC | Instrument Comes With 3.2V Lithium Battery | |
| Installation Method | Flange Clamping or Integrated Flange Connection | ||
| Explosion-proof Grade | ExdllBT6 | ||
| Protection Grade | IP65 | ||
| Low Cost Vortex Digital 4-20mA Output Liquid Flow Meters | ||
| Flow Range | ||
| Caliber(mm) | Liquid Range(M3/H) | Gas Range(M3/H) |
| DN15 | 1.2-6.2 | 5-25 |
| DN20 | 1.5-10 | 8-50 |
| DN25 | 1.6-16 | 10-70 |
| DN32 | 1.9-19 | 15-150 |
| DN40 | 2.5-26 | 22-220 |
| DN50 | 3.5-38 | 36-320 |
| DN65 | 6.2-65 | 50-480 |
| DN80 | 10-100 | 70-640 |
| DN100 | 15-150 | 130-1100 |
| DN125 | 25-250 | 200-1700 |
| DN150 | 36-380 | 280-2240 |
| DN200 | 62-650 | 580-4960 |
| DN250 | 140-1400 | 970-8000 |
| DN300 | 200-2000 | 1380-11000 |
Features
· No moving parts, long-term stability, simple structure and easy to install and maintain
· Using the noise circuit and anti-vibration sensor head, with a certain anti-environmental vibration performance
· Using ultra low power single chip microcomputer technology, one pc 3.2V10AH lithium battery with more than 5 years service life
· The instrument coefficient of non-linear correction by software, improve the measurement accuracy
· Small pressure loss, wide measuring range
· Using EEPROM to the cumulative flow of power down protection, protection for more than 10 years
Applications
The 4-20mA output flow meter is a volumetric flowmeter that can measure the volumetric flow of gas, steam or liquid, volumetric flow or mass flow.And can be used as a flow transmitter in the automated control system.
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Turbine Flow Meter Discription
The NYLU-JB vortex flow meter is researched and produced according to the principle of Karman vortex flow, and is mainly used for flow measurement of medium fluids in industrial pipelines, such as gas, liquid, steam and other media. It is characterized by small pressure loss, large measuring range, high precision, and is almost not affected by parameters such as fluid density, pressure, temperature, viscosity, etc. when measuring the volume flow of the working condition. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be stable for a long time. The vortex flow meter adopts piezoelectric stress sensor, which has high reliability and can work in the working temperature range of -20℃~+250℃. There are analog standard signals and digital pulse signal output, which is easy to be used with digital systems such as computers. It is a relatively advanced and ideal measuring instrument.
◎The measurement accuracy is high, the reliability is high, and no on-site debugging is required.
◎It can transmit traffic signals over long distances, and can be networked with computers to achieve centralized management.
◎The amplifying board adopts a unique design, which can be used for both gas and liquid.
◎There are analog standard signals and digital pulse signal outputs, which are easy to use with digital systems such as computers.
◎Explosion-proof instruments can be used in corresponding explosion-proof places.
◎Customized design and production according to customer requirements.
Turbine Flow Meter Technical Parameter
| Power supply | 12~24VDC |
| Nominal pressure | 1.6MPa,2.5MPa,4.0MPa and above |
| Accuracy class | 1.0,1.5 |
| Medium temperature | -40~350°C |
| Pressure loss | Drag coefficient cd≤2.4 |
| Output signal | Voltage pulse low level≤IV high level≥6V. Standard current signal 4~20mA |
| Explosion-proof grade | ExiaIICT6Ga (see certificate for details) |
