Product Details:
|
| Probe Type: | Split | Probe Material: | PP/PVC/PTFE/304(optional) |
|---|---|---|---|
| Measuring Range: | 0-20m | Measurement Accuracy: | ＜0.25%(Range＜20m) |
| Measuring Angle: | 10° | Process Temperature: | -20～+80℃ |
| Process Pressure: | Normal Pressure | Display Mode: | Liquid Level, Distance (empty Height) |
| High Light: | NYCSUL-502 Ultrasonic Level Transmitter,Split Ultrasonic Level Switch 24VDC,Ultrasonic Liquid Level Transmitter |
||

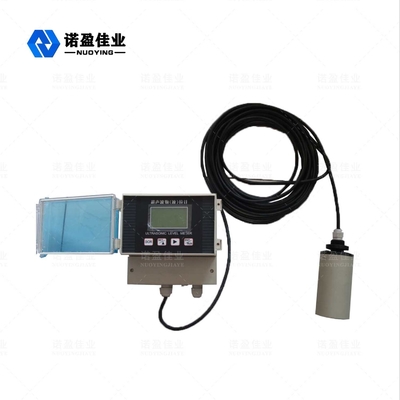

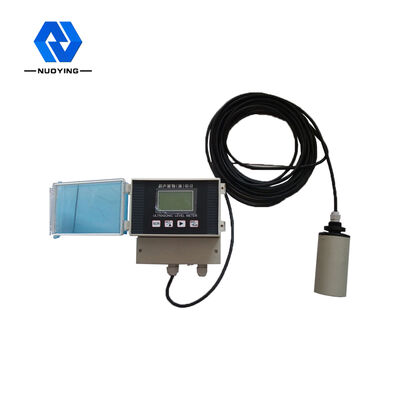

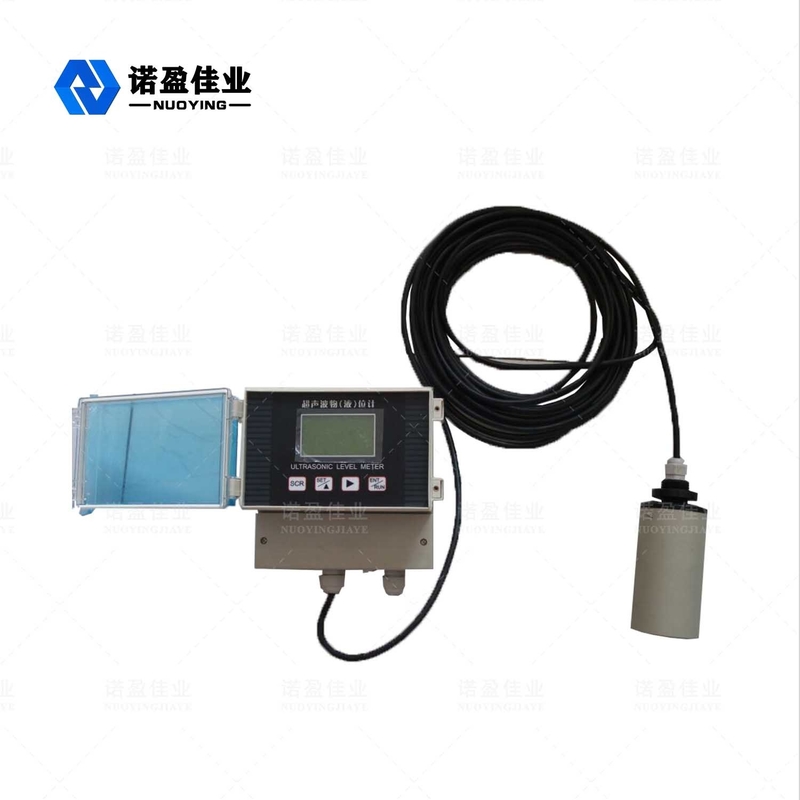

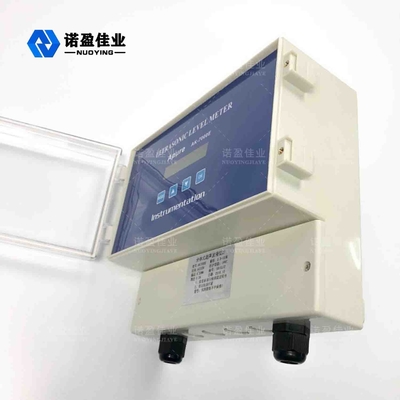

Split 24VDC NYCSUK-502 Liquid Ultrasonic Level Switch Connected with Thread
NYSCSUK-502 Ultrasonic Level Switch Working Principle

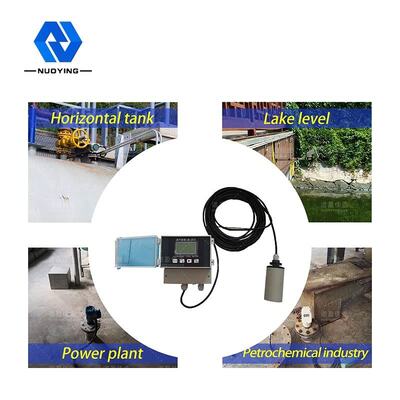

Fuels, lubricants, chemicals, pesticides, and some specific aqueous solutions in industrial production or transportation trade systems are transferred by storage tanks, so it is essential to hold environmental information (position, temperature, liquid level, pressure, etc.) of the tanks in the whole system. The ultrasonic level switch is installed on the top of the container. Under the control of the electronic unit, the probe sends a beam of ultrasonic pulse to the measured object. The sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal.
NYSCSUK-502 Ultrasonic Level Switch Design Feature

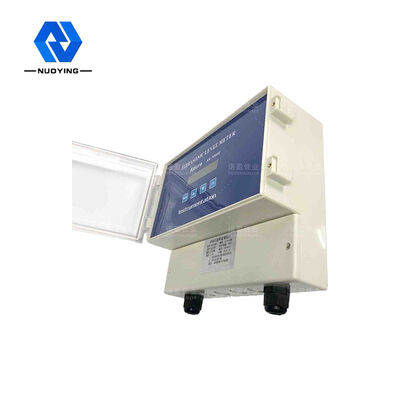

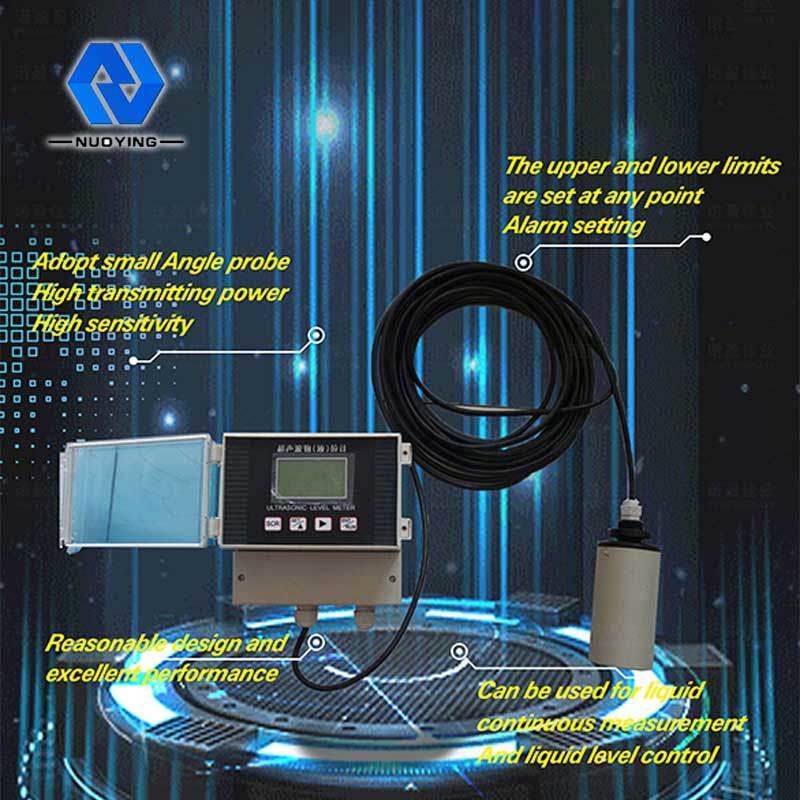

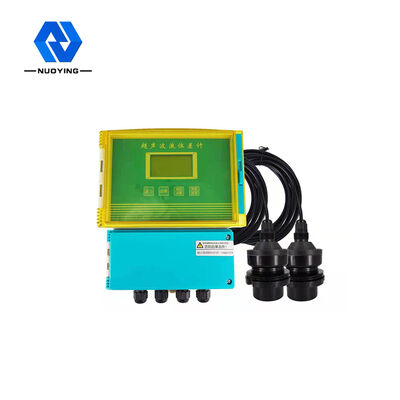

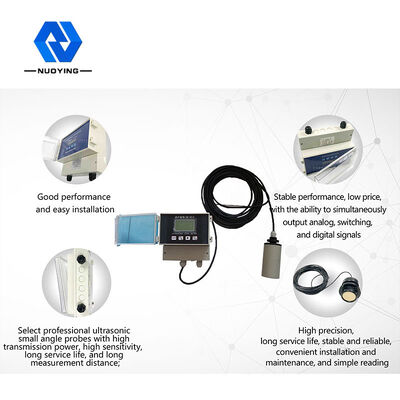

1. Reasonable design, excellent performance, simple structure and convenient installation.
2. The ultrasonic adopts a small angle probe, which has high transmission power and sensitivity.
3. Stainless steel 316L housing and Teflon® jacketed cable.
4. High corrosion resistance and hermetically-sealed structure, IP68.
NYSCSUK-502 Ultrasonic Level Switch Technical Parameters
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| Probe Material | PP/PVC/PTFE/304(optional) |
| Measuring range | 0～20m |
| Measurement accuracy | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 24VDC,220VAC |
| Process temperature | -20～+80℃ |
| Process pressure | Normal pressure |
| Process connection | Thread, Flange, Bracket mounting (optional) |
| Signal output | 4...20mA/HART/RS485... |
| Display mode | Liquid level, distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene/Aluminum |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga |
