Product Details:
|
| Typical Application: | Liquid | Product Model: | NYCSUL-501 |
|---|---|---|---|
| Installation Method: | Thread,Bracket,Flange | Measuring Range: | 20m, 40m |
| Measurement Accuracy: | <0.25%(20m), <0.5%(40m) | Process Temperature: | -20 ~ +70°C |
| Process Pressure: | -0.1~+0.1Mpa | Signal Output: | 4-20 MA /HART/RS485/Modbus |
| High Light: | 40m Thread Ultrasonic Level Meter,Liquid Ultrasonic Level Meter,Ultrasonic Level Liquid Meter Two Wire |
||
Simple Structure Ultrasonic Liquid Level Meter For Various Liquid level Measurement Applications
High Power And Small Angle Ultrasonic Liquid Level Meter High Sensitivity Operating Principle
NYCSUL two-wire ultrasonic liquid level meter is an intelligent non-contact liquid level measuring instrument. This product can automatically adjust emitting power, control transmission gain and compensate temperature value. It adopts advanced detection and calculation technology to suppress interference signal, thus improving the measurement accuracy of the instrument and ensuring the authenticity of the measurement results fundamentally . This product is used for level measurement of various liquids and distance measurement.
The ultrasonic level gauge is installed on the top of the container. Under the control of the electronic unit, the probe sends a beam of ultrasonic pulse to the object to be measured. The acoustic wave is reflected by the object surface. Part of the reflected echo is received by the probe and converted into electrical signals. The level change is determined according to the time difference and sound velocity of the ultrasonic wave from transmission to re reception. The microwave signal is processed by the electronic device and finally converted into electrical signals related to the level.
Ultrasonic Liquid Level Meter Design Feature
★ Reasonable design, excellent performance, simple structure, convenient installation, etc

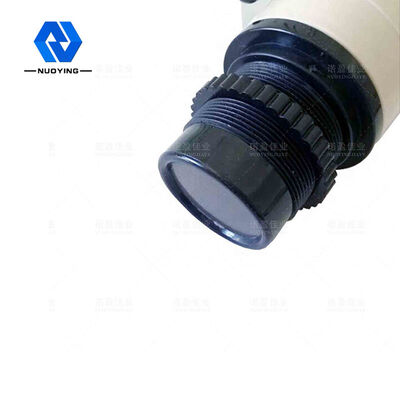

★ Small angle probe is used for ultrasonic wave, with high transmitting power and high sensitivity
★ The upper and lower limit setting and alarm setting at any point, used for continuous liquid measurement and liquid level control
Ultrasonic Liquid Level Meter Technical Parameter
| Typical Application | Liquid (No stirring, No Foam, No Volatilization |
| Product Model | NYCSUL-501,NYCSUL-502,NYCSUL-503 |
| Antenna Type | Integarted, Split, AntiCorrosive, Anti Explosive Type |
| Antenna Material | PP, PVC, PTFE, 204 |
| Measuring Range | 20m, 40m |
| Measuring Accuracy | <0.25%(20m), <0.5%(40m) |
| Process Temperature | -20 ~ +70°C |
| Process Pressure | -0.1 ~ +0.1MPa |
| Process Connection | Thread, Flange |
| Setting Mode | Upper and Lower Limit |
| Supply Power | 24VDC |
| Signal Output | 4-20 mA /HART/RS485/Modbus |
| Protection Grade | IP65 |
| Explosion-proof Grade | Exia II CT6 Ga (details in certificate) |
