Product Details:
|
| Typical Application: | Specially For Stronge Corrosive Liquid | Product Model: | NYWBUK |
|---|---|---|---|
| Installation Method: | G1 ½ Thread (optional) | Measuring Range: | 120m (customized According To Requirements) |
| Supply Power: | 24VDC, 220VAC (optional) | Process Temperature: | - 40~+80 ℃ Process Temperature: - 40~+1200 ℃ |
| Process Pressure: | - 0.1~2.5MPa | Sensitivity: | Level 0~15 |
| High Light: | Anti Interference Microwave Level Switch,Microwave Level Switch 120m,Microwave Ultrasonic Level Transmitter |
||
High Stability Microwave Level Switch Strong Anti-Interference Ability Applications
Simple structure and convenient installation Microwave Level Switch High Sensitivity Operating Principle

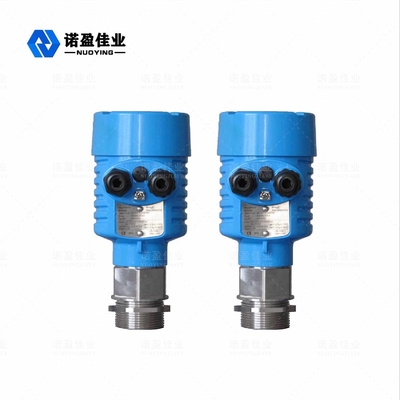

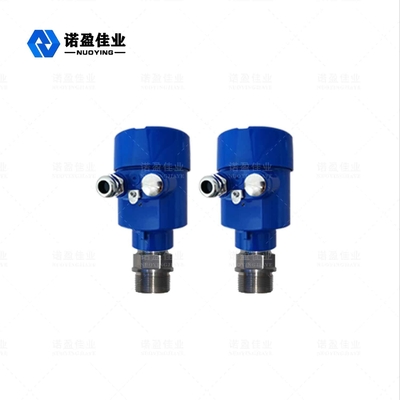

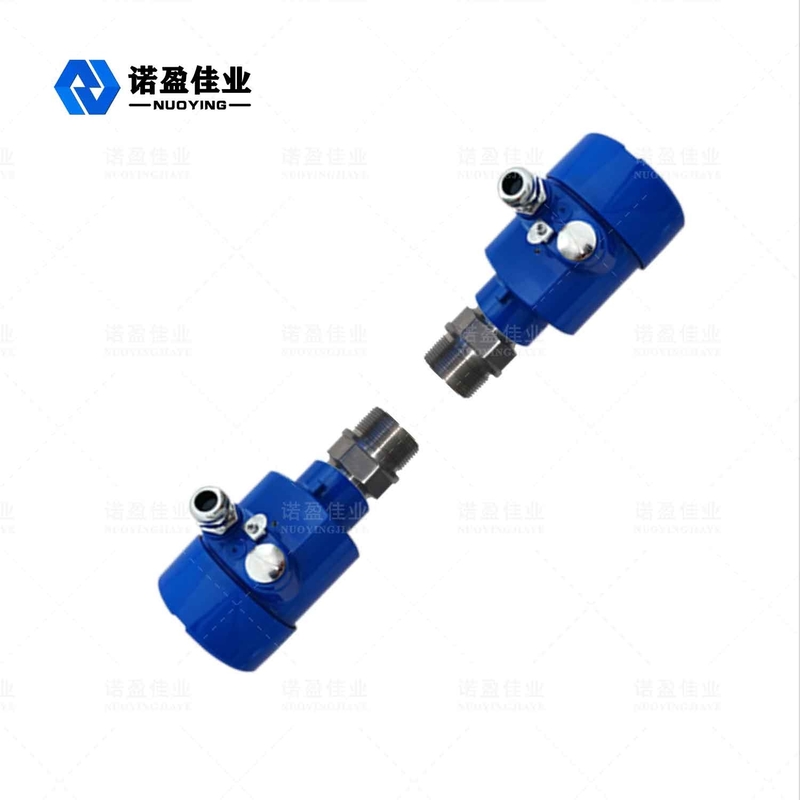

NYWBUK series microwave level switch is a level detection switch based on the principle of extremely narrow pulse microwav detection. Microwave level switch can measure solid material level. It is designed by microwave emission and reception in pairs. So the microwave level switch is a paired instrument. One part is the sending end, which is responsible for sending microwave signals; the other part is the receiving end, which is responsible for collecting and outputting microwave signals. The instruments are installed in pairs at the position to be monitored. When there is no material blockage at the monitoring position, the receiving end outputs a "no material" signal; When the monitoring position is blocked, the receiving end outputs a "blocked" signal. The status of output signal can be set as high level alarm and low level alarm on site.
Microwave Level Switch Design Feature
★ High stability, strong anti-interference ability, intelligent adaptive power supply design
★ The modular design concept is adopted, and the function indicator light is equipped, which can easily and concisely realize the setting and maintenance of the instrument on site
★ Simple structure and convenient installation
Microwave Level Switch Technical Parameter
| Typical Application | solid powder/particle |
| Product Model | NYWBUK |
| Measuring Range | 120m (customized according to requirements) |
| Process Temperature | - 40~+80 ℃ Process temperature: - 40~+1200 ℃ |
| Process Pressure | - 0.1~2.5MPa |
| Process Connection | G1 ½ Thread (optional) |
| Time delay | 0.5~30s |
| Supply Power | 24VDC, 220VAC (optional) |
| Sensitivity | level 0~15 |
| Protection Grade | IP67 |
| Explosion-proof Grade | Exia II CT6 Ga (details in certificate) |
Microwave Level Switch Product Applications
Flow/stop detection
Track/truck overload detection
Chute blockage detection
Crane anti-collision detection
Low level detection
High level detection
The gas or viscous material in the feed pipe is blocked
Material level detection with and without material 10.525GHz transmitter receiver
Conveyor belt article detection
other......
