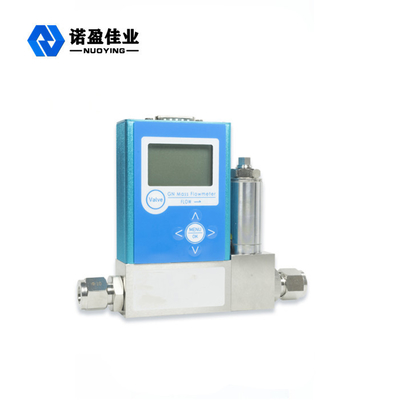

NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter

NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter

NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter

Brand Name: NUOYINGJIAYE
Model Number: NY-M030
MOQ: 1 pcs
Price: $450 to $1700 /pcs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month
Detail Information
Product Description
Detail Information
Place of Origin:
Xi'an, Shaanxi，China
Certification:
ExdⅡCT6/ExmbⅡCT6
Medium:
Corrosive, Clean, Dry Gas
Range:
300-3000SLPM
Accuracy:
±1％of Full Scale
Response Time:
Better Than 3s
Preheating Time:
＜15min
Calibration Conditons:
0℃&101325Pa
Operating Temperature:
5 To 55℃
Maxmium Working Pressure:
3 MPaG
Packaging Details:
Carton, 60cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

NY-M030 Mass Flow Meter

,

Nitrogen Oxygen Flowmeter

,

Air Mass Flow Meter 3000 SLPM

Product Description

NY-M030 Series mass flow meter air nitrogen oxygen flowmeter better than 3s​

Products Description
Description of NY-M030 Series mass flow meter air nitrogen oxygen flow meter:
NY-M030 series mass flowmeters are designed for applications where manifold flow measurements. The standard flow channels are 3mm and 8mm indiameter,respectively.Plastic finishing with an easy change of the mechanical adaptors enables applications at a low cost and different environments.The meters can be used for process gas control,environmental samples and many other industrial applications.
NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter 0
Product Feature
·Features of NY-M030 Series mass flow meter air nitrogen oxygen flow meter:

Designed for low gas flow in fixed flow channel of 3 mm and 8 mm,with accumulated flow

Compact design ready for manifold application
assembly

Fast response time for provides solutions for critical applications

Excellent for electronic meters in anesthesia equipment

Exchangeable mechanical connectors for easy installation at different applications

Intrinsic enclosure use for wide application

Low power consumption, can be operated by battery

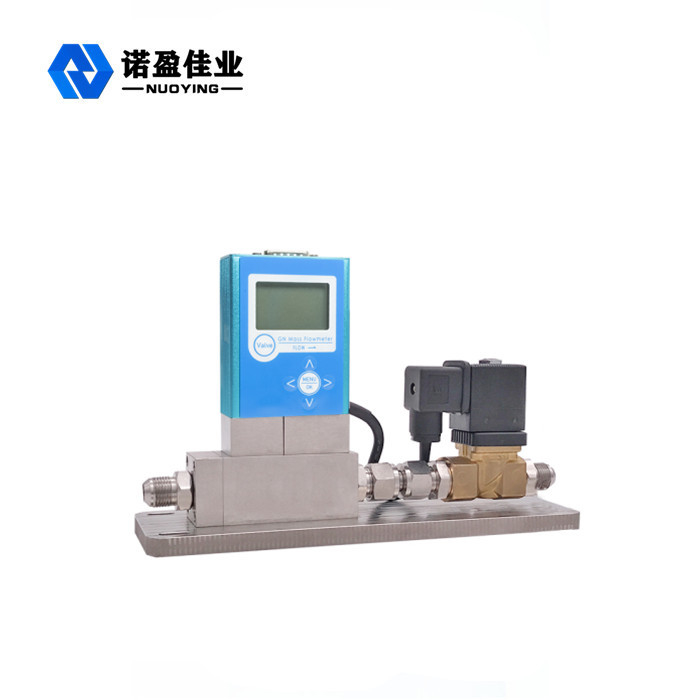

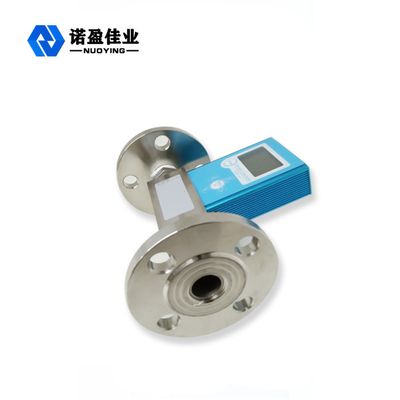

Details Images
NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter 1
NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter 2
NY-M030 Series Mass Flow Meter Air Nitrogen Oxygen Flowmeter 3
Product Paramenters
Model
NY-M030
MF4008
Unit
DN
3
8
mm
Flow rate Range
0 ~ 2, 3, 4, 5 0 ~ 10, 20, 30, 40, 50
SLPM
Turn-down
＞100:1

Accuracy
± (1.5 + 0.2 FS)
%
Repeatability
0.25
%
Null Shift
± 30
mV
output Shift
± 0.12
% /ºC
Response Time
10 (default, 10, 20, 50, 200, 500, 1000 selectable)
msec
Power Supply
8 ~ 24 Vdc, 50 mA

Output
Linear: Analog 0.5 ~ 4.5 Vdc; RS232, RS485

Display
4 - digit, 7 - segment LED; 2 status LED

Units
1nstant flowrate: SLPM; Flow accumulation: SL

Display Resolution
0.001, 0.01, 0.1 selectable 0.01, 0.1 selectable
SLPM
Pressure Drop
100
600
pa
Working Temperature

℃
Max. Pressure
0.5
0.5
Storage Teperature
-20 to +55
℃
Humidity
< 95%RH (No icing or condensation)

Mechanical Connection
BSPT 1/4 (R 1/4), 4 mm / 6 mm / 8 mm one - touch BSPT 1/4 (R 1/4)

Keyboard
3 Keys

Pins out
5 Pins, NS-TECH CD R-5

Calibration
Air @ 20 ºC, 101.325 kPa

Weight
55(with BSPT 1/4 (R 1/4)), 74(with 4 mm / 8 mm one-touch), 71(with 6 mm one-touch)
