Product Details:
|
| Measuring Range: | 0~20m（integrated） | Process Pressure: | -0.1~0.1MPa |
|---|---|---|---|
| Process Connection: | Flange | Signal Output: | 4...20 MA |
| Display Mode: | Liquid Level(air Height) | Set Output: | Upper And Lower Limit Setting |
| Levels Of Protection: | IP65、IP67、IP68(optional） | Explosion-proof Grade: | Exia II CT6 Ga |
| High Light: | Flange Ultrasonic Level Sensor,Large Transmission Power Ultrasonic Level Gauge |
||

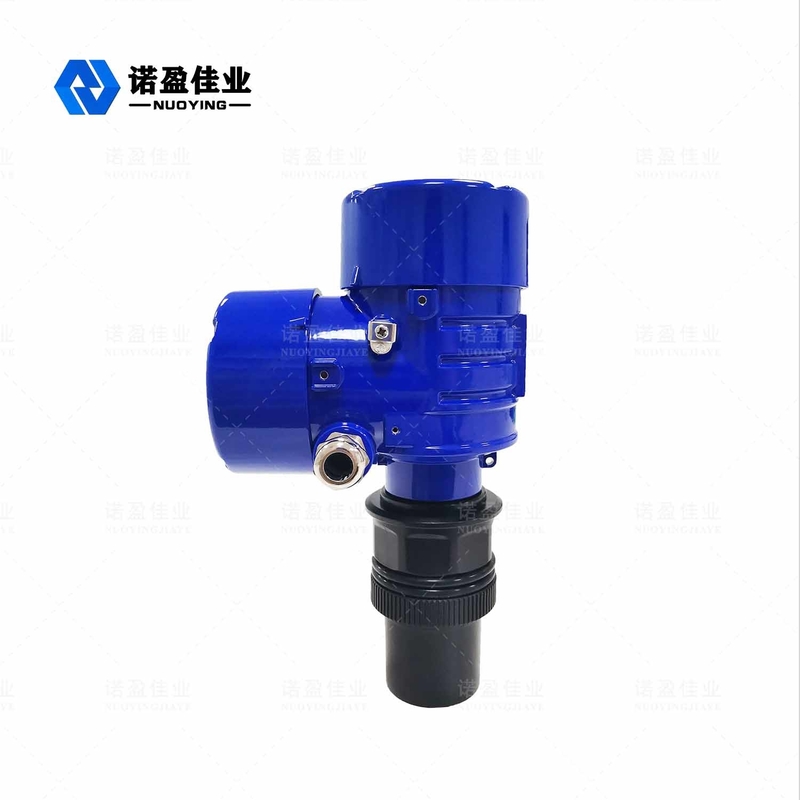

Flange Ultrasonic Level Gauge With Large Transmission Power
Working Principle of Flange Ultrasonic Level Gauge With Large Transmission Power
The ultrasonic level gauge is installed on the top of the container. Under the control of the electronic unit, the probe emits a beam of ultrasonic pulses to the object to be measured. The sound wave is reflected by the surface of the object, and some of the reflected echoes are received by the probe and converted into electrical signals. The time difference to being re-received and the known speed of sound are used to determine the change of the material level. The microwave signal is processed by the electronic device and finally converted into an electrical signal related to the material level.
Design feature of Flange Ultrasonic Level Gauge With Large Transmission Power

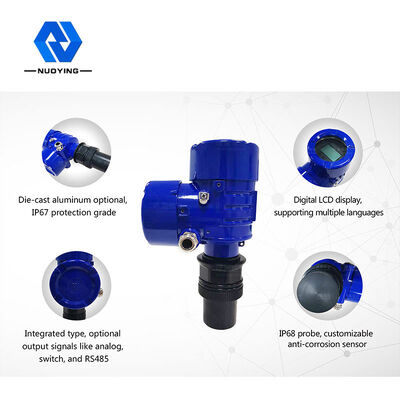

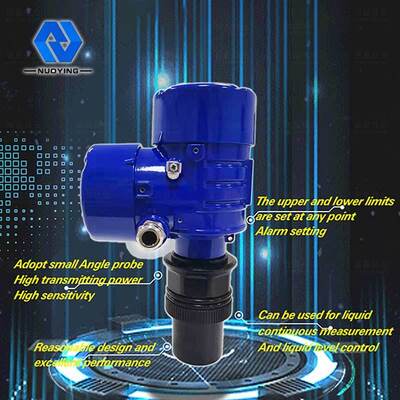

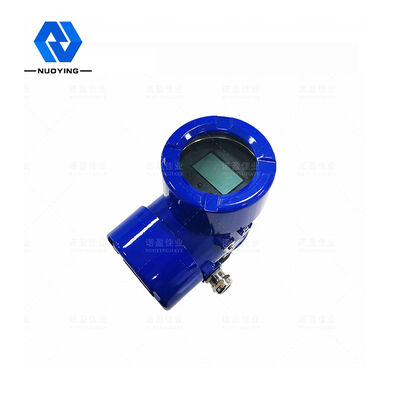

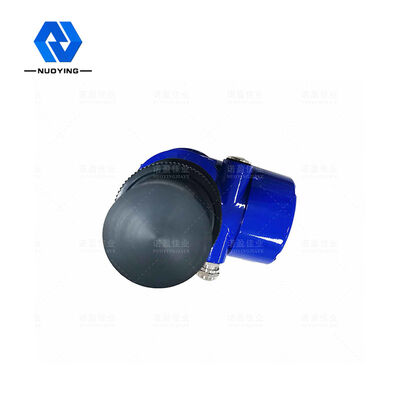

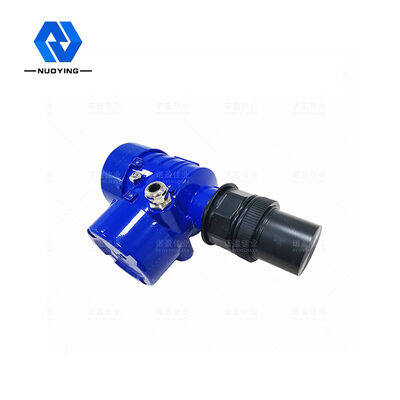

◎ small angle probe is adopted for ultrasonic wave, with large transmission power and high sensitivity
◎ upper and lower limit setting and alarm setting at any point, can be used for continuous liquid measurement and liquid level control
◎ reasonable design, excellent performance, simple structure, convenient installation, etc
Technical parameters of Flange Ultrasonic Level Gauge With Large Transmission Power

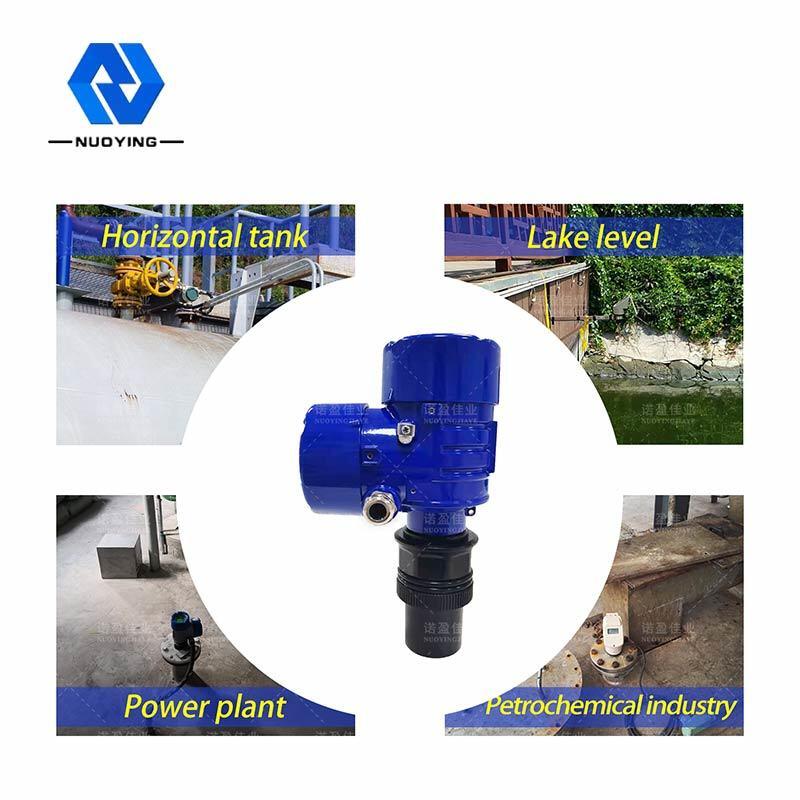

| Typical application | Liquid (no stirring, foam, volatilization, etc.) |
| Product models | NYCSUL-502 |
| The probe type |
Integrated, split |
| The antenna material | PP, PVC, 304 |
| Measuring range | 0~ 20M ( integrated ), 0~40m ( separate ), |
| Accuracy of measurement | <0.25% (range < 20 m), <0.5% (range > 20 m) |
| The process temperature | 3M, 20M |
| Accuracy of measurement | 0.05% ~ 0.1% F. S |
| The process temperature | -20~ +70C |
| Process pressure | -0.1 ~ 0.1 MPa, (atmospheric pressure) |
| Electrical Interface | M20×1.5,½"NPT |
| Protection class | IP65, IP67, IP68 (optional) |
| Process connection | Flange |
| Display mode | Liquid level, distance (air height ) |
| Set the output | Upper limit setting, lower limit setting |
| Signal output | 4... 20mA/ HART/ RS485/Modbus. . . |
| Protection grade | IP65, IP67, IP68(Optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
