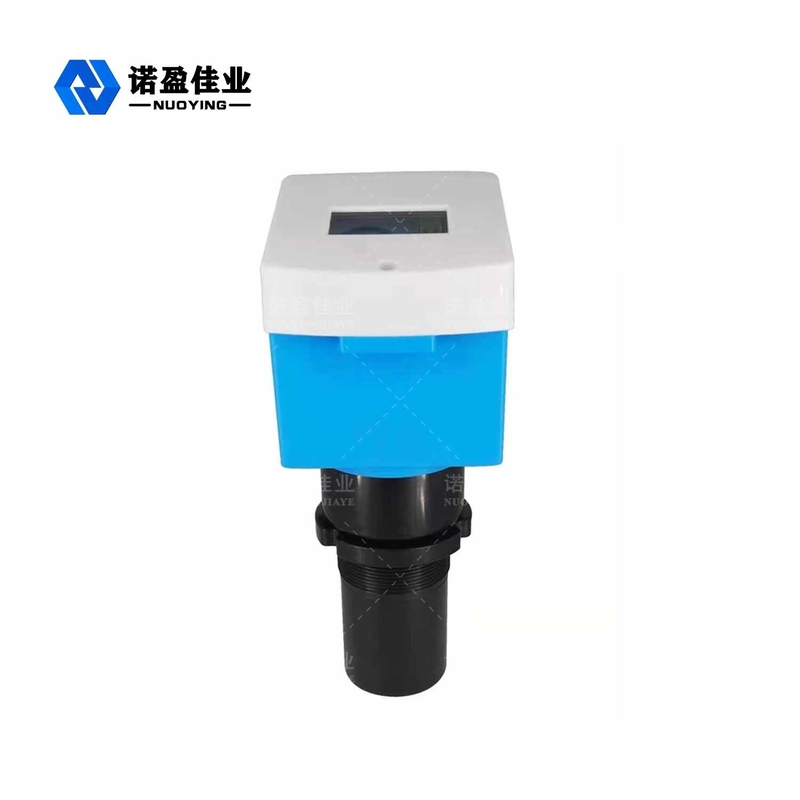

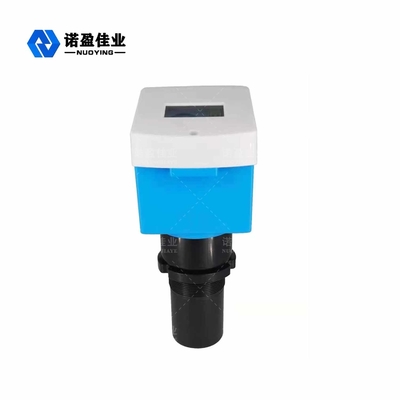

High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting

High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting
High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting

Large Image :  High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYCSUL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $450~$1700/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

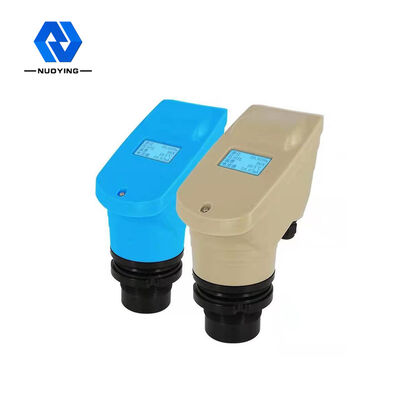

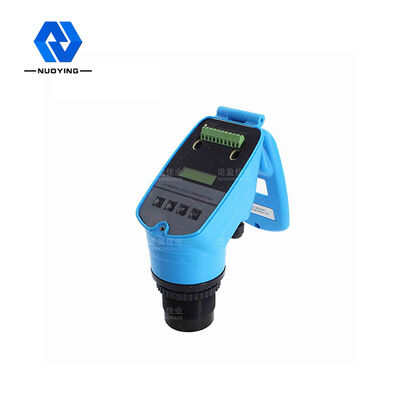

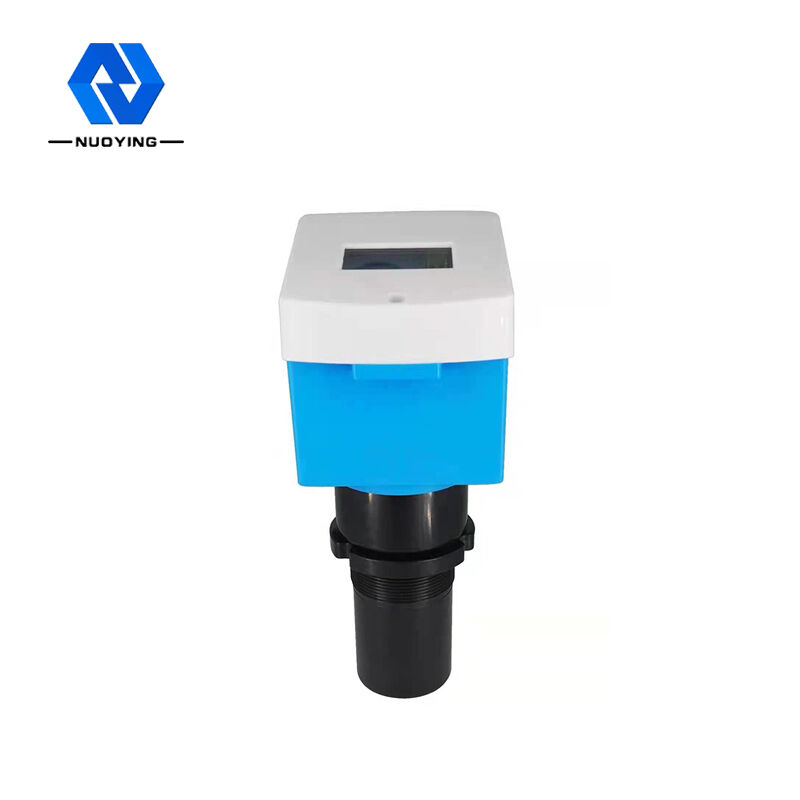

High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting

Description
Typical Application: Liquid (no Stirring.) Product Models: NYCSUL-503
The Probe Type: Body, Split Body, Explosion-proof, Anti-corrosion, Anti-corrosion The Antenna Form Material: PP, PVC, PTFE
Accuracy Of Measurement: <0.25% (range <20 M), Process Pressure: -0.1 ~=0.1 MPa(atmospheric Pressure)
Process Connection: Flange Explosion-proof Grade: Exia II CT6 Ga, Exd II CT6 Gb(see Certificate)
High Light:

PTFE Ultrasonic Level Gauge

,

Alarm Setting Ultrasonic Level Sensor

,

Flange Ultrasonic Level Transmitter

High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting At Any Point



The working Principle of High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting At Any Ponit



The working principle of the ultrasonic level gauge is that the ultrasonic transducer (probe) sends out a high-frequency pulsed sound wave when it encounters the surface of the measured material (material) and is reflected and folded back. The reflected echo is received by the transducer and converted into an electrical signal. The propagation time of the sound wave It is proportional to the distance from the sound wave to the surface of the object. The relationship between the sound wave transmission distance S, the sound speed C and the sound transmission time T can be expressed by the formula: S=C×T/2.
Because the transmitted ultrasonic pulse has a certain width, the reflected wave in a small area close to the transducer overlaps the transmitted wave, which cannot be identified and its distance value cannot be measured. This area is called the measurement dead zone. The size of the blind zone is related to the model of the ultrasonic level meter.
The probe part emits ultrasonic waves, the ultrasonic waves will be reflected when encountering a medium with a large difference in density from the air, and the reflected waves will be received by the probe part. The distance from the probe to the liquid (object) surface is proportional to the time passed by the ultrasonic wave:distance [m] = time x speed of sound/2 [m]

Design feature of High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting At Any Ponit


◎ reasonable design, excellent performance, simple structure, convenient installation, etc

◎ small angle probe is adopted for ultrasonic wave, with large transmission power and high sensitivity

◎ upper and lower limit setting and alarm setting at any point, can be used for continuous liquid measurement and liquid level control



Technical parameters of High Sensitivity NYCSUL Ultrasonic Level Gauge Alarm Setting At Any Ponit



Typical application Liquid (no stirring, foam, volatilization, etc.)
Product models Nycsul-501, NYCSUL-502, NYCSUL-503
The probe type Body, split body, explosion-proof, anti-corrosion, anti-corrosion and explosion-proof
The antenna material PP, PVC, PTFE, 304
Measuring range 0~ 20M (integrated), 0~40m(separate),
Accuracy of measurement <0.25% (range <20 m), <0.5% (range >20 m)
The process temperature 3M, 20M (deep well can measure several hundred meters, which can be customized as well)
Accuracy of measurement 0.05% ~ 0.1% F. S
The process temperature -20~+70C
Process pressure -0.1 ~=0.1 MPa, (atmospheric pressure)
Electrical Interface M20×1.5,½"NPT
Protection class IP65, IP67, IP68(optional)
Process connection Process connection
Display mode Liquid level, distance (air height)
Set the output Upper limit setting, lower limit setting
Signal output 4... 20mA/ HART/ RS485/Modbus. . .
Protection grade IP65, IP67, IP68(Optional)
Explosion-proof grade Exia II CT6 Ga, Exd II CT6 Gb(see certificate for details)



※Note:The product can be customized according to the specific requirements of users.
