Product Details:
|
Shell Material: | Aluminium Casting | Product Model: | NYRD810 |
---|---|---|---|
Antenna Type: | Polished Surface Type | Protection Grade: | IP65, IP67, IP68 (optional) |
Process Pressure: | -0.1~2.0MPa | Measuring Range: | 0~20m |
Measuring Medium: | Strong Dust, Large Range Solid | Process Temperature: | - 40~+1200 ℃ |

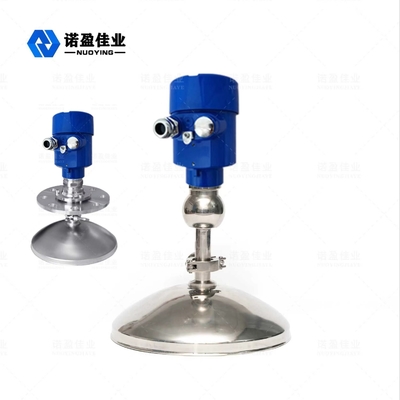

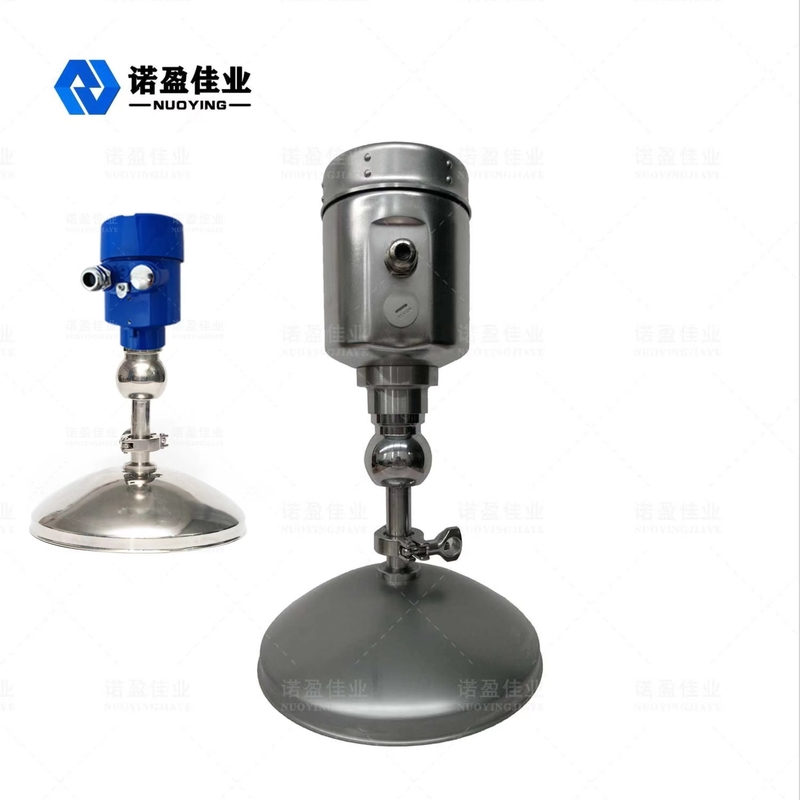

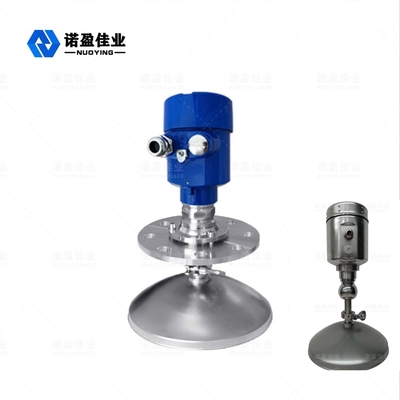

26G Radar Level Meter Aluminum Casting Shell NYRD810 Small Blind Range
26G Radar Aluminum Casting Shell NYRD810
NYRD809 sensor is a 26GHz high frequency radar level measuring instrument, measuring the maximum distance up to 80 meters. The antenna has been further optimized, and the new fast microprocessor allows for higher rate signal analysis and processing, enabling the meter to be used in complex measuring conditions such as strong dust and large amounts of solids.
Typical Applications |
Various solids,strong dew,dust |
Product Model |
NYRD810 |
Antenna Type |
polished surface type |
Antenna Material | 304 |
Measuring Range | 10m, 20m |
Measurement Accuracy | 0.05%~0.1% F. S |
Power Supply | 24VDC (two wire, four wire), 220VAC |
Signal Output | 4... 20mA/HART/RS485/Modbus |
Process Temperature | - 40~+130 ℃ |
Process Pressure | - 0.1~4.0MPa |
Process connection | flange (optional) |
Electrical Interface | M20×1.5, 1/2"NPT |
Protection Grade | IP67 (optional) |
Explosion Proof Grade | Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Remark: Customized products can be designed according to the specific requirements of users!
