Product Details:
|
| Typical Application: | Corrosive Liquid | Product Models: | NYRD801 |
|---|---|---|---|
| Antenna Type: | Rod Type | Echo Sampling: | 55 Times/s |
| Measuring Range: | 0~20m | Measurement Accuracy: | 0.05%~0.1% F. S |
| Power Supply: | 24VDC (two Wire, Four Wire), 220VAC | Process Connection: | Thread |

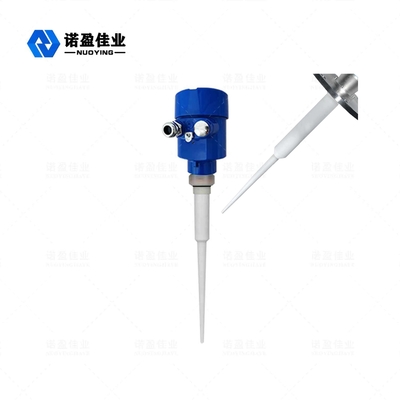

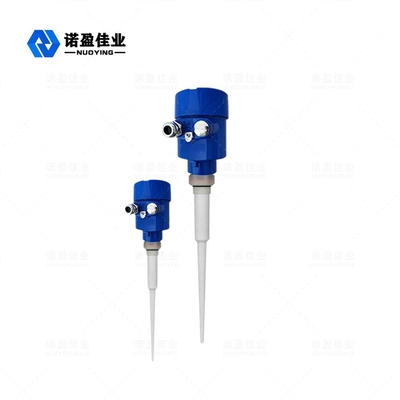

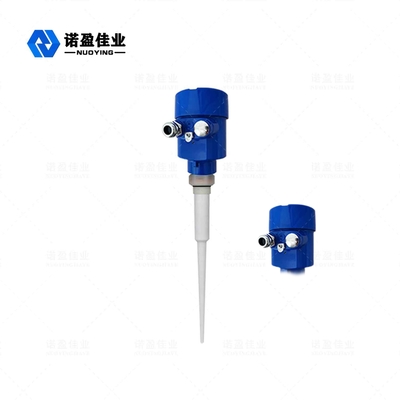

NYRD801 6G Intelligent Rod Type Radar Level Meter Threaded Connection
NYRD801 Rod Type Radar Level Meter Working Pinciple
It sends and takes very short microwave money from a very low energy antenna system. The radar waves move at the speed of light. At work, you can turn the signal into electronic components. In particular, the length of time is very short, stable and accurate.
If incorrect echo is required, the latest micro-operation technology and error software can verify the echo of liquid level.
NYRD801 Rod Type Radar Level Technical Parameters
|
Typical Application |
Corrosive liquid |
| Product Models | NYRD801 |
| Antenna Type | rod type |
| Antenna Material | PTFE, 304, 316 |
| Echo Sampling | 55 times/s |
| Measuring Range | 0~20m |
| Measurement Accuracy | 0.05%~0.1%F. S |
| Power Supply | 24VDC (two wire, four wire), 220VAC |
| Signal Output | 4...20mA/HART/RS485/Modbus... |
| Process Temperature | -40~+130℃,-40～+250℃ |
| Process Pressure | -0.1～0.3MPa,-0.1~2.0MPa,-0.1～4.0MPa |
| Process Connection | Thread, bracket, flange (optional) |
| Electrical Interface | M20 × 1.5, ½ "NPT |
| Protection Grade | IP65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Note: The products can be customized and designed according to the specific requirements of users!
NYRD801 Rod Type Radar Level Design Features
Intelligent radar level meter uses advanced microwave processing technology and unique Echo Discovery echo processing technology, the product can be applied to a variety of complex operating conditions.
The "Spurious Echo Learning" feature enables the instrument to accurately identify true echoes under a wide range of spurious echo conditions, resulting in accurate measurement results.
Various process connection modes and detection element types can be customized and designed according to customer requirements.
Adopting pulse operation mode with extremely low emission power, it can be installed in various metal and non-metal containers and is harmless to human body and environment.
