Product Details:
|
| Antenna Material: | PP、PVC、PTFE、304 | Typical Application: | Liquid |
|---|---|---|---|
| Process Pressureterface: | - 0.1~0.1MPa (normal Pressure) | Temperature Accuracy: | -20～+70℃ |
| Power Supply: | 24VDC | Product Models: | NYCSUL-502 |
| Process Connection: | Thread, Flange (optional) | Measuring Range: | 0-40m |

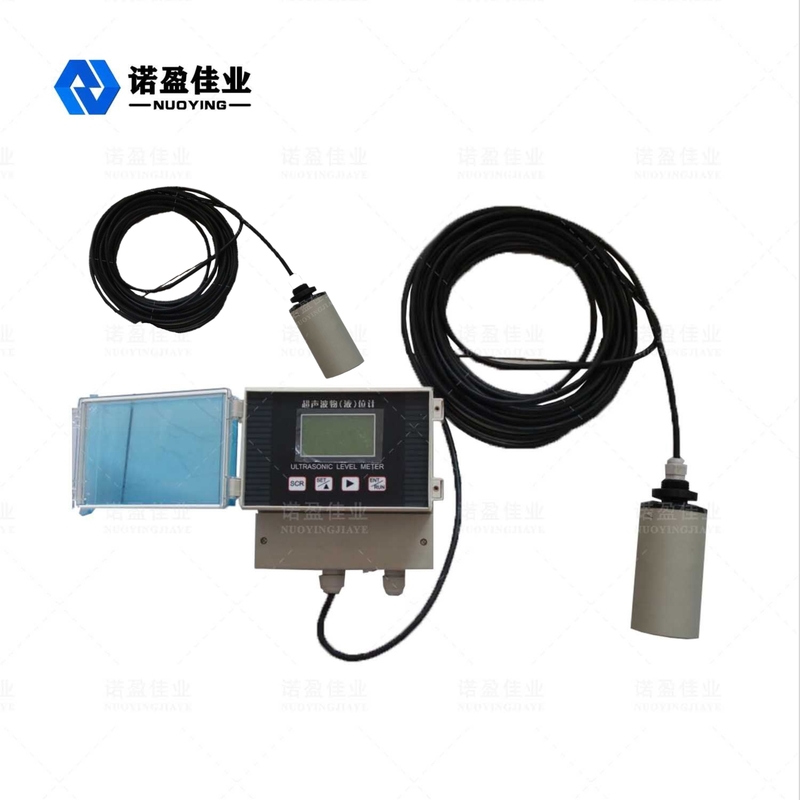

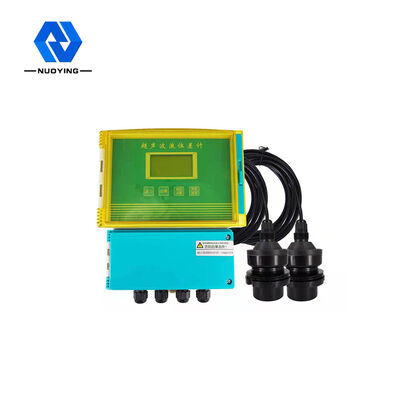

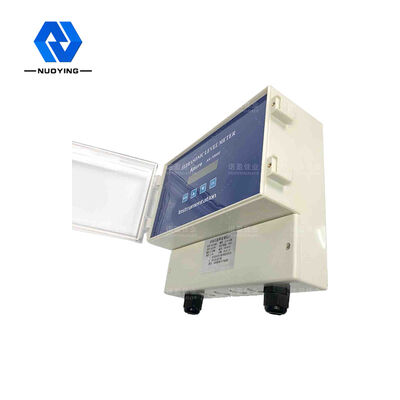

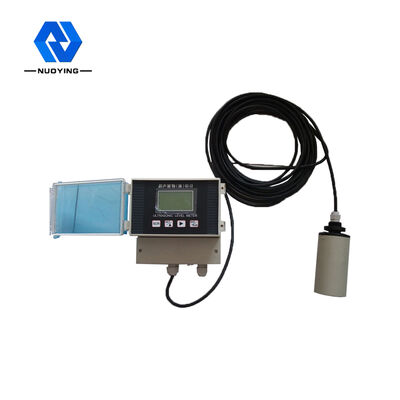

NYCSUL-502 Intelligent Non-Contact Ultrasonic Level Meter
NYCSUL-502 Ultrasonic Level Meter Working Principle
The ultrasonic level meter is installed at the top of the container, under the control of the electronic unit, the probe emits a beam of ultrasonic pulses to the object to be measured, the sound waves are reflected by the surface of the object, part of the reflected echo is received by the probe and converted into an electrical signal, based on the time difference between the ultrasonic waves from the emission to be re-received and the known speed of sound to determine the level change, the microwave signal is processed by the electronic unit and finally converted into a level-related The electronic device processes the microwave signal and converts it into an electrical signal related to the level.

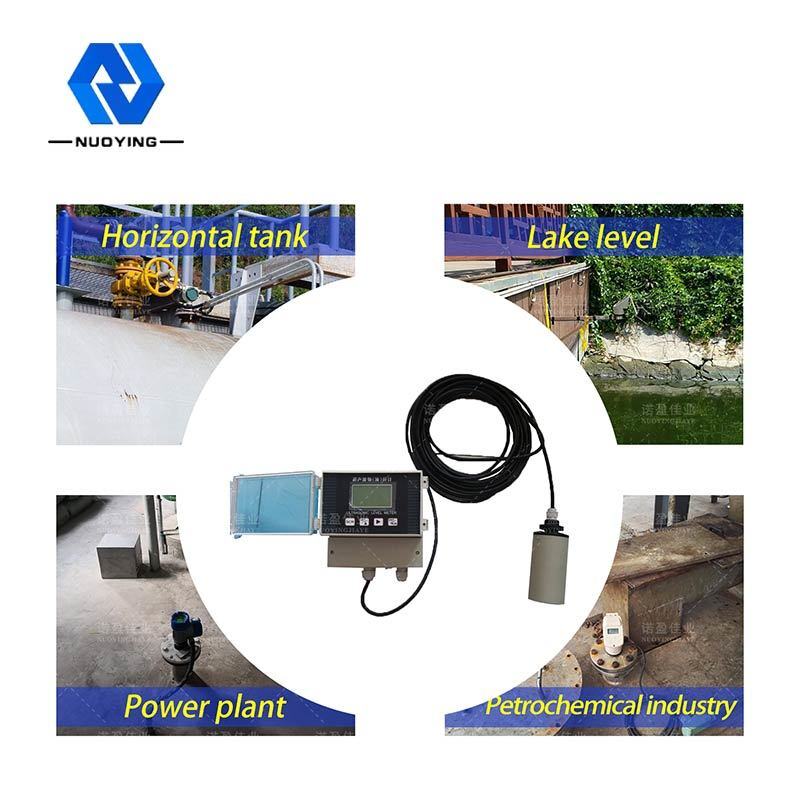

| Typical Application | liquid (no agitation, foam, volatilization, etc.) |
| Product Models | NYCSUL-502 |
| Probe Type | integrated, split, explosion-proof, anti-corrosion and explosion-proof |
| Antenna Material | PP,PVC,PTFE,304 |
| Measuring Range | 0~40m |
| Measurement Accuracy | <0.25% (measuring range<20m), <0.5% (measuring range>20m) |
| Process Temperature | -20～+70℃ |
| Process Pressure | - 0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |
| Display Mode | liquid level and distance (empty height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia ll CT6 Ga, Exib II BT6 Gb (see certificate for details) |
Note: The products can be customized and designed according to the specific requirements of users!

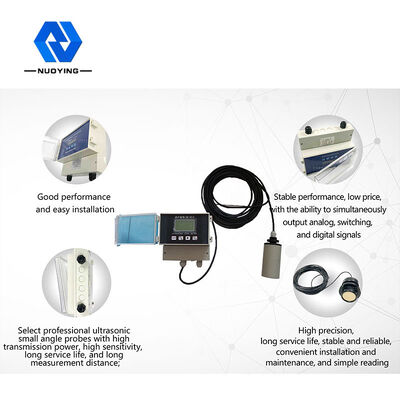

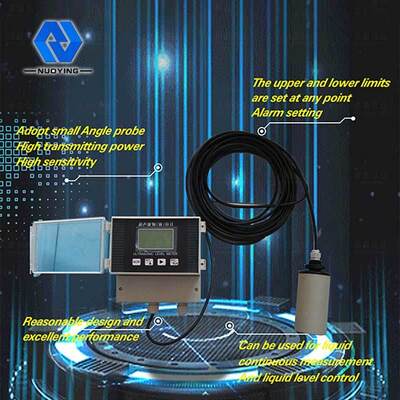

NYCSUL-502 Ultrasonic Level Meter Design Features
Reasonable design, excellent performance, simple structure, easy installation, etc..
Small angle probe for ultrasonic waves, high emission power and high sensitivity.
Any point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and level control.
