Product Details:
|
| Product Models: | NYCSUL-503 | Typical Application: | Liquid(no Agitation, Foam,etc.) |
|---|---|---|---|
| Process Pressureterface: | - 0.1~0.1MPa | Power Supply: | 24VDC |
| Temperature Accuracy: | -20～+70℃ | Measurement Accuracy: | <0.25% (measuring Range<20m), <0.5% (measuring Range>20m) |
| Display Mode: | Liquid Level And Distance (empty Height) | Measuring Range: | 0-20m |

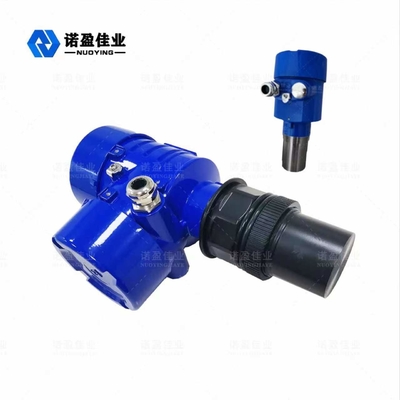

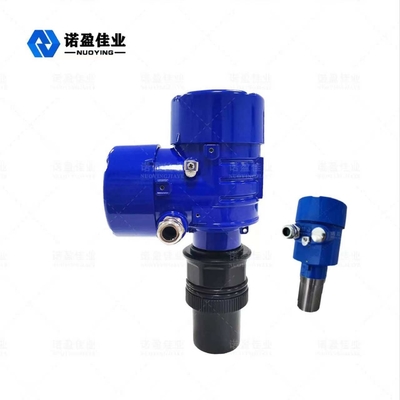

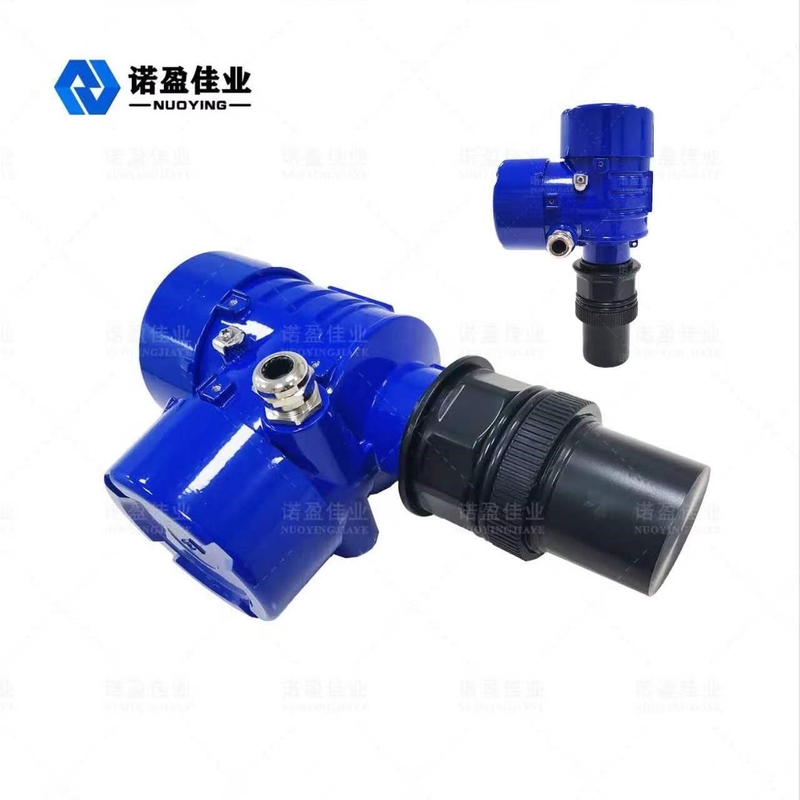

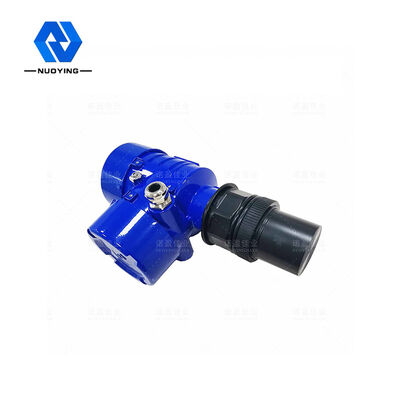

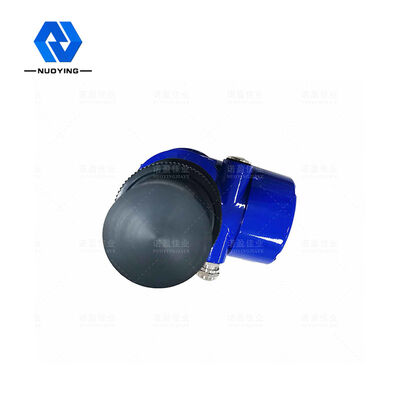

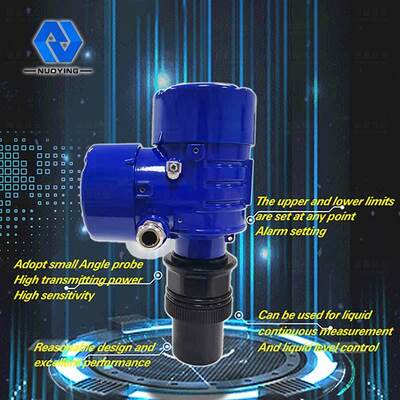

NYCSUL-503 Large Power High Sensitivity Ultrasonic Level Meter
NYCSUL-503 Ultrasonic Level Meter Working Principle
The ultrasonic level meter is installed on the top of the container, under the control of the electronic unit, the detector transmits the ultrasonic pulse to measure the object, the surface of the object reflected by the acoustic wave, and part of the reflected echo is received by the probe, converted into electrical signal, according to the ultrasonic time difference from the transmission to re-received and the known speed of sound to determine the level change, microwave signal through the electronic device processing, This is finally converted to electrical signals associated with the level.

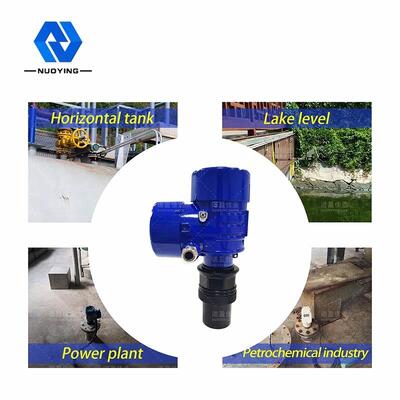

| Typical Application | liquid (no agitation, foam, volatilization, etc.) |
| Product Models | NYCSUL-503 |
| Probe Type | integrated, split, explosion-proof, anti-corrosion and explosion-proof |
| Antenna Material | PP,PVC,PTFE,304 |
| Measuring Range | 0~20m |
| Measurement Accuracy | <0.25% (measuring range<20m), <0.5% (measuring range>20m) |
| Process Temperature | -20～+70℃ |
| Process Pressure | - 0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |

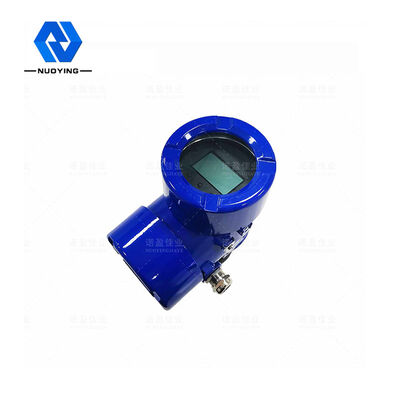

| Display Mode | liquid level and distance (empty height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia ll CT6 Ga, Exib II BT6 Gb (see certificate for details) |
Note: The products can be customized and designed according to the specific requirements of users!

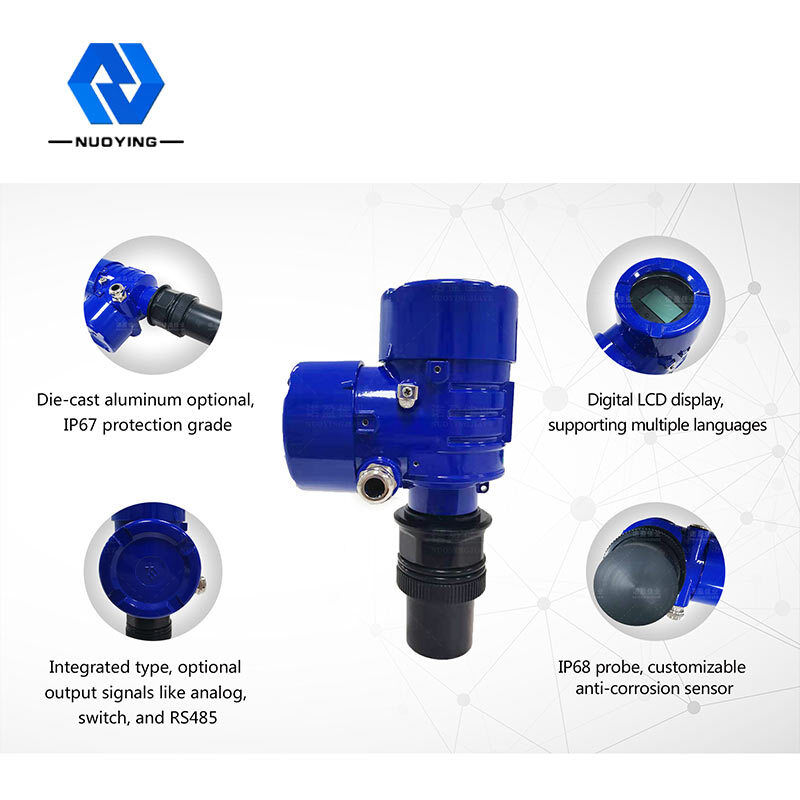

NYCSUL-503 Ultrasonic Level Meter Design Features
Reasonable design, excellent performance, simple structure, easy installation and other characteristics.
Ultrasonic small angle probe, high transmission power and high sensitivity.
Any point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control.
