| Brand Name: | NUOYING |
| Model Number: | NYRD809 |
| MOQ: | 1 pc |
| Price: | $120~$280/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
High-frequency 4-20mA Hart Radar Solid Level Transmitter 26GHz Pulse Dusty Conditions Radar Level Gauge with CE and ATEX
NYRD809 26GHz Radar Level Transmitter Product Description
The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
NYRD809 26GHz Radar Level Transmitter Application Fields
1.Power plants: Reservoirs, steam ladles, etc.
2.Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
3.Chemical: Raw material silo, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, etc.
5.Foodstuffs: Raw sugar storage tank, etc.
6.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
7.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
8.Other: Quarry, coal mine, environmental protection and other industries.
NYRD809 26GHz Radar Level Transmitter Technical Parameters
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 316L (optional) |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Medium temperature | -40~+250℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.

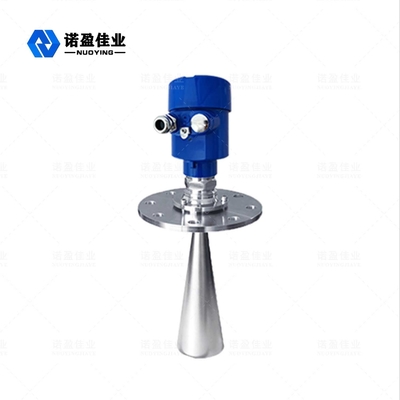

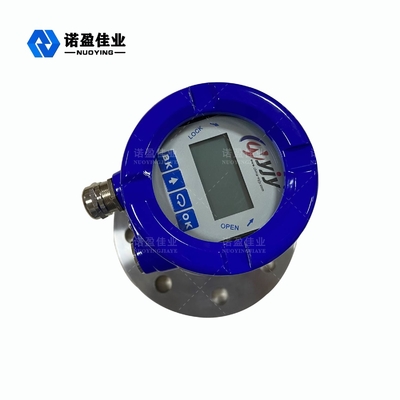

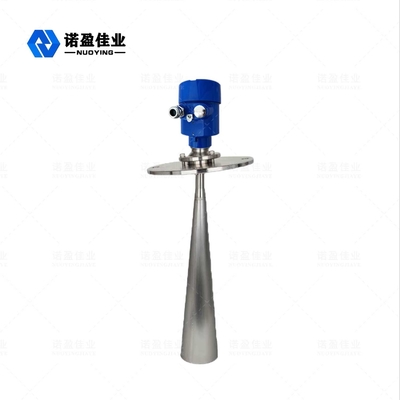

NYRD809 26GHz Radar Level Transmitter Pictures
