| Brand Name: | NUOYING |
| Model Number: | NYRD809 |
| MOQ: | 1 pc |
| Price: | $140~$380/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Cheap 26GHz IP67 Radar Level Transmitter 35m Range Radar Level Gauge for Solids measurement with SIL and CE
26GHz Radar Level Transmitter Design Features
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
26GHz Radar Level Transmitter Application Fields
1.Power plants: Reservoirs, steam ladles, etc.
2.Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
3.Chemical: Raw material silo, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, etc.
5.Foodstuffs: Raw sugar storage tank, etc.
6.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
7.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
8.Other: Quarry, coal mine, environmental protection and other industries.
NYRD809 26GHz Radar Level Transmitter Technical Parameters
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 316L (optional) |
| Antenna type | Horn antenna |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Process temperature | -40~+250℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.

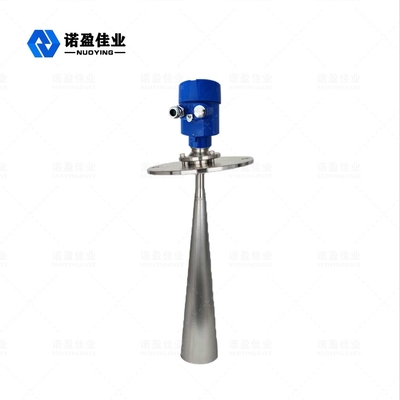

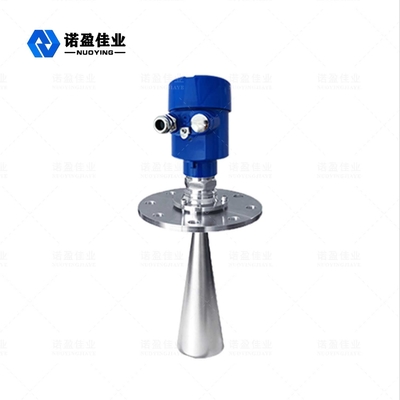

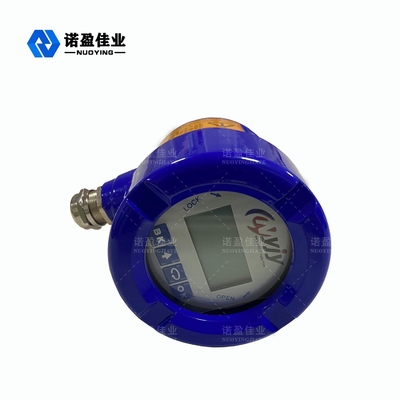

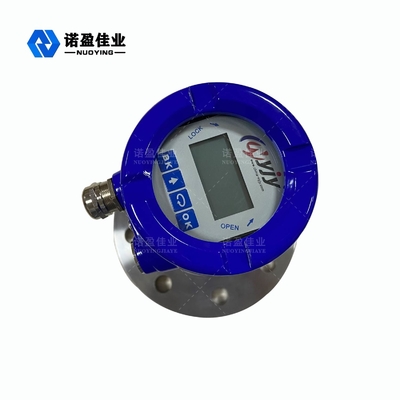

NYRD809 26GHz Radar Level Transmitter Related Pictures
