China NYRD808 0-70m 26G High Frequency Radar Level Meter 4-20mA Radar Level Transmitter with SIL and IP67 Reports
NYRD808 26GHz Radar Level Transmitter Product Description
The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 70 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
NYRD808 26GHz Radar Level Transmitter Working Principle
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
NYRD808 26GHz Radar Level Transmitter Design Features
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
NYRD808 26GHz Radar Level Transmitter Application Fields
1. Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
2. Chemical: Raw material silos, ammonia tank, asphalt storage tank, etc.
3. Metallurgy: Raw material silos, auxiliary material silos, etc.
4. Foodstuffs: Raw sugar storage tank, etc.
5. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
6. Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
7. Other: Quarry, coal mine, environmental protection and other industries.
NYRD808 26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD808 |
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 304, 316, PP, PFA |
| Antenna type | Horn Antenna |
| Measuring range | 70m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire), 220VAC |
| Medium temperature | -40~+120℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

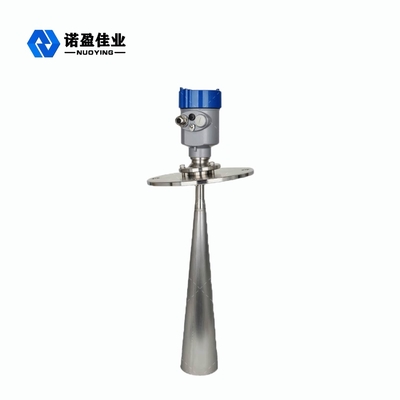

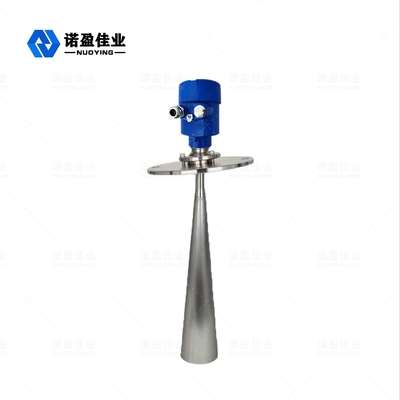

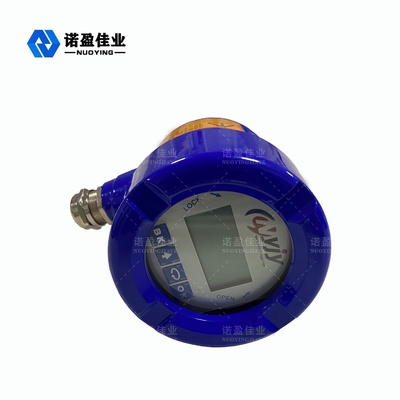

NYRD808 26GHz Radar Level Transmitter Related Pictures
