| Brand Name: | NUOYING |
| Model Number: | NYRD808 |
| MOQ: | 1 pc |
| Price: | $218~$600/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD808 26GHz 70m Radar Level Transmitter Industrial High Frequency Radar Liquid Water Level Sensor for Solid
NYRD808 26GHz Radar Level Transmitter Working Principle
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
NYRD808 26GHz Radar Level Transmitter Design Features
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
NYRD808 26GHz Radar Level Transmitter Application Fields
1. Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
2. Chemical: Raw material silos, ammonia tank, asphalt storage tank, etc.
3. Metallurgy: Raw material silos, auxiliary material silos, etc.
4. Foodstuffs: Raw sugar storage tank, etc.
5. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
NYRD808 26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD808 |
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 304, 316, PP, PFA |
| Antenna type | Horn Antenna |
| Measuring range | 70m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire), 220VAC |
| Medium temperature | -40~+120℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

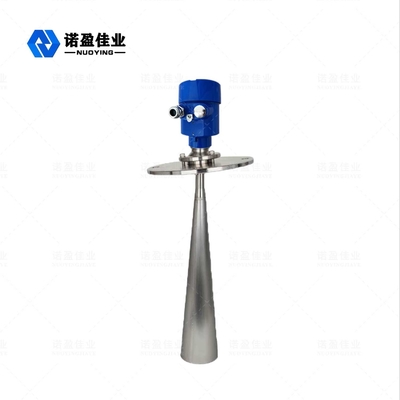

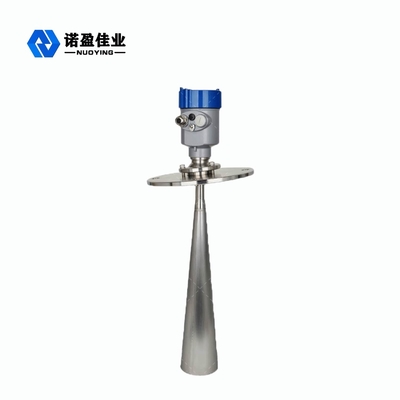

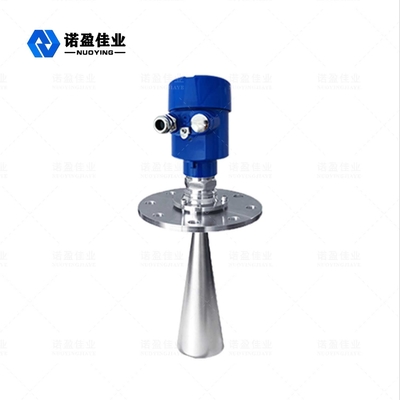

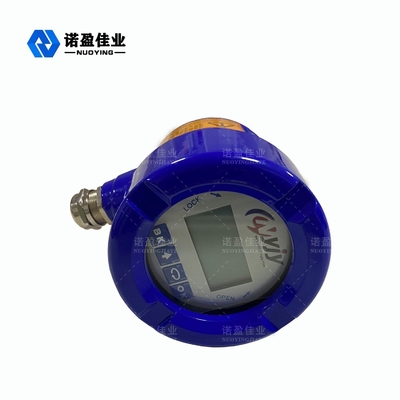

NYRD808 26GHz Radar Level Transmitter Related Pictures
