| Brand Name: | NUOYING |
| Model Number: | NYRD-SL |
| MOQ: | 1 pc |
| Price: | $148~$680/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD-SL Radar Level Transmitter for Liquids IP67 Radar Level Gauge 26GHz Level Measuring Tool for Liquid Water with SIL
NYRD-SL Radar Level Transmitter Product Description
The NYRD-SL Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
NYRD-SL Radar Level Transmitter Design Features
NYRD-SL Radar Level Transmitter Technical Parameters
| Product Model | NYRD-SL |
| Typical application | Drains, reservoirs, rivers, lakes, shallows, etc. |
| Antenna material | PTFE, 304, 316, PP, PFA |
| Antenna type | Horn Antenna |
| Measuring range | 30m, 80m (optional) |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Medium temperature | -40~+80℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~2.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

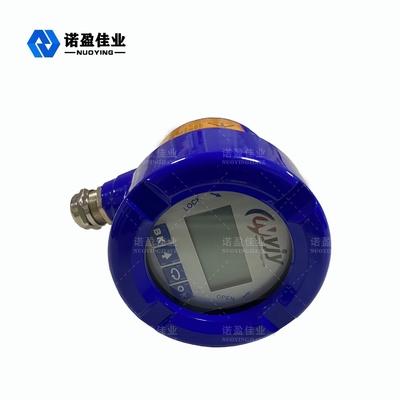

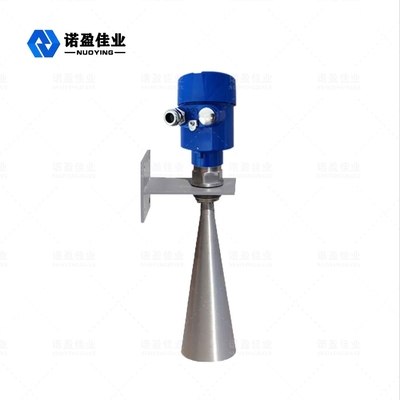

NYRD-SL Radar Level Transmitter Related Pictures
