| Brand Name: | NUOYING |
| Model Number: | NYRD806 |
| MOQ: | 1 pc |
| Price: | $168~$860/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD806 RS485 Acid Water Tank Radar Level Transmitter Non-contact 316L Hart Radar Liquid Level Sensor of 30m Range
NYRD806 Radar Level Transmitter Product Description
The NYRD806 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 30 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
NYRD806 Radar Level Transmitter Design Features
Antenna size is small, easy to installNon-contact radar, no wear, no pollution
Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes
Severe dust environment has little impact on the operation of high frequency level meter
The measurement blind area is smaller, and good results can be achieved for small tank measurement
High signal-to-noise ratio for better performance even under fluctuating conditions
High frequency, the best choice for measuring solid and low dielectric constant media
NYRD806 Radar Level Transmitter Technical Parameters
| Product Model | NYRD806 |
| Typical application |
Temperature resistant, pressure resistant, slightly corrosive liquid |
| Antenna material | 316L (optional) |
| Antenna type | Horn Antenna |
| Measuring range | 30m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Medium temperature | -40~250℃ |
| Process connection | Bracket, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

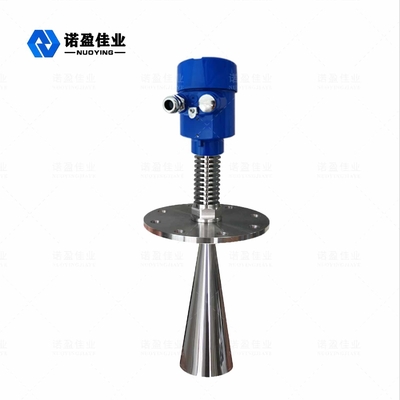

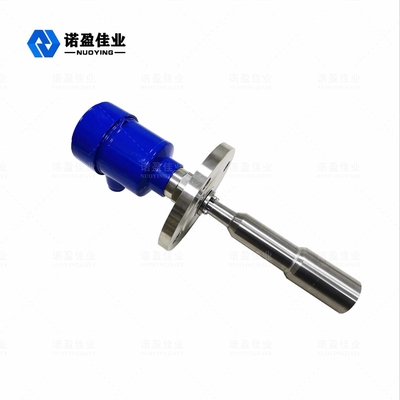

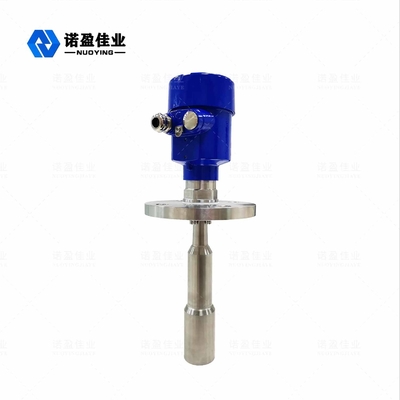

NYRD806 Radar Level Transmitter Related Pictures
