NYRD-SD 26GHz Radar Level Transmitter Product Description

The NYRD-SD Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.

NYRD-SD 26GHz Radar Level Transmitter Working Principle

The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).

The datum of measurement: Thread bottom surface or sealing surface of flange.

Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).

NYRD-SD 26GHz Radar Level Transmitter Design Features

• No mechanical wear, non-contact measurement, no pollution
• All-weather operation, strong anti-interference ability
• Not affected by medium density, temperature and pressure changes
• Hardly affected by corrosion and foam
• Shorter wavelength, better reflection for inclined solid surfaces
• High signal-to-noise ratio for better performance even under fluctuating conditions.
• Low cost, simple installation and maintenance, long life

• Multiple functions, especially suitable for strong corrosive liquids and powders

NYRD-SD 26GHz Radar Level Transmitter Application Fields

1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)

2. All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.)

3. Various solids (grain, pebbles, iron ore, coal, etc.)

NYRD-SD 26GHz Radar Level Transmitter Technical Parameters

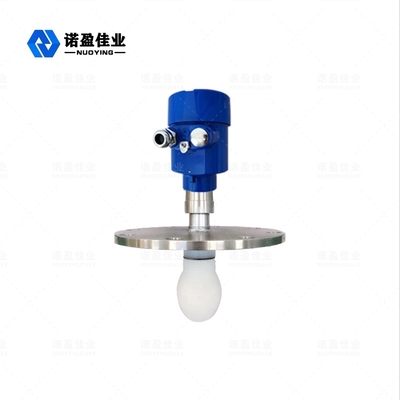

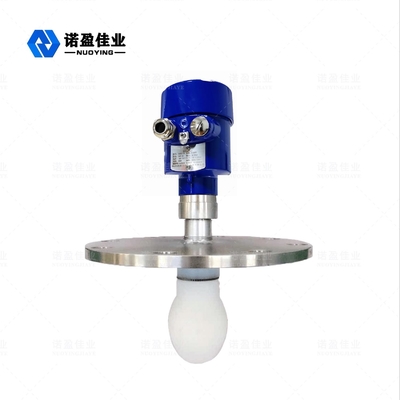

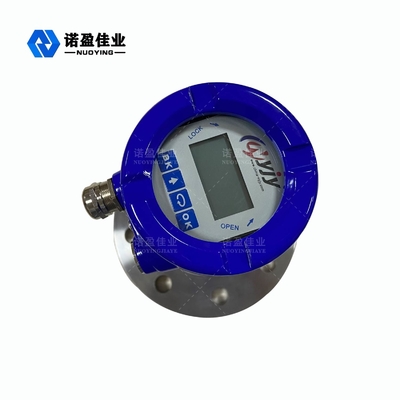

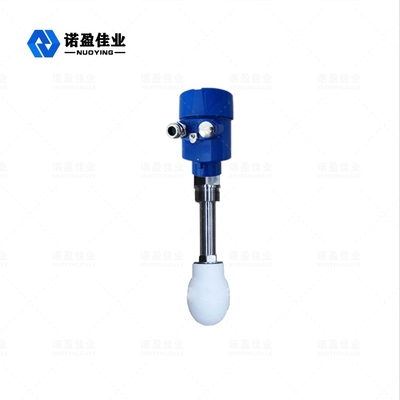

NYRD-SD 26GHz Radar Level Transmitter Related Pictures
