| Brand Name: | NUOYING |
| Model Number: | NYRD-SD |
| MOQ: | 1 pc |
| Price: | $228~$850/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
26GHz 40m Radar Water Level Transmitter Sensor Gauge for Solids Powders Granules Grain Bin
26GHz Radar Level Transmitter Product Description
The NYRD-SD Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
26GHz Radar Level Transmitter Design Features
Multiple functions, especially suitable for strong corrosive liquids and powders
26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD-SD |
|
Typical application |
Powders, highly corrosive liquids, liquids prone to crystallization and condensation, etc. |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE (optional) |
| Antenna type |
Water drop |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Ambient humidity |
0~90% |
|
Resolution |
1mm |
|
Process connection |
Thread, flange, bracket (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Supply power |
24VDC; 220VAC (optional) |
|
Power |
3W |
|
Explosion-proof grade |
ExiaⅡCT6 Ga (optional) |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

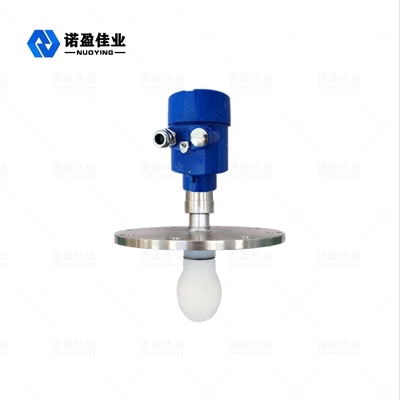

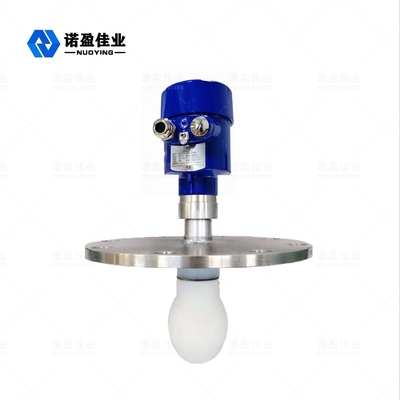

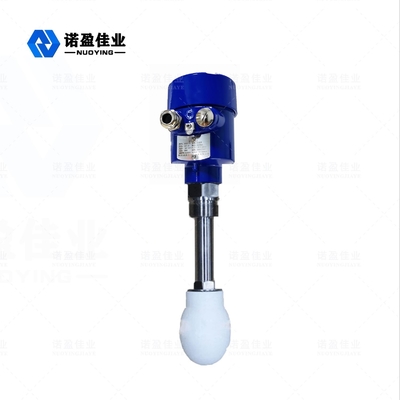

26GHz Radar Level Transmitter Related Pictures
