26GHz Radar Level Meter Product Description
The NYRD-SD Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
26GHz Radar Level Meter Application Fields
1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)
2. All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.)
3. Various solids (grain, pebbles, iron ore, coal, etc.)
26GHz Radar Level Meter Technical Parameters
| Product Model | NYRD-SD |
|
Typical application |
Powders, highly corrosive liquids, liquids prone to crystallization and condensation, etc. |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE (optional) |
| Antenna type |
Water drop |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Ambient humidity |
0~90% |
|
Resolution |
1mm |
|
Process connection |
Thread, flange, bracket (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Supply power |
24VDC; 220VAC (optional) |
|
Power |
3W |
|
Explosion-proof grade |
ExiaⅡCT6 Ga (optional) |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

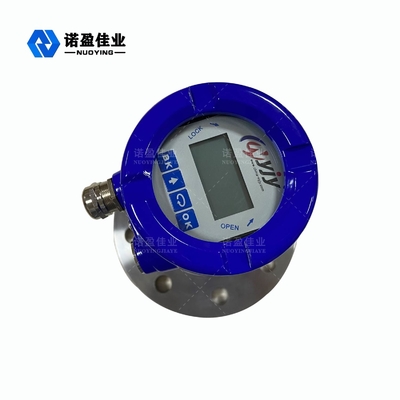

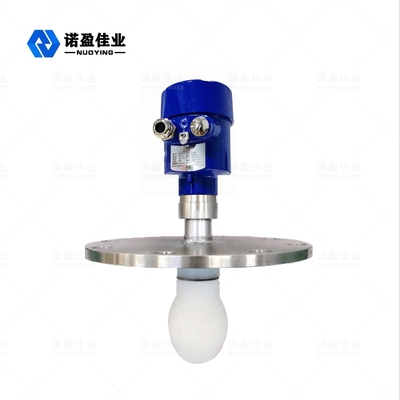

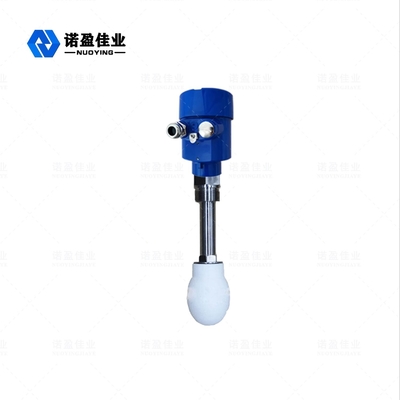

NYRD-SD 26GHz Radar Level Transmitter Related Pictures
