Multifunctional 26GHz Non-contact Liquid Level Gauge of 2.0MPa for Liquids Prone to Condensation and Powders of 40m
Multifunctional 26GHz Non-contact Liquid Level Gauge Working Principle
The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Thread bottom surface or sealing surface of flange.
Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).
Multifunctional 26GHz Non-contact Liquid Level Gauge Application Fields
1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)
2. All kinds of powders (cement powders, lime powders, fly ash, etc.)
3. Various solids (grain, pebbles, iron ore, coal, etc.)
Multifunctional 26GHz Non-contact Liquid Level Gauge Technical Parameters
| Product Model | NYRD-SD |
|
Typical application |
Powders, highly corrosive liquids, liquids prone to crystallization and condensation, etc. |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE (optional) |
| Antenna type |
Water drop |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Ambient humidity |
0~90% |
|
Resolution |
1mm |
|
Process connection |
Thread, flange, bracket (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Supply power |
24VDC; 220VAC (optional) |
|
Power |
3W |
|
Explosion-proof grade |
ExiaⅡCT6 Ga (optional) |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

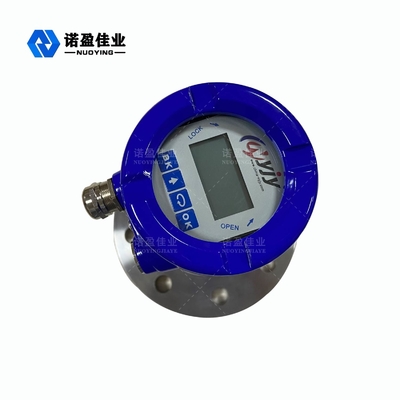

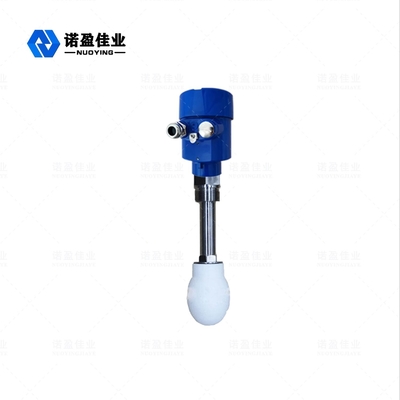

Multifunctional 26GHz Non-contact Liquid Level Gauge Related Pictures
