Liquid (no Stirring, Bubble, Volatilization, Etc.)
Measuring Accuracy:
±0.5% FS (optional ± 0.2% FS)
Power Supply:
24VDC
Process Connection:
Thread, Flange (optional)
Medium Temperature:
-20℃-60℃
Process Pressure:
-0.1~0.1MPa
Signal Output:
4...20mA/HART/RS485/Modbus...
Display:
LCD
Measuring Range:
5m,10m(optional)
Packaging Details:
40*30*30cm
Supply Ability:
1000pcs per month
Product Description

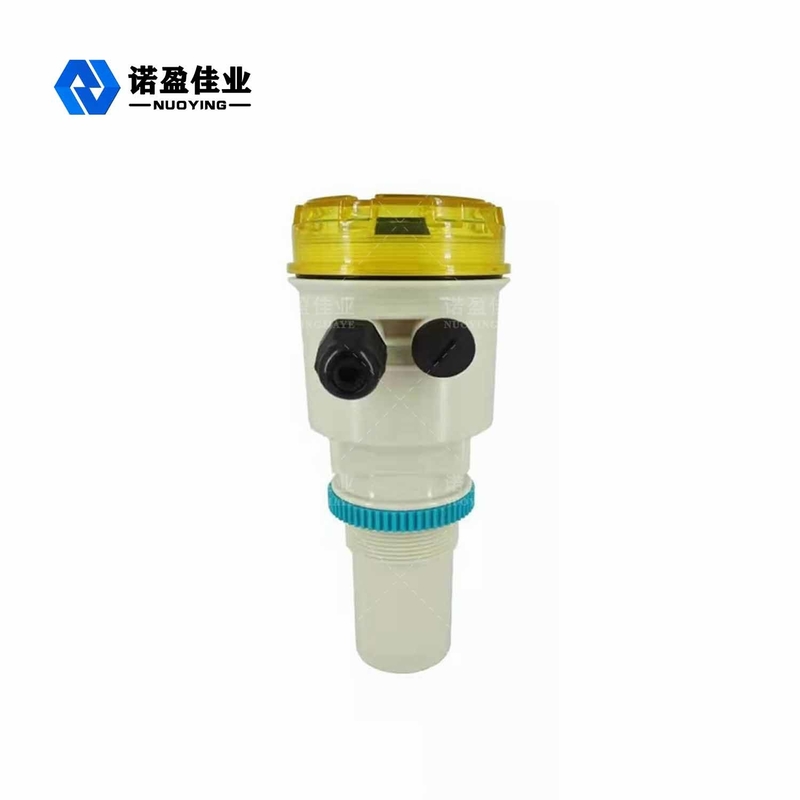

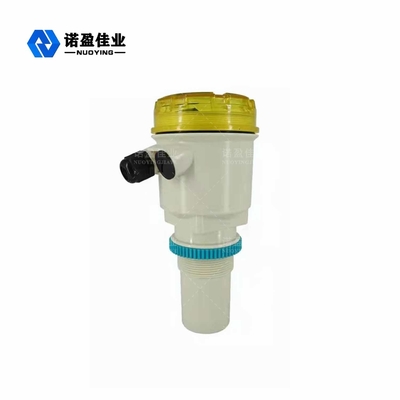

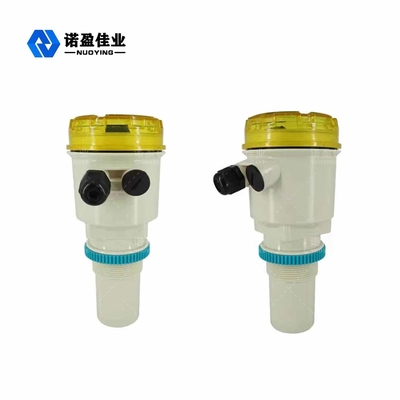

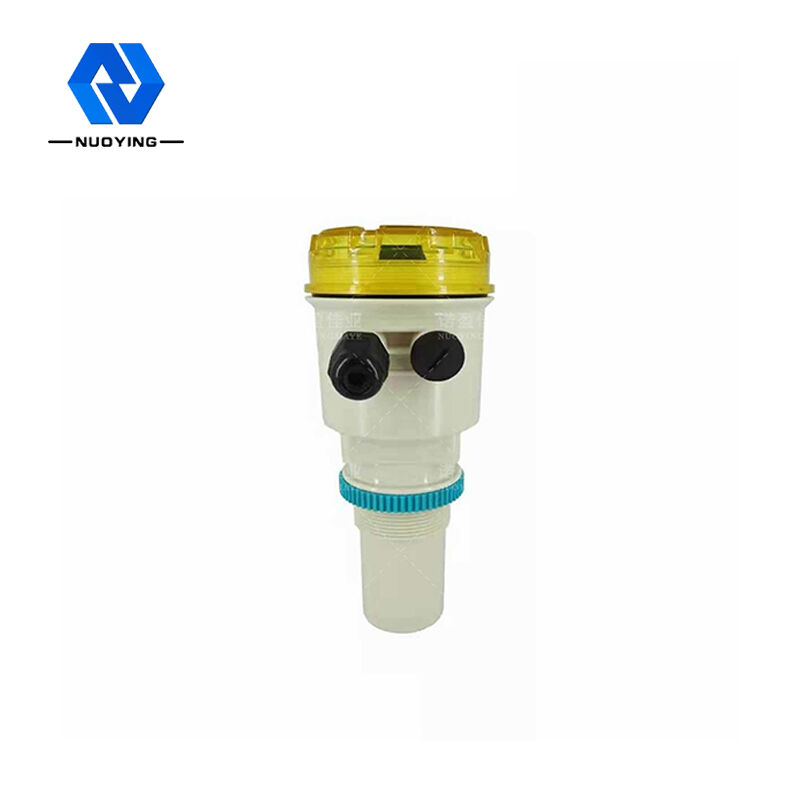

4-20mA NYCSUL-503 Ultrasonic Water Liquid Level Meter Sensor Non Contact Ultrasonic Level Sensor Transmitt
Nuoying NYCSUL-503 Ultrasonic Water Liquid Level MeterOvervie
Products Description
NYCSUL-503 Ultrasonic Level Switch Working Principle
The ultrasonic level switch is installed on the top of the container. Under the control of the electronic unit, the probe sends a beam of ultrasonic pulse to the measured object. The sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal. The change of the level is determined according to the time difference from ultrasonic re transmission to re reception and the known sound speed. The electronic device processes the microwave signal and finally converts it into an electrical signal related to the level.
