Anti-corrosive 26GHz Radar Level Transmitter 40m Flanged Radar Level Sensor for Tank Liquids and Solid Particles 24VDC
26GHz Radar Level Transmitter Product Description
The NYRD-SD Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. The antenna is further optimized, higher-speed signal analysis and processing performed by the new fast microprocessor, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc.
The datum of measurement: Thread bottom surface or sealing surface of flange.
Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).
26GHz Radar Level Transmitter Design Features
No mechanical wear, non-contact measurement, no pollution
All-weather operation, strong anti-interference ability
Not affected by medium density, temperature and pressure changes
Hardly affected by corrosion and foam
26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD-PB |
|
Typical application |
Powders, various liquids (especially corrosive liquids) |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE, 316L (optional) |
| Antenna type |
Panel antenna |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Process connection |
Bracket, flange (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Power supply |
24VDC (Two lines, four lines) |
|
Explosion-proof grade |
Exia II CT6, Exd Ⅱ CT6 Gb |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

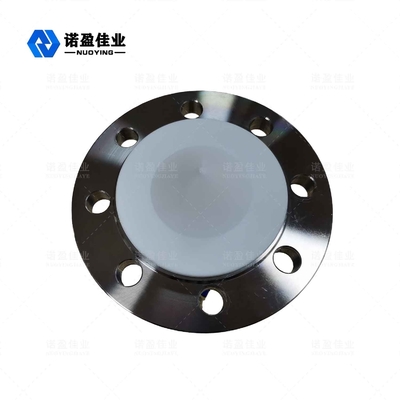

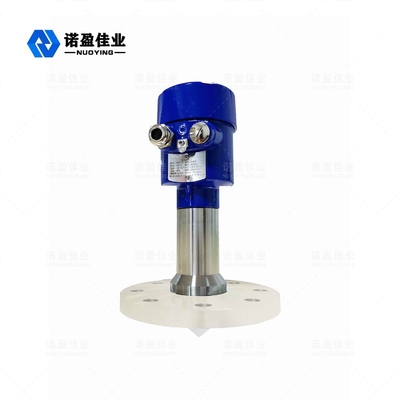

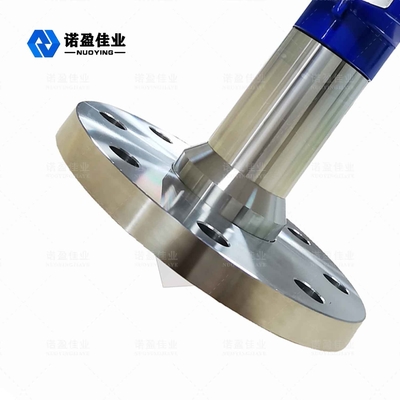

26GHz Radar Level Transmitter Related Pictures
