| Brand Name: | NUOYING |
| Model Number: | NYRD-PB |
| MOQ: | 1 pc |
| Price: | $318~$690/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Professional Manufacture NYRD-PB Panel Radar Level Gauge 26GHz High Accuracy Radar Level Transmitter with RS485 Output
NYRD-PB Radar Level Transmitter Design Features
Multiple functions, especially suitable for corrosive liquids and powders
NYRD-PB Radar Level Transmitter Application Fields
1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
4. Other: Quarry, environmental protection, shipbuilding and other industries.
NYRD-PB Radar Level Transmitter Technical Parameters
| Product Model | NYRD-PB |
|
Typical application |
Powders, various liquids (especially corrosive liquids) |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE, 316L (optional) |
| Antenna type |
Panel antenna |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Process connection |
Bracket, flange (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Power supply |
24VDC (Two lines, four lines) |
|
Explosion-proof grade |
Exia II CT6, Exd Ⅱ CT6 Gb |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

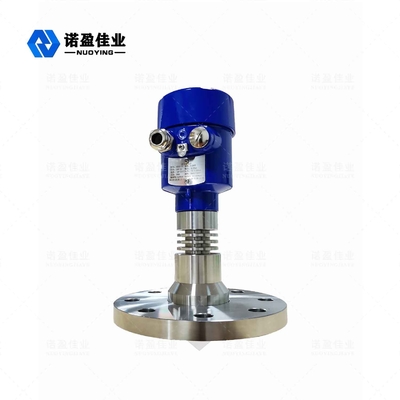

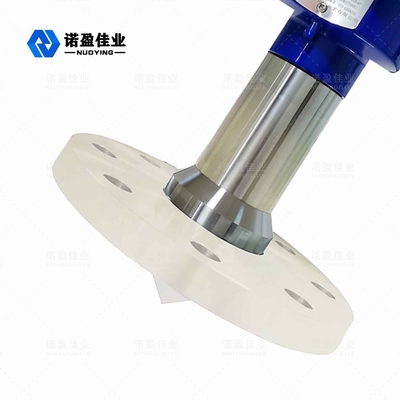

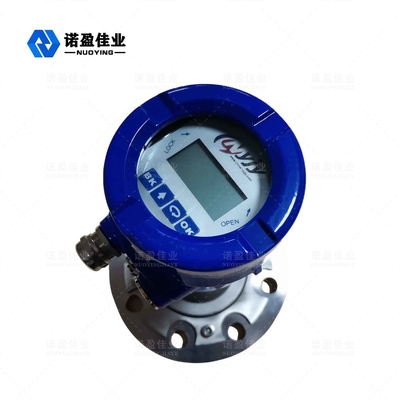

NYRD-PB Radar Level Transmitter Related Pictures
