| Brand Name: | NUOYING |
| Model Number: | NYRD-PB |
| MOQ: | 1 pc |
| Price: | $368~$630/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
26G High-frequency Radar Level Gauge for Foam Occasions and Easily Crystallized Bulk Solids with IP67 and ATEX Reports
26GHz Radar Level Gauge Product Description
The NYRD-SD Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. The antenna is further optimized, higher-speed signal analysis and processing performed by the new fast microprocessor, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc.
The datum of measurement: Thread bottom surface or sealing surface of flange.
Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).
26GHz Radar Level Gauge Design Features
Multiple functions, especially suitable for corrosive liquids and powders
26GHz Radar Level Gauge Application Fields
1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
4. Other: Quarry, environmental protection, shipbuilding and other industries.
26GHz Radar Level Gauge Technical Parameters
| Product Model | NYRD-PB |
|
Typical application |
Powders, various liquids (especially corrosive liquids) |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE, 316L (optional) |
| Antenna type |
Panel antenna |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Process connection |
Bracket, flange (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Power supply |
24VDC (Two lines, four lines) |
|
Explosion-proof grade |
Exia II CT6, Exd Ⅱ CT6 Gb |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

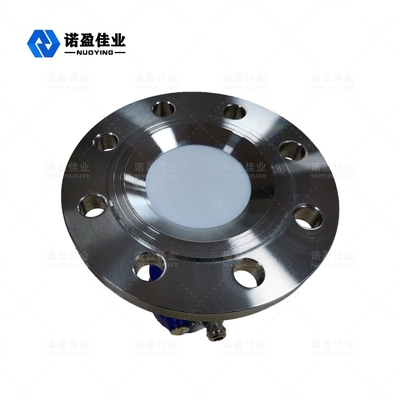

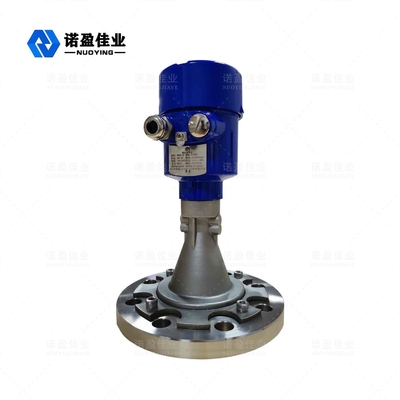

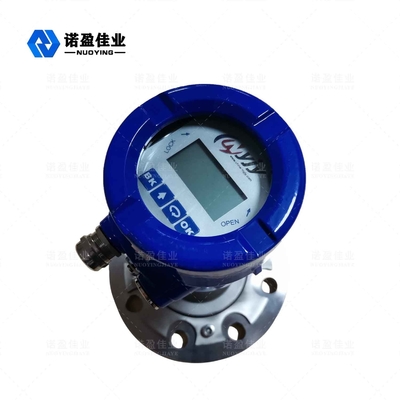

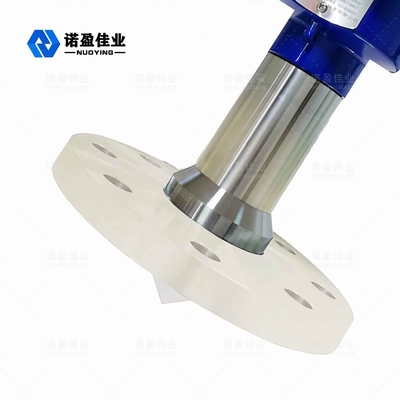

26GHz Radar Level Gauge Related Pictures
