| Brand Name: | NUOYING |
| Model Number: | NYRD801 |
| MOQ: | 1 pc |
| Price: | $216~$539/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Chinese Factory 6.8GHz High Accuracy 20m Radar Level Transmitter for Liquids Intelligent RS485 Radar Level Gauge
6.8GHz Radar Level Transmitter Product Description
The NYRD801 Radar level transmitter is a 6.8GHz high-frequency radar level measuring instrument with a maximum measurement distance of 20 meters. The transmitter transmits and receives very short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. Then the running time can be converted into a level signal through an electronic component. A special time extension method ensures stable and accurate measurements in a very short period of time.
Even if there is false echo under complex working conditions, the echo of material level can be accurately analyzed with the latest microprocessor technology and debugging software.
6.8GHz Radar Level Transmitter Design Features
The intelligent radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. The product can be applied to various complex working conditions.
The "false echo learning" function enables the instrument to accurately identify the true echo under multiple false echo conditions, so as to obtain accurate measurement results.
Various process connection modes and types of detection components can be customized according to customer requirements.
With pulse working mode, the product has extremely low emission power and can be installed in various metal and non-metal containers, without harm to human body and the environment.
NYRD801 6.8GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD801 |
| Typical application |
Slightly corrosive liquids, liquids with simple process |
| Antenna material | PTFE |

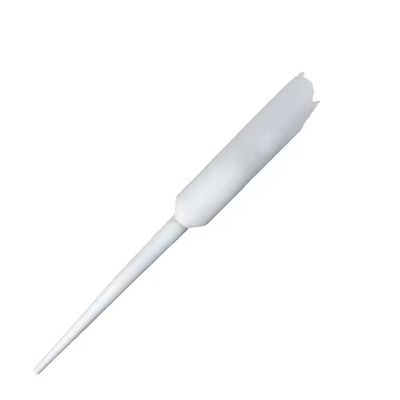

| Antenna type | Rod Antenna |
| Measuring range | 20m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~0.3MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

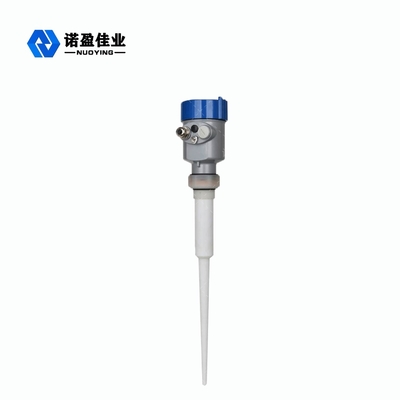

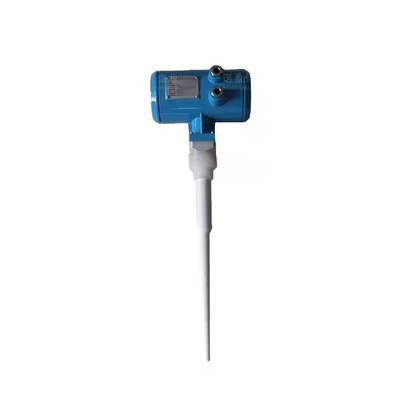

NYRD801 6.8GHz Radar Level Transmitter Related Pictures
