| Brand Name: | NUOYING |
| Model Number: | NYRD802 |
| MOQ: | 1 pc |
| Price: | $205~$589/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Chinese 4-20mA 6.8GHz Non-contact IP67 Radar Level Transmitter of 20m Range for Liquids with Rotatable Flange
6.8GHz Non-contact Radar Level Transmitter Design Features
The intelligent radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. The product can be applied to various complex working conditions.
The "false echo learning" function enables the instrument to accurately identify the true echo under multiple false echo conditions, so as to obtain accurate measurement results.
6.8GHz Non-contact Radar Level Transmitter Application Fields
1. Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2. Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.
3. Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4. Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
6.8GHz Non-contact Radar Level Transmitter Technical Parameters
| Product Model | NYRD802 |
| Typical application |
Corrosive liquids |
| Antenna material | PTFE |

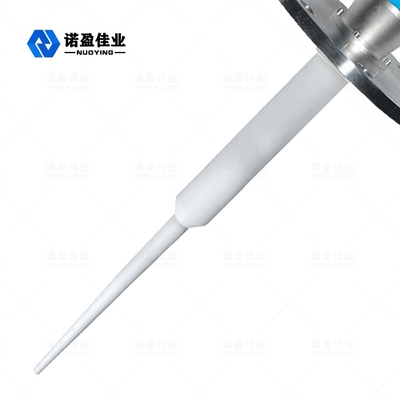

| Antenna type | Rod Antenna |
| Measuring range | 20m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+150℃ |
| Process connection | Flange |
| Process pressure | -0.1~2.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

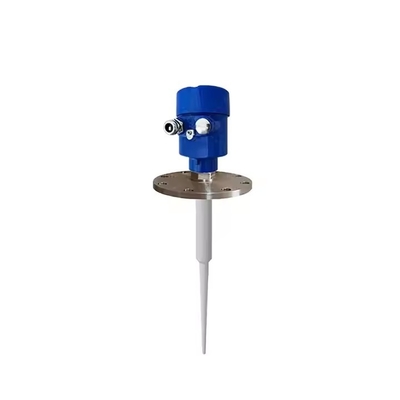

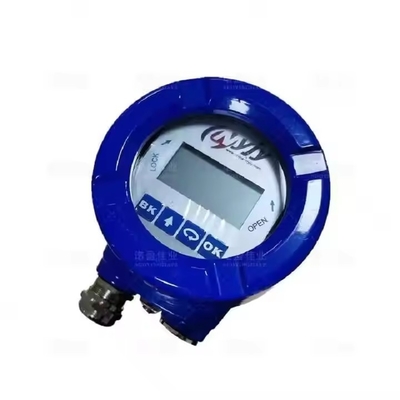

6.8GHz Non-contact Radar Level Transmitter Related Pictures
