| Brand Name: | NUOYING |
| Model Number: | NYRD803 |
| MOQ: | 1 pc |
| Price: | $329~$589/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD803 6.8GHz Radar Level Transmitter Flanged Radar Level Gauge 4-20mA+RS485 for Liquid Tanks of 35m Range
NYRD803 6.8GHz Radar Level Transmitter Product Description
The NYRD803 Radar level transmitter is a 6.8GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The transmitter transmits and receives very short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. Then the running time can be converted into a level signal through an electronic component. A special time extension method ensures stable and accurate measurements in a very short period of time.
NYRD803 6.8GHz Radar Level Transmitter Design Features
The intelligent radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. The product can be applied to various complex working conditions.
The "false echo learning" function enables the instrument to accurately identify the true echo under multiple false echo conditions, so as to obtain accurate measurement results.
NYRD803 6.8GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD803 |
| Typical application |
Unstirred liquids |
| Antenna material | 304 |
| Antenna type | Horn Antenna |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

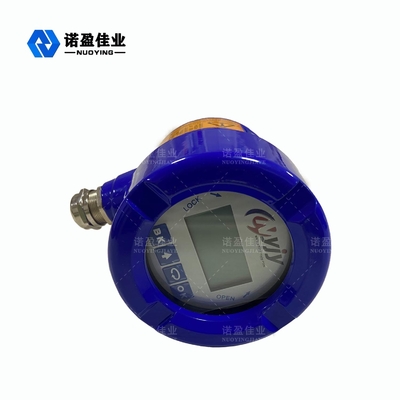

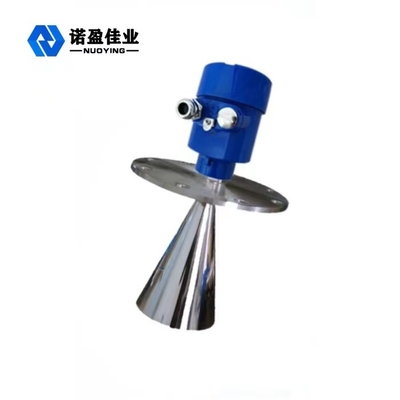

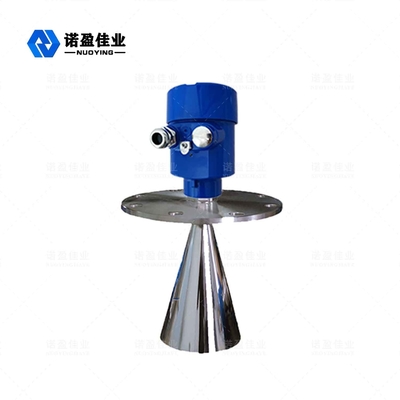

NYRD803 6.8GHz Radar Level Transmitter Related Pictures
