| Brand Name: | NUOYING |
| Model Number: | NYRD803S |
| MOQ: | 1 pc |
| Price: | $339~$699/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
6.8GHz High Temperature 4-20mA Output 35 Meters Radar Level Transmitter of Horn Antenna for Liquid Measurement
6.8GHz Radar Level Transmitter Product Description
The NYRD803S Radar level transmitter is a 6.8GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The transmitter transmits and receives very short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. Then the running time can be converted into a level signal through an electronic component. A special time extension method ensures stable and accurate measurements in a very short period of time.
6.8GHz Radar Level Transmitter Application Fields
1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
4. Paper: Storage tower, chemical material storage silo, etc.
5. Other: Quarry, environmental protection, shipbuilding and other industries.
6.8GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD803S |
| Typical application |
Liquids, especially suitable for high temperature conditions |
| Antenna material | 304 |
| Antenna type | Horn Antenna |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+300℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

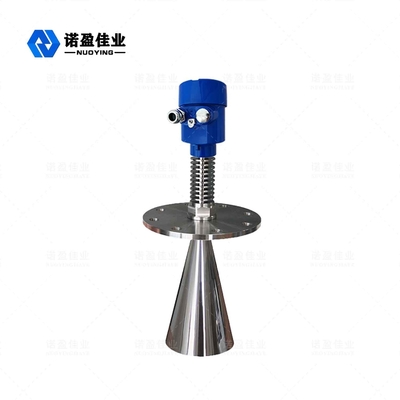

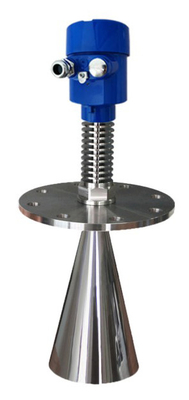

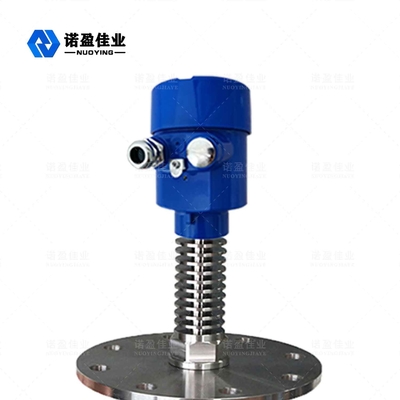

6.8GHz Radar Level Transmitter Related Pictures
