| Brand Name: | NUOYING |
| Model Number: | NYRD804 |
| MOQ: | 1 pc |
| Price: | $359~$569/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Factory NYRD804 6.8GHz Radar Level Gauge with Rotatable Flange and 4-20mA+Modbus Output for Solids Powders Granules
NYRD804 6.8GHz Radar Level Gauge Product Description
The NYRD804 Radar level transmitter is a 6.8GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The transmitter transmits and receives very short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. Then the running time can be converted into a level signal through an electronic component. A special time extension method ensures stable and accurate measurements in a very short period of time.
NYRD804 6.8GHz Radar Level Gauge Design Features
Various process connection modes and types of detection components can be customized according to customer requirements.
With pulse working mode, the product has extremely low emission power and can be installed in various metal and non-metal containers, without harm to human body and the environment.
NYRD804 6.8GHz Radar Level Gauge Technical Parameters
| Product Model | NYRD804 |
| Typical application |
Solids, powders and granules |
| Antenna material | 304 |
| Antenna type | Horn Antenna |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Rotatable flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

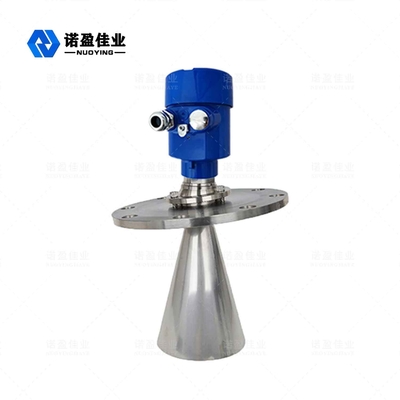

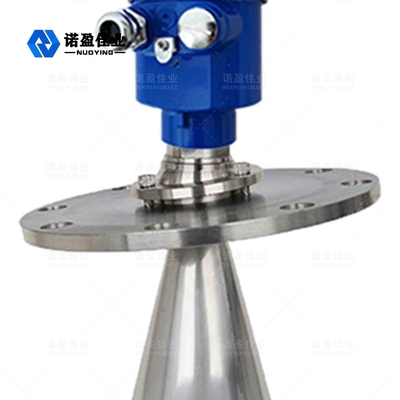

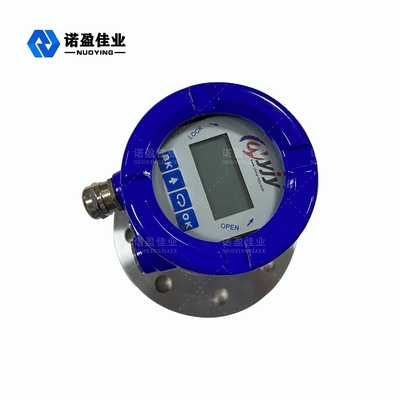

NYRD804 6.8GHz Radar Level Gauge Related Pictures
