| Brand Name: | NUOYING |
| Model Number: | NYRD804 |
| MOQ: | 1 pc |
| Price: | $289~$593/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD804 Radar Level Sensor Transmitter with 35m Range and 4-20mA Output to Measure Solids and Dust -40℃~+30℃ 6.8GHz
6.8GHz Radar Level Transmitter Design Features
The intelligent radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. The product can be applied to various complex working conditions.
The "false echo learning" function enables the instrument to accurately identify the true echo under multiple false echo conditions, so as to obtain accurate measurement results.
6.8GHz Radar Level Transmitter Application Fields
1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
4. Paper: Storage tower, chemical material storage silo, etc.
5. Other: Quarry, environmental protection, shipbuilding and other industries.
6.8GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD804 |
| Typical application |
Solids, powders and granules |
| Antenna material | 304 |
| Antenna type | Horn Antenna |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Rotatable flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

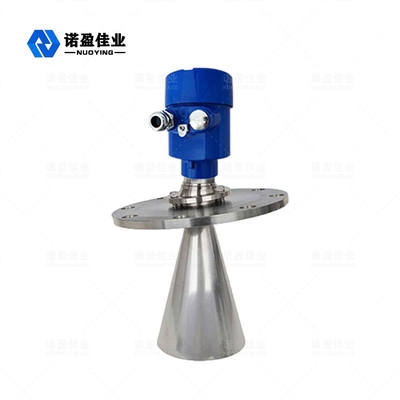

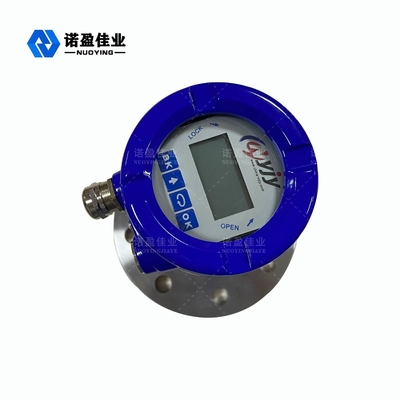

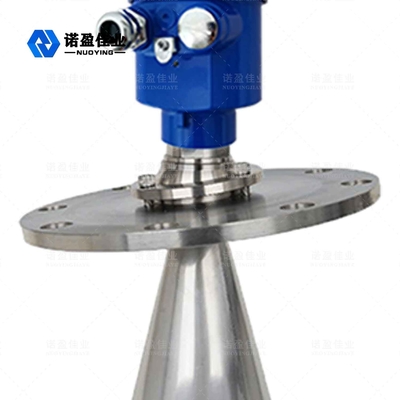

6.8GHz Radar Level Transmitter Related Pictures
