| Brand Name: | NUOYING |
| Model Number: | NYRD703 |
| MOQ: | 1 pc |
| Price: | $210~$500/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD703 1.8GHz Double Cable Type Guided Wave Level Transmitter to Measure Liquids, Powders and Solids with 30m Range
NYRD703 1.8GHz Double Cable Type Guided Wave Radar Level Transmitter Working Principle
The high-frequency microwave pulse emitted by the guide wave radar travels along the detection assembly (steel cable or steel rod). When the measured medium is encountered, the dielectric constant changes, causing reflection, and part of the pulse energy is reflected back. The time interval between the emitted pulse and the reflected pulse is directly proportional to the distance of the measured medium.
NYRD703 1.8GHz Double Cable Type Guided Wave Radar Level Transmitter Design Features
◎ Contact measurement with high accuracy for more accurate results
◎ Not affected by external environments such as medium temperature, adhesion, etc.
◎ Suitable for various complex working conditions and applications, such as high temperature, high pressure, media of low dielectric constant, etc.
◎ Can be installed in various metal and non-metallic containers, without any harm to human body and environment.
NYRD703 1.8GHz Double Cable Type Guided Wave Radar Level Transmitter Technical Parameters
| Product Model | NYRD703 |
| Typical application |
Powders, solids and liquids with low dielectric constant (such as methanol, kerosene, polypropylene solution, naphtha, etc.) |
| Transmission frequency | 1.8GHz |
| Antenna material | 304, 316 (optional) |
| Antenna type | Double cable antenna |
| Measuring range | 30m |
| Measuring accuracy | ±1mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

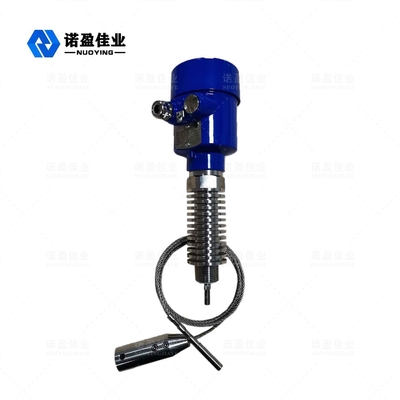

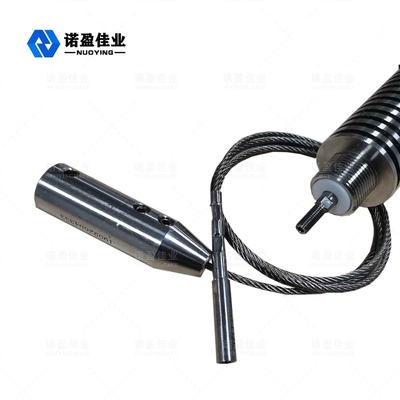

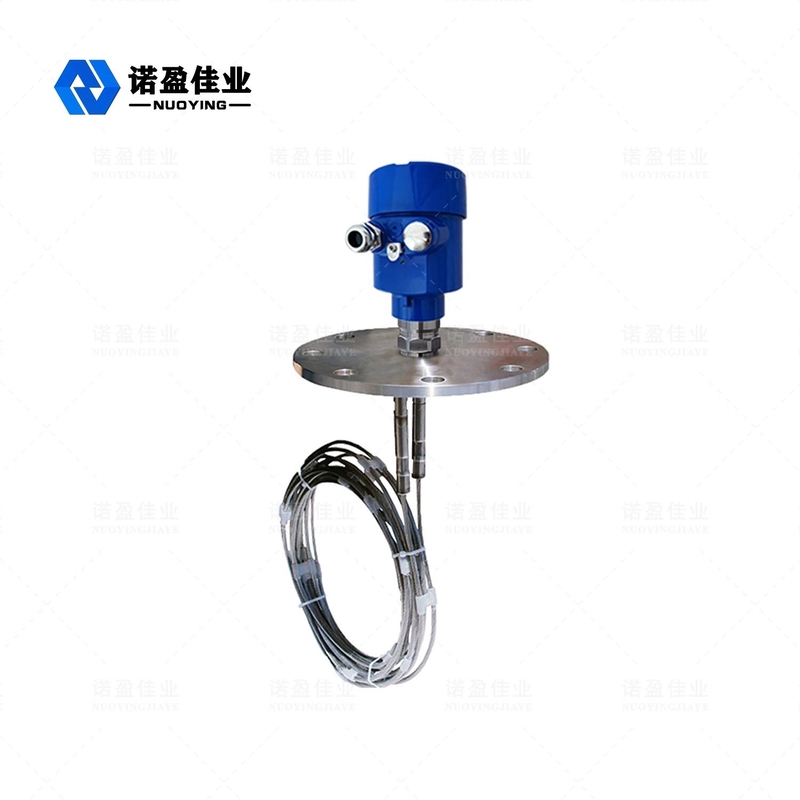

NYRD703 1.8GHz Double Cable Type Guided Wave Radar Level Transmitter Related Pictures
