| Brand Name: | NUOYING |
| Model Number: | NYRD705 |
| MOQ: | 1 pc |
| Price: | $239~$489/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD705 1.8GHz Coaxial Probe Guided Wave Radar Level Transmitter for Liquids with 6m/15m Range and Rod Antenna
NYRD705 1.8GHz Coaxial Probe Guided Wave Radar Level Transmitter Design Features
◎ Contact measurement with high accuracy for more accurate results
◎ Not affected by external environments such as medium temperature, adhesion, etc.
◎ Suitable for various complex working conditions and applications, such as high temperature, high pressure, media of low dielectric constant, etc.
◎ Can be installed in various metal and non-metallic containers, without any harm to human body and environment.
NYRD705 1.8GHz Coaxial Probe Guided Wave Radar Level Transmitter Application Fields
1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
4. Paper: Storage tower, chemical material storage silo, etc.
5. Other: Quarry, environmental protection, shipbuilding and other industries.
NYRD705 1.8GHz Coaxial Probe Guided Wave Radar Level Transmitter Technical Parameters
| Product Model | NYRD705 |
| Typical application |
Liquids, especially for liquid measurement in high temperature and high pressure environments |
| Antenna material | 304 |
| Antenna type | Rod antenna |
| Measuring range | 6m, 15m |
| Measuring accuracy | ±1mm |
| Power supply | 24VDC (two-wire, four-wire) |
| Medium temperature | -40~+500℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

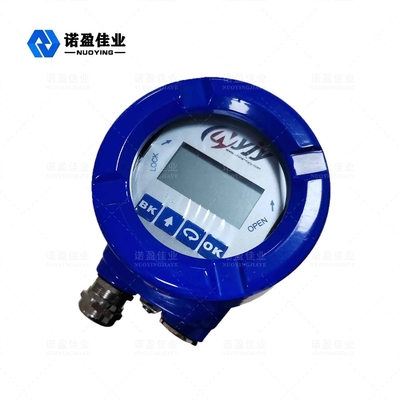

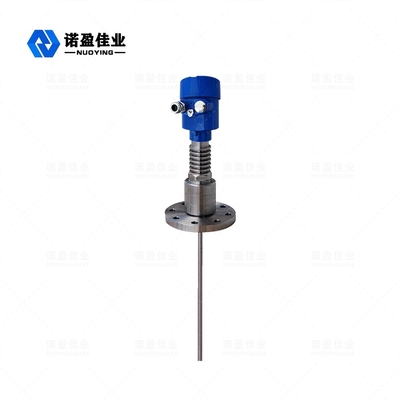

NYRD705 1.8GHz Coaxial Probe Guided Wave Radar Level Transmitter Related Pictures
