| Brand Name: | NUOYING |
| Model Number: | NYCSUL-501 |
| MOQ: | 1 pc |
| Price: | $73~$90/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYCSUL-501 4-20mA Ultrasonic Level Meter Water Liquid Sensor Ultrasonic Liquid Depth Level Meter with High Performance
NYCSUL-501 4-20mA Ultrasonic Level Meter Product Description
NYCSUL two-wire ultrasonic level meters are intelligent non-contact liquid level measuring instruments. The product has automatic power adjustment, gain control, temperature compensation, the use of advanced detectiorand calculation technology, interference signal suppression function, thus findamentally improve the measuringaccuracy of the instrument, to ensure the authenticity of the measurement results. Products can be widely used for liquid level measurement of various liquids, but also for distance measurement.
NYCSUL-501 4-20mA Ultrasonic Level Meter Working Principle
The ultrasonic level gauge is installed on the top of the container. Under the control of the electronic unit, the probe sends a beam of ultrasonic pulse to the object to be measured. The sound wave is reflected by the object surface, and part of the reflected echo is received by the probe and converted into electrical signals. The level change is determined according to the time difference between the transmission of the ultrasonic wave and the re reception of the ultrasonic wave and the known sound speed. The microwave signal is processed by the electronic device, Finally, it is converted into electrical signals related to the material level.
NYCSUL-501 4-20mA Ultrasonic Level Meter Technical Parameters
| Typical Application | Liquids (without agitation, foam and volatilization) |
| Product Model | NYCSUL-501 |
| Probe Type | Integrated |
| Probe Material | PP/PVC/PTFE/304 |
| Measuring Range | 0~20m (integrated), 0~40m (separated) |
| Measurement Accuracy | <0.25% (measuring range<20m), <0.5% (measuring range>20m) |
| Process Temperature | -20～+40℃ |
| Process Pressure | -0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC, 220VAC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |
| Display Mode | liquid level and distance (air height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65 |
| Explosion Proof Grade | Exia ll CT6 (optional) |
Note: Products can be customized according to the specific requirements of users.

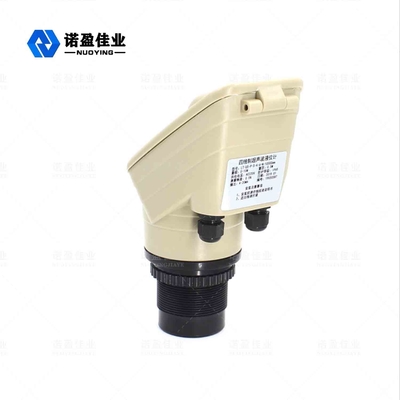

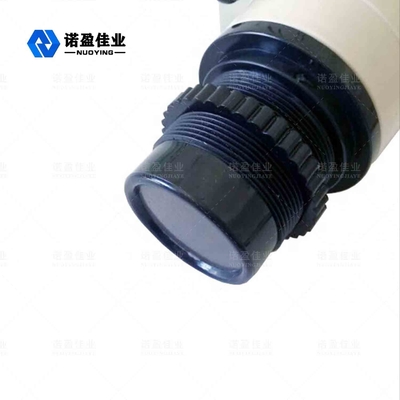

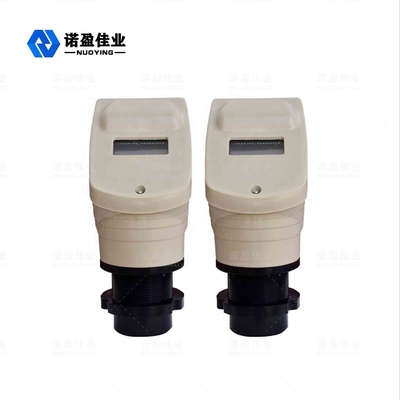

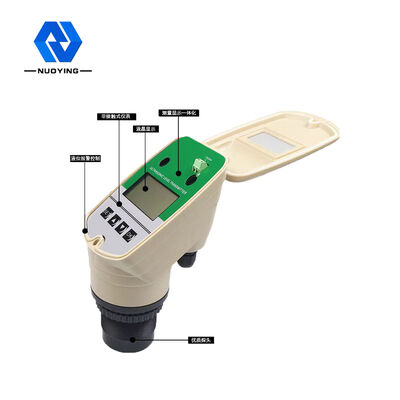

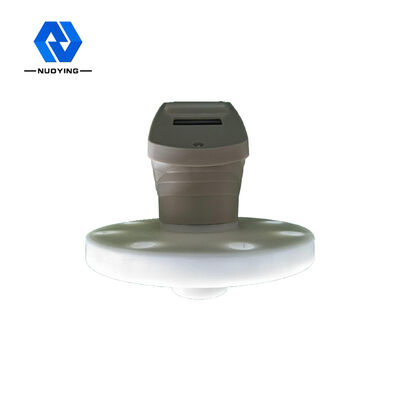

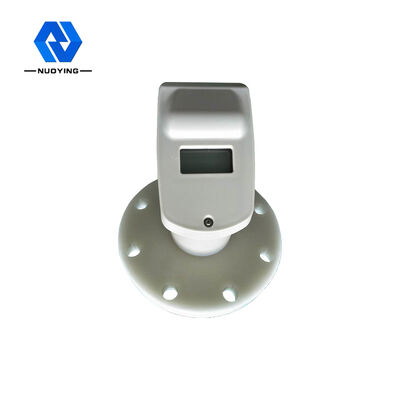

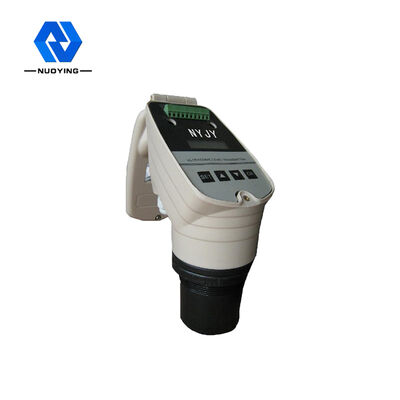

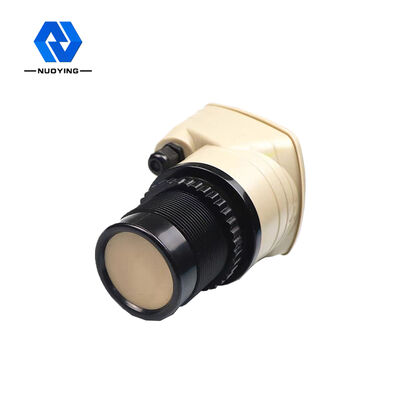

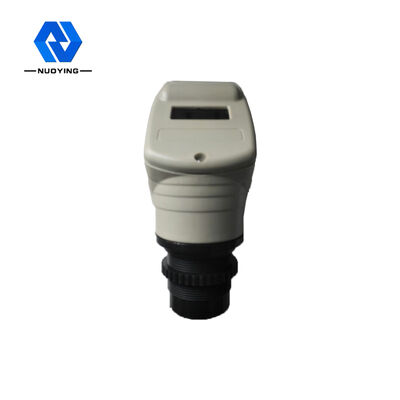

NYCSUL-501 4-20mA Ultrasonic Level Meter Related Pictures
