| Brand Name: | NUOYING |
| Model Number: | NYCSUL-502 |
| MOQ: | 1 pc |
| Price: | $175~$195/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYCSUL-502 24VDC Split Type Ultrasonic Level Meter with 4-20mA and Hart Output Oil Level Transmitter Sensor
NYCSUL-502 24VDC Split Type Ultrasonic Level Meter Product Description
NYCSUL two-wire ultrasonic level meters are intelligent non-contact liquid level measuring instruments. The product has automatic power adjustment, gain control, temperature compensation, the use of advanced detectiorand calculation technology, interference signal suppression function, thus findamentally improve the measuringaccuracy of the instrument, to ensure the authenticity of the measurement results. Products can be widely used for liquid level measurement of various liquids, but also for distance measurement.
NYCSUL-502 24VDC Split Type Ultrasonic Level Meter Design Features
◎ Reasonable design, excellent performance, simple structure, convenient installation, etc;
◎ Small angle probe is used for ultrasonic wave, with high transmitting power and high sensitivity;
◎ The upper and lower limit setting and alarm setting at any point can be used for continuous liquid measurement and liquid level control.
NYCSUL-502 24VDC Split Type Ultrasonic Level Meter Technical Parameters
| Typical Application | Liquids (without agitation, foam and volatilization) |
| Product Model | NYCSUL-502 |
| Probe Type | Split |
| Probe Material | PP/PVC/PTFE/304 |
| Measuring Range | 0~40m |
| Measurement Accuracy | <0.25% (measuring range<20m), <0.5% (measuring range>20m) |
| Process Temperature | -20～+40℃ |
| Process Pressure | -0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC, 220VAC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |
| Display Mode | liquid level and distance (air height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65 |
| Explosion Proof Grade | Exia ll CT6 (optional) |
Note: Products can be customized according to the specific requirements of users.

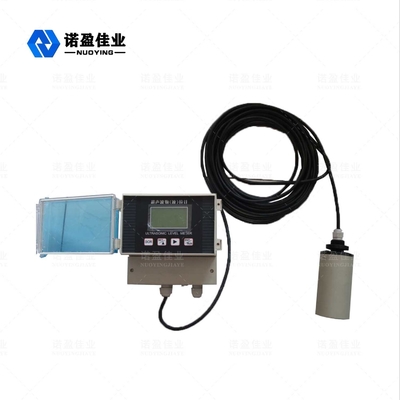

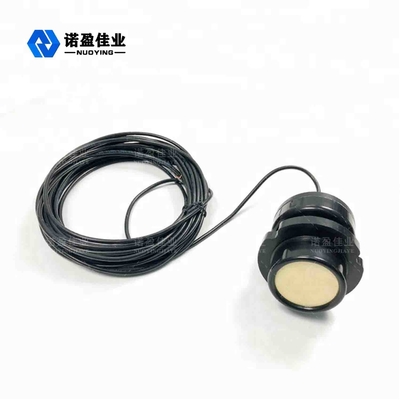

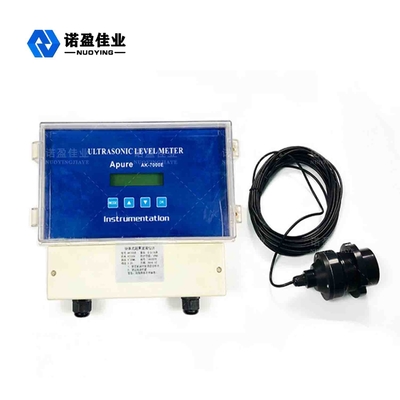

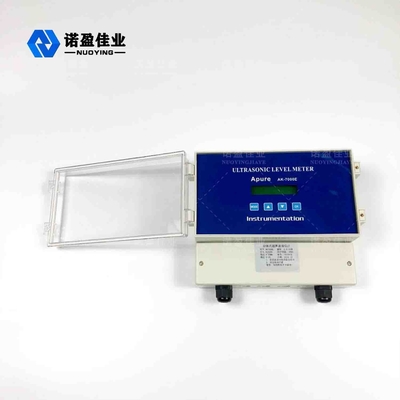

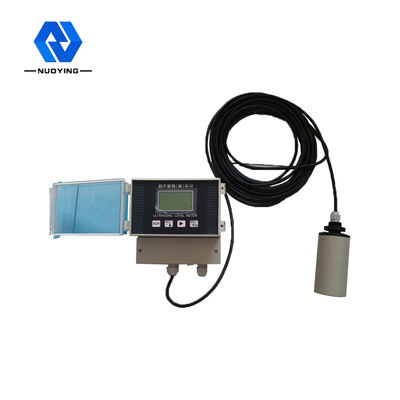

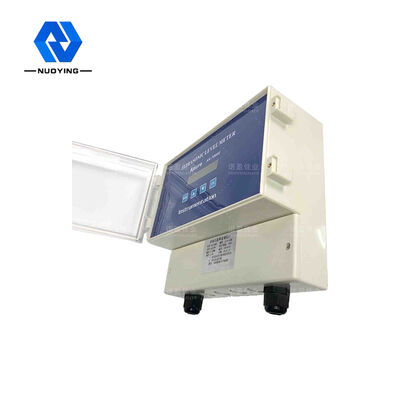

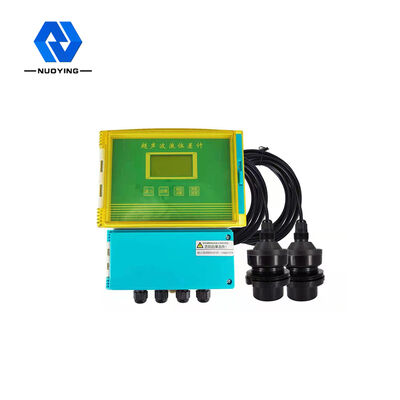

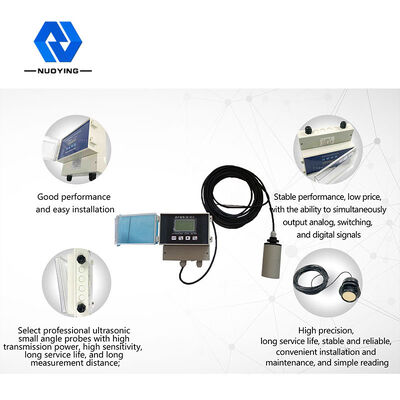

NYCSUL-502 24VDC Split Type Ultrasonic Level Meter Related Pictures
