| Brand Name: | NUOYING |
| Model Number: | NYCSUL-502 |
| MOQ: | 1 pc |
| Price: | $175~$210/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYCSUL-502 Ultrasonic Level Meter for Various Liquid Tanks with Split Probe
NYCSUL-502 Ultrasonic Level Meter Product Description
NYCSUL two-wire ultrasonic level meters are intelligent non-contact liquid level measuring instruments. The product has automatic power adjustment, gain control, temperature compensation, the use of advanced detectiorand calculation technology, interference signal suppression function, thus findamentally improve the measuringaccuracy of the instrument, to ensure the authenticity of the measurement results. Products can be widely used for liquid level measurement of various liquids, but also for distance measurement.
NYCSUL-502 Ultrasonic Level Meter Application Fields
Ultrasonic liguid level meters can be used for continuous liguid level measurement. Widely used in: petroleum, chemical industry, fertilizer, metallurgy, natural gas, power plant, mechanical manufacturing industry, ships, pharmaceutical plants, sewage treatment, food, wine and other industrial occasions of liguid level detection and control.
NYCSUL-502 Ultrasonic Level Meter Technical Parameters
| Typical Application | Liquids (without agitation, foam and volatilization) |
| Product Model | NYCSUL-502 |
| Probe Type | Split |
| Probe Material | PP/PVC/PTFE/304 |
| Measuring Range | 0~40m |
| Measurement Accuracy | <0.25% (measuring range<20m), <0.5% (measuring range>20m) |
| Process Temperature | -20～+40℃ |
| Process Pressure | -0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC, 220VAC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |
| Display Mode | liquid level and distance (air height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65 |
| Explosion Proof Grade | Exia ll CT6 (optional) |
Note: Products can be customized according to the specific requirements of users.

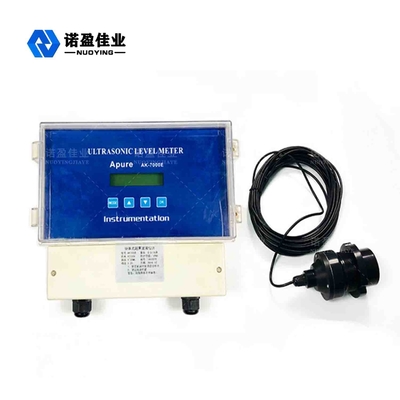

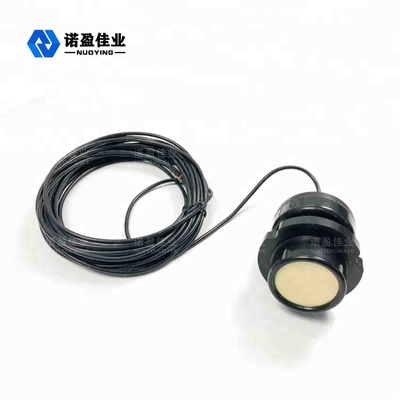

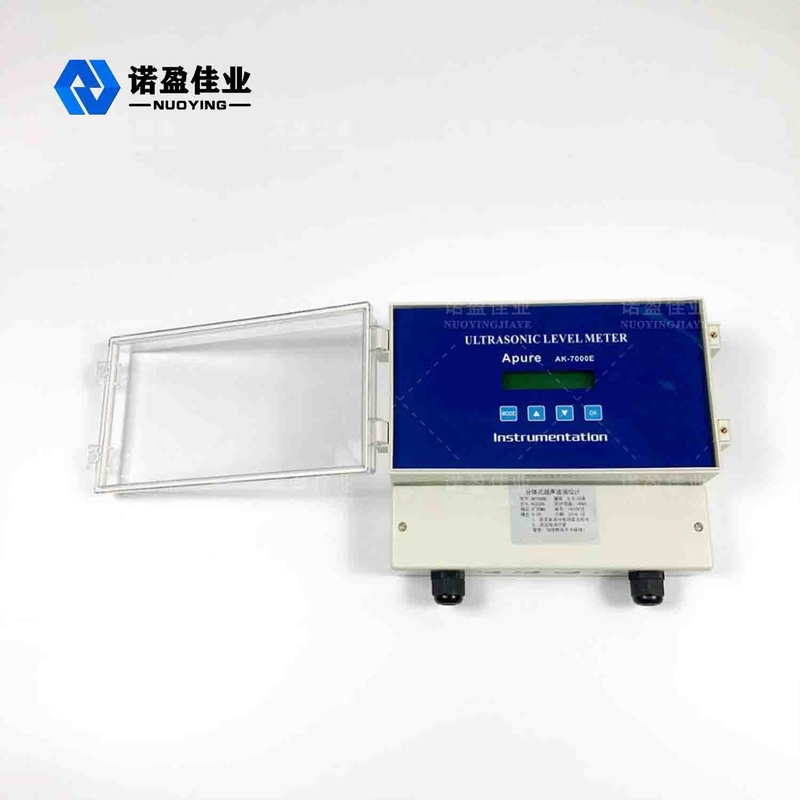

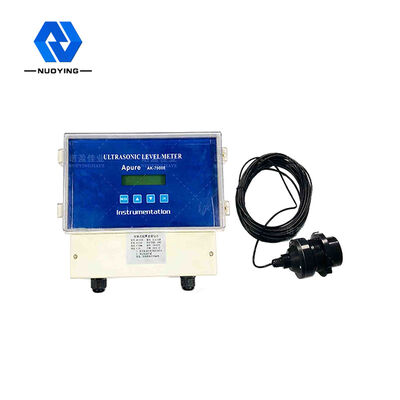

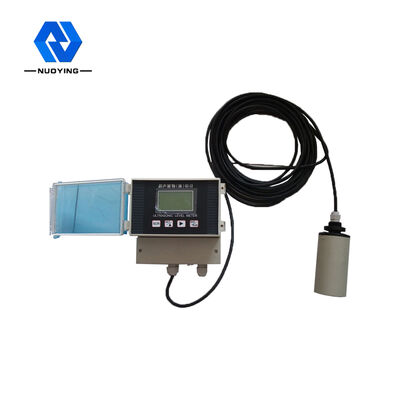

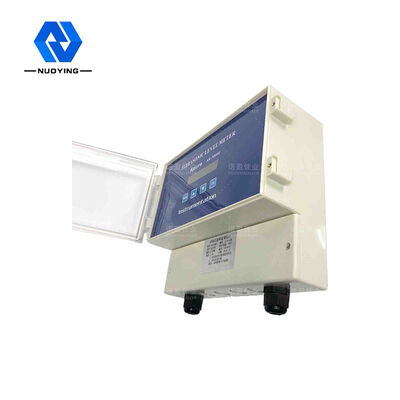

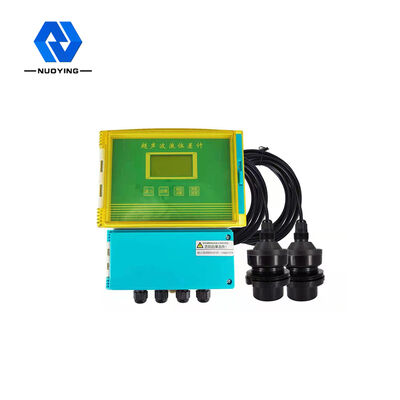

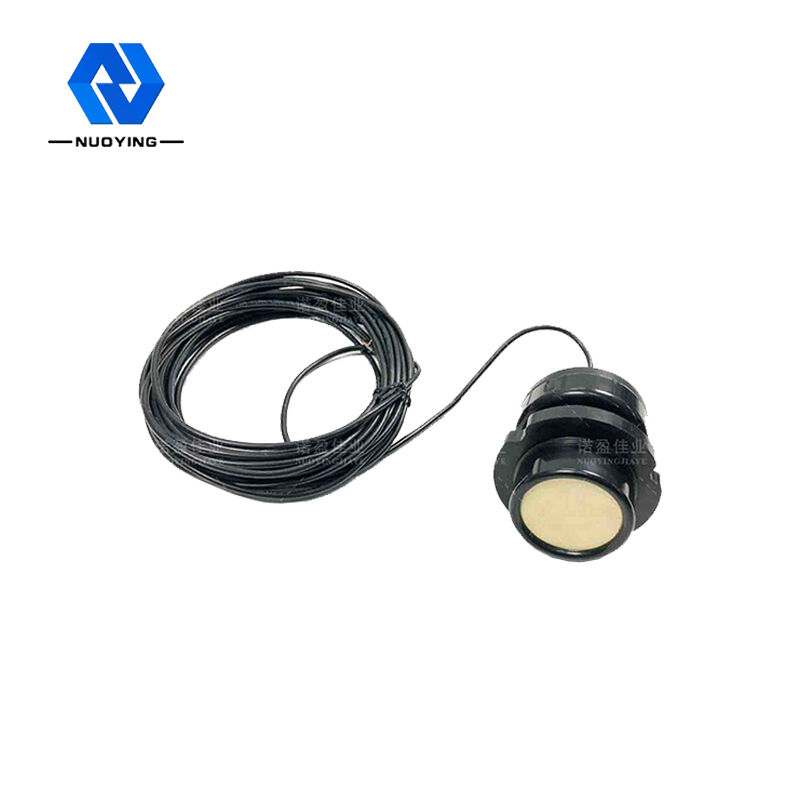

NYCSUL-502 Ultrasonic Level Meter Related Pictures
