| Brand Name: | NUOYING |
| Model Number: | NYCSUL-503 |
| MOQ: | 1 pc |
| Price: | $96~$179/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYCSUL-503 Affordable Intelligent Wireless Ultrasonic Level Gauge Ultrasonic Level Sensor with Wireless Connectivity
NYCSUL-503 Affordable Intelligent Wireless Ultrasonic Level Gauge Design Features
◎ Reasonable design, excellent performance, simple structure, convenient installation, etc;
◎ Small angle probe is used for ultrasonic wave, with high transmitting power and high sensitivity;
◎ The upper and lower limit setting and alarm setting at any point can be used for continuous liquid measurement and liquid level control.
NYCSUL-503 Affordable Intelligent Wireless Ultrasonic Level Gauge Application Fields
Ultrasonic liguid level meters can be used for continuous liguid level measurement. Widely used in: petroleum, chemical industry, fertilizer, metallurgy, natural gas, power plant, mechanical manufacturing industry, ships, pharmaceutical plants, sewage treatment, food, wine and other industrial occasions of liguid level detection and control.
NYCSUL-503 Affordable Intelligent Wireless Ultrasonic Level Gauge Technical Parameters
| Typical Application | Liquids (without agitation, foam and volatilization) |
| Product Model | NYCSUL-503 |
| Probe Type | Integrated |
| Probe Material | PP/PVC/PTFE/304 |
| Measuring Range | 0~20m |
| Measurement Accuracy | <0.25% (measuring range<20m) |
| Process Temperature | -20～+40℃ |
| Process Pressure | -0.1~0.1MPa (normal pressure) |
| Process Connection | thread, flange (optional) |
| Power Supply | 24VDC, 220VAC |
| Signal Output | 4...20mA/HART/RS485/Modbus… |
| Display Mode | liquid level and distance (air height) |
| Setting Output | upper limit setting, lower limit setting |
| Protection Grade | IP 65 |
| Explosion Proof Grade | Exia ll CT6 (optional) |
Note: Products can be customized according to the specific requirements of users.

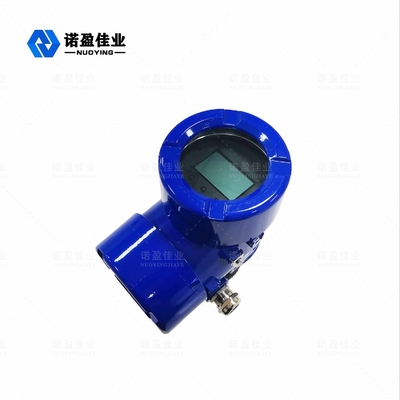

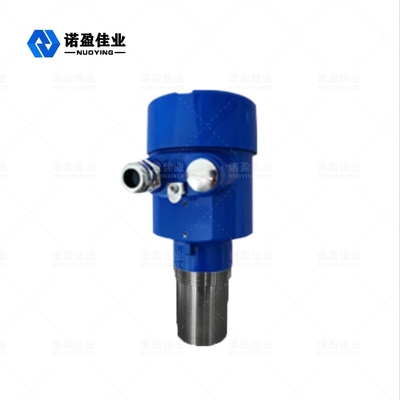

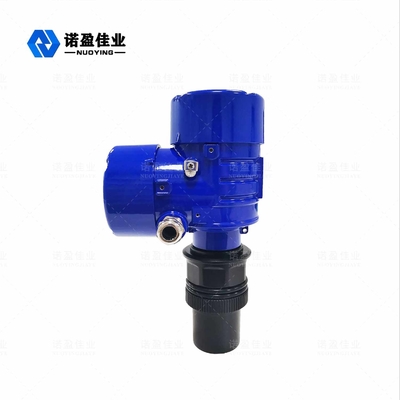

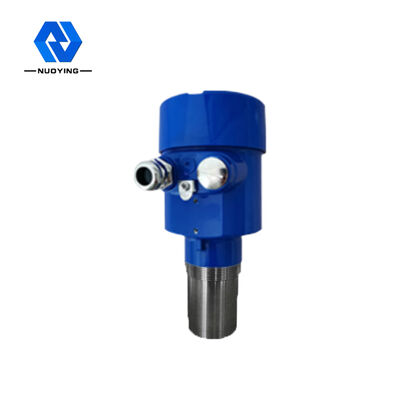

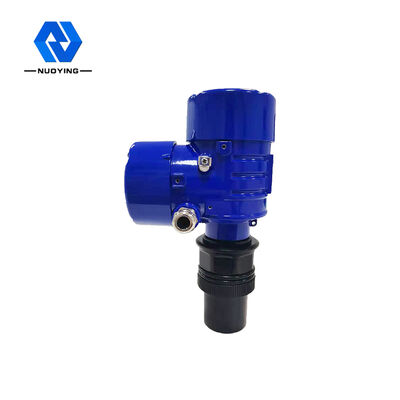

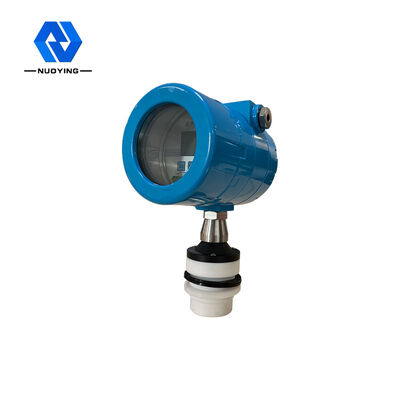

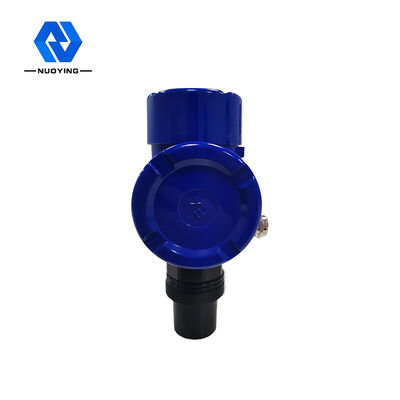

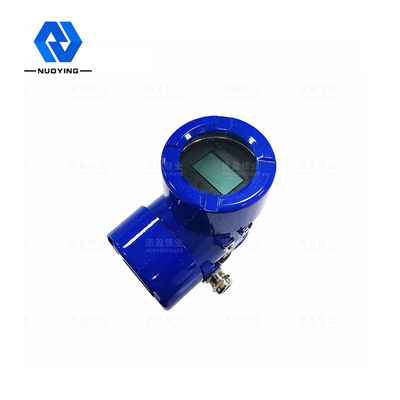

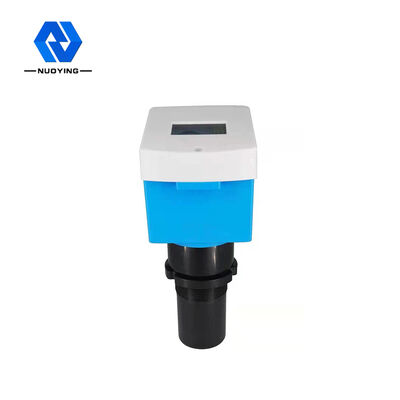

NYCSUL-503 Affordable Intelligent Wireless Ultrasonic Level Gauge Related Pictures
