Radar Level Transmitter Product introduction

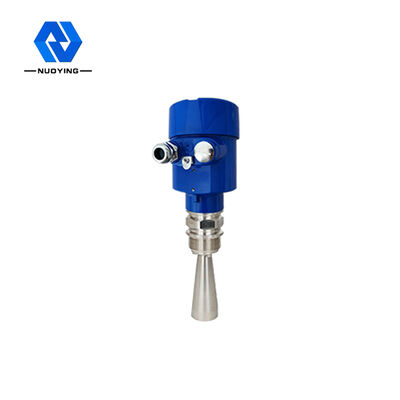

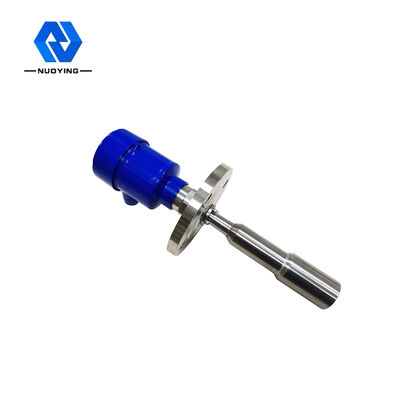

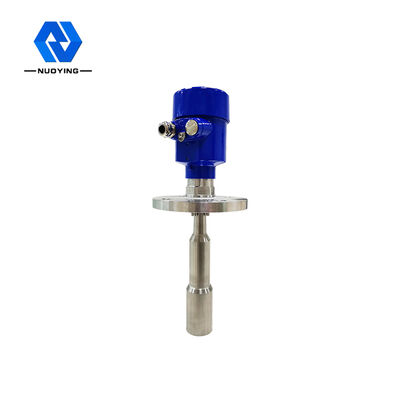

The radar level meter NYR D80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.

Radar Level Transmitter Technical parameters​

Note: customized on demand

Radar Level Transmitter Operating principle

The radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. After the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, The time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)Measurement base surface: Thread bottom or flange cover
Note: Use radar object timing to ensure that the highest level can not enter the measurement blind area(area D in figure)

Radar Level Transmitter Design characteristics

• The antenna is small in size and easy to install; non-contact radar, no wear and no pollution.
• Almost free from corrosion and fbam; almost unaffected by changes in water vapor, temperature and pressure in the atmosphere. ◎The severe dust environment has little effect on the work of high frequency level gauges. ◎The shorter wavelengths provide better reflection fbr sloping solid surfaces.
• The beam angle is small, the energy is concentrated, and the echo capability is enhanced while avoiding interference. ◎The measurement dead zone is smaller, and good results can also be obtained fbr small can measurement. ◎High signal-to-noise ratio, even in the case of fluctuations, can achieve better performance. ◎High frequency is the best choice fbr measuring solid and low dielectric constant media.
