|Measuring Range:||See Detailed Parameter Table||Power Supply:||24VDC (±Power 30%)|
|Process Connection:||Flange(optional)||Ambient Temperature:||-40〜85 °C|
|Operating Temperature:||-25 〜125 °C (> 125 °C Customizable)||Signal Output:||4-20mA, 4-20mA/HART(Two Wire/FOUR Wire)|
|Blast Class:||Exia II C T4 Ga||Protection Grade:||IP67|

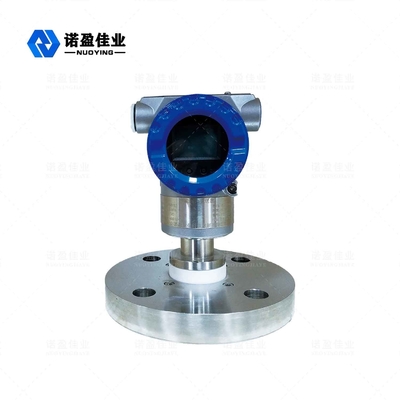

Flange Mounting High Accuracy Pressure Transmitter,
pressure transmitter 4-20ma Four Wire,
4-20ma Pressure Transmitter Gauge

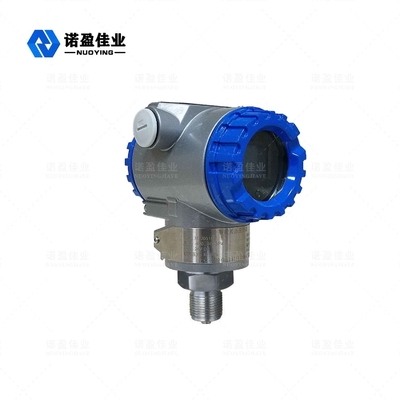

NP-3051 Pressure Sensor Transmitter

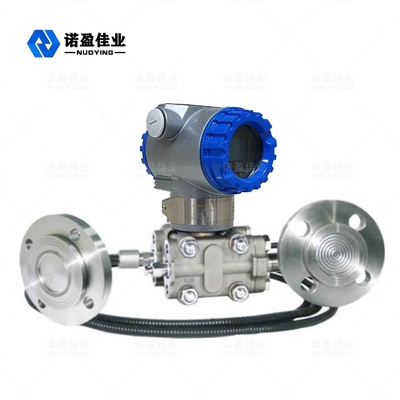

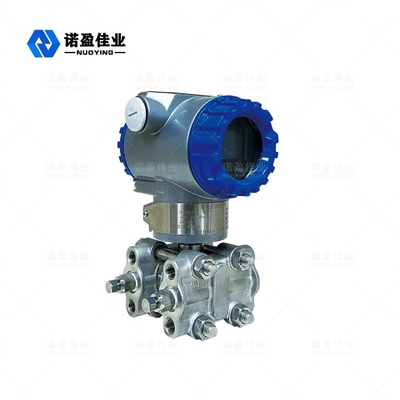

NP3051 series intelligent differential pressure / pressure transmitter is an intelligent field instrument in accordance with HART protocol. The original imported diaphragm is designed with a microprocessor and a HART communication circuit. It can communicate bidirectional with any host computer software supporting HART communication protocol or 268,275 hand-operated devices that conform to HART communication protocoL With 5 bits intelligent digital liquid crystal display, the differential pressure / pressure value, output current value and output percentage value can be displayed on the spot. The debugging is very convenient, and the digital and intelligent functions of the transmitter are realized. And with the traditional 4〜20mA simulation input The output signal is compatible so that the exchange with the analog table can be achieved without changing the control system.
NP-3051 Pressure Sensor Transmitter Technical Parameter
|Typical applications||liquid gas,steam|
upper round URL
|Ambient temperature||-40 〜85 °C|
|Process temperature||-25 〜125 °C (> 125 °C customizable)|
|Process connection||Flange mounting (optional)|
|Power supply||24VDC (±Power 30%)|
|Power effects||< 0.005 /r/v|
|Damping time||O.lg 16s adjustable|
|Filling fluid||silicone oil, inert oil (optional)|
|Field display||LCD (optional)|
|Level of protection||IP67|
|Blast class||Exia II C T4 Ga|
※ Note: Products can be customized according to the specific requirements of users!
NP-3051 Pressure Sensor Transmitter Operating Principle
NP3051 series of intelligent differential pressure / pressure transmitters have a sensor assembly with variable capacitance, called ”6” chamber. The process pressure.
NP-3051 Pressure Sensor Transmitter Design Features
◎ High precision, good stability;
◎ It has the function of continuous self-diagnosis, linear compensation and digital fine-tuning.
◎ It can adjust the zero bit on the spot, measure range, and realize remote adjustment by the remote hand manipulator and computer.
◎ Linear or square root output can be selected according to different applications.
◎ The damping time can be set between 0.1 and 16s.
◎ The conversion of pressure units between KPa?Pa,InH2O,bar and others can be realized.
◎ The failure and safety mode can be set by turning the failure / safety switch.
◎ With single point, multi-point and burst mode;
◎ The utility model has the function of power off protection and can automatically save its working data when the power is off.
◎ Solid components, connection-type printed circuit board small, light weight, strong seismic;
◎ Good one-way overload protectio.
