Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

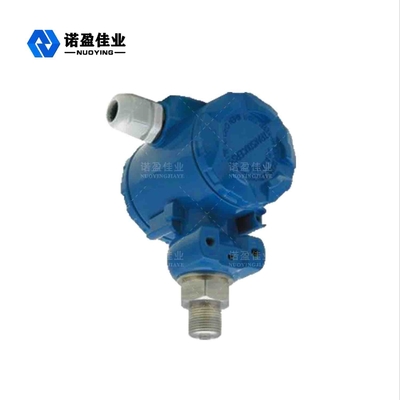

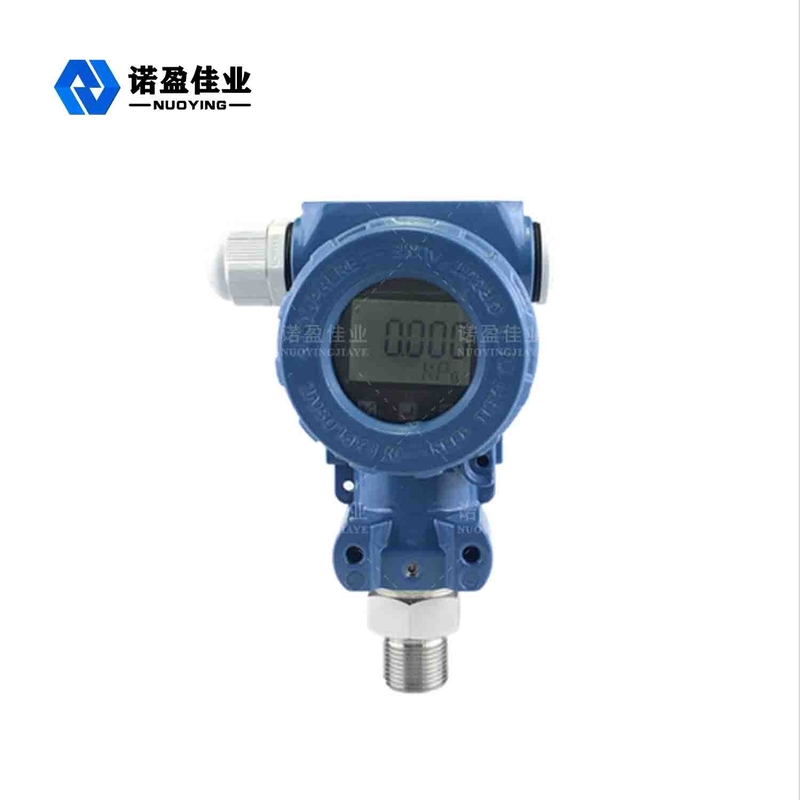

Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter

Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter
Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter

Large Image :  Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter

Product Details:
Place of Origin: China
Brand Name: NUOYING
Certification: Explosion-proof certificate
Model Number: NP-93420-IIC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100.00-$300.00
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 100 units a month

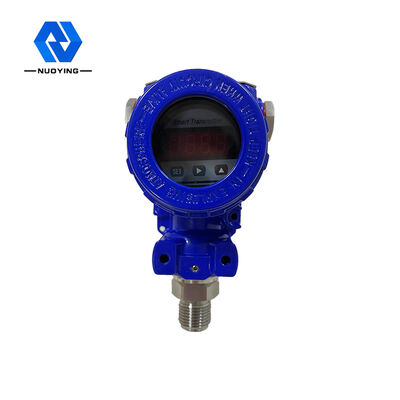

Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter

Description
Ambient Temperature: -40~+85℃ Process Temperature: -25~+125℃
The Connection: Screw Thread, Flange(optional) Damping Time: 0.1-16s
Diaphragm Material: 316L Shell Material: Aluminum Stainless Steel
Protection Grade: IP65 Power Supply: 12-36 VDC (±30%).
High Light:

Aluminum Pressure Sensor Transmitter

,

Pressure Sensor Transmitter 60MPa

,

60MPa Liquid pressure transmitter

Pressure Sensor Transmitter Measures The Pressure Of Liquid Gas And Steam

Pressure Sensor Transmitter



Pressure Sensor Transmitter Working principle



Process pressure via the pressure sensor to change pressure signal to electrical signal, through the difference normalized amplifier, the output amplifier amplification, then via current voltage (V/I) converter, transformed as 4-20mA or 0-10 mADC standard current signal.



Pressure Sensor Transmitter Technical Data



Typical application gas and liquid that compatible with SS316
Accuracy 0.25%F·S ,0.5%F·S
Range -95kPa~60MPa
Diaphragm materia 316L (optional)
Temperature Coefficient ≤0.02%/℃
Process temperature -10℃~+80℃
Storage Temperature -40℃~+125℃
Full Range Temperature Coefficient ≤0.02%/℃
Relative Humidity <95%
Process connection Thread,flange (optional)
Overload Limit: 150%-200% of rated range
Signal output 4~20mADC two wire or 0~10mADC three wire
Power Supply 12.5V-36V,standard power supply is24VDC
Load Resistance ≯750Ω(See below diagram 1 for load characteristic )
Mechanical Protection IP65
Explosion Class: iaⅡCT5 Ex iaⅡCT5



Aluminum Pressure Sensor Transmitter 60MPa Liquid Pressure Transmitter 0

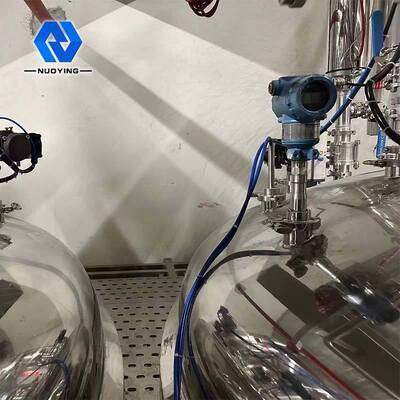

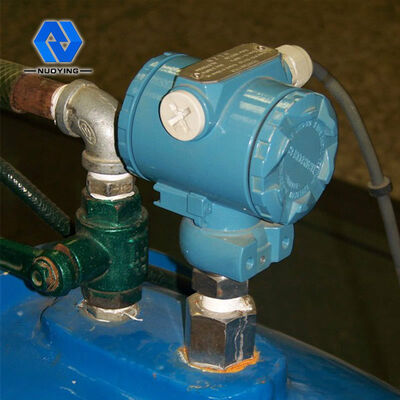

Pressure Sensor Transmitter Application



Widely used in petroleum, chemical industry, metallurgy, electric power, light industry, building materials, medicine, environmental protection, scientific research, and other enterprises and institutions, realize to test the process fluid pressure, and is suitable for various occasions all-weather environment and all kinds of corrosive liquid.



Pressure Sensor Transmitter Characteristics



  • High accuracy, high stability. Except import original sensor has been used laser correction, for temperature drifting, it is also subtly compensated, therefore in the working temperature range, the nonlinear for transmitter is small, and temperature is stable.
  • Good cost performance.
  • Reliable mechanical protection, explosion protection, suitable for all kinds of severe environments.
  • 4 ~20mA standard current signal output, two wire, or 0 ~ 10 mADC standard current signal output, three wire system.
  • Can be used for measuring viscous, crystallization and corrosive medium.
  • Small volume, light weight, installation/ adjustment, easy to use.

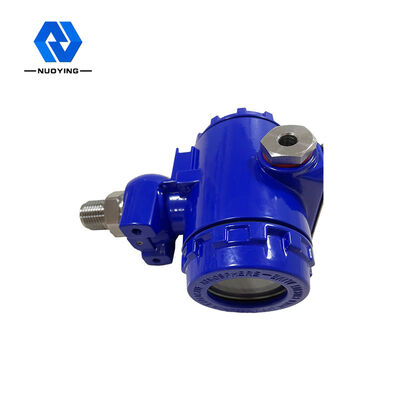

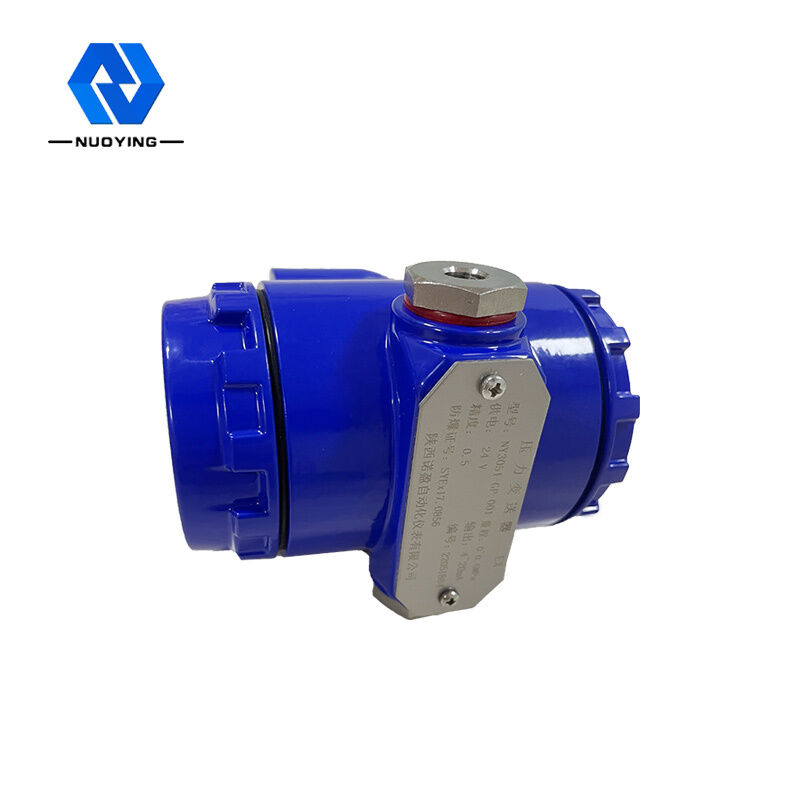

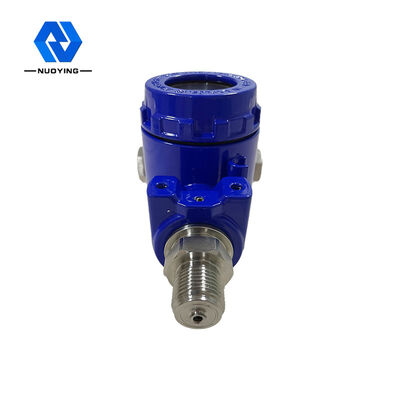

Pressure Sensor Transmitter Physical Properties



  • Isolate diaphragm: SS316 or ceramics diaphragm
  • Wetted parts: stainless steel
  • Sealing ring: NBR
  • Housing: Aluminium alloy
  • Body plating: epoxy resin
  • Process connection type: M20×1.5 male ,1/2NPT male
  • Electric connection: cable hole is 8
