Product Details:
|
| Medium: | Liquid | The Temperature: | -40-85℃ |
|---|---|---|---|
| Pressure: | Atmospheric Pressure | The Power Supply: | 24VDC |
| The Output: | 4-20mA/HART/RS485 | Diaphragm Material: | 316L |
| Damping Time: | 0.1-16s | Precision Grade: | 0.1、0.2 |
| High Light: | Die Cast water differential pressure transmitter,water differential pressure transmitter 24VDC,24VDC diff pressure transmitter |
||

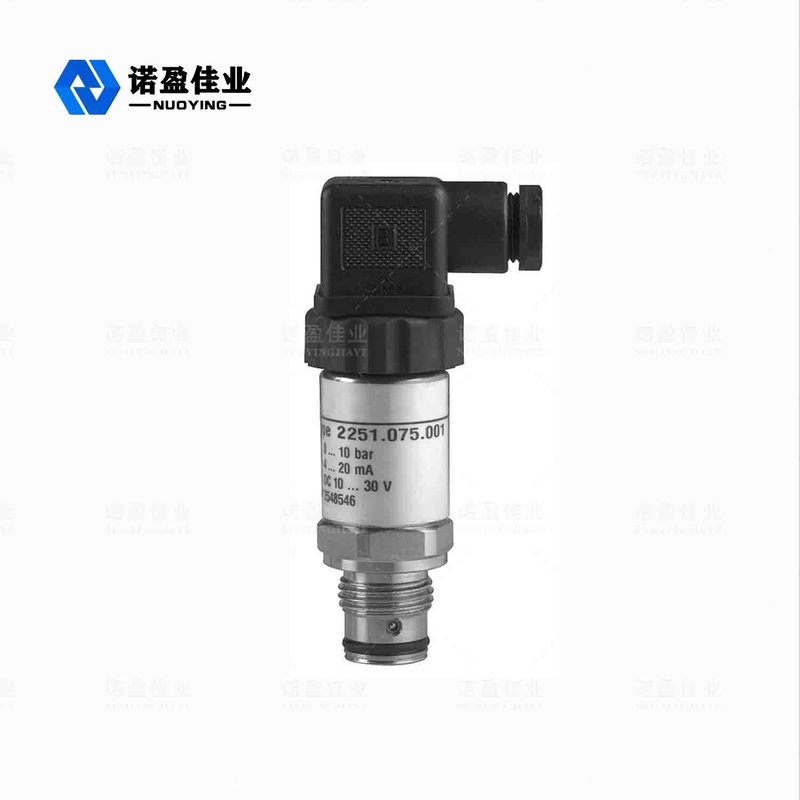

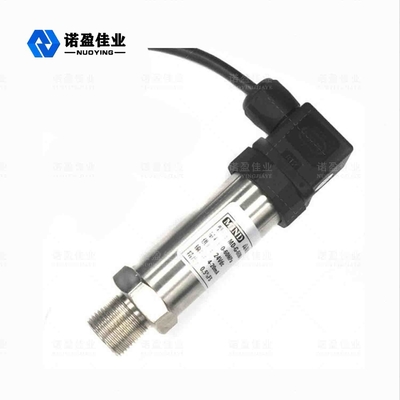

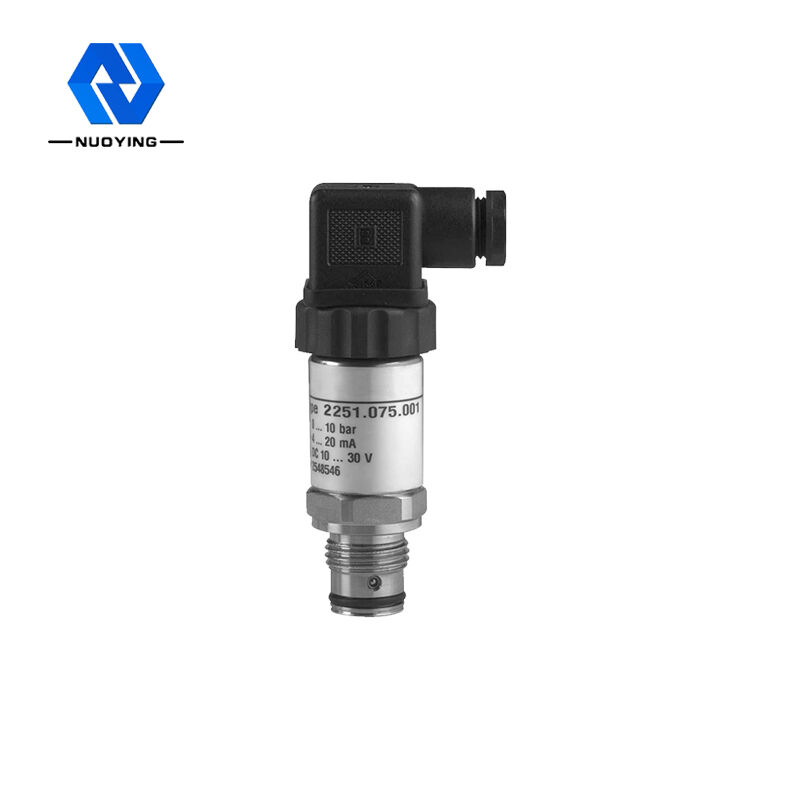

Aluminum Alloy Die-Cast Housing Pressure Sensor Transmitter
Description
The pressure switches NP-93420 use of t time ested ceramic or thick film sensor, switching currents from a few μA up to 500mA can be switched by the output transistors.
The high-quality stainless steel housing qualifies the NP-93420 also for the usage under adverse conditions. For the higher pressure ranges all wetted parts are made of stainless steel, therefore working with almost every media. The NP-93420 are multifunctional applicable for measurement tasks within hydraulic and pneumatic applications.
Aluminum Alloy Die-Cast Housing Pressure Sensor Transmitter Parameter
| pressure range | Bar | 1 | 2 | 5 | 10 | 16 | 25 | 60 | 100 | 160 | 250 | 400 | 600 |
| Pai | 15 | 30 | 75 | 145 | 230 | 370 | 900 | 1500 | 2300 | 3600 | 600 | 9000 | |
| Max. overload pressure | x5 | x3 | x2 | x1.5 | x1.3 | ||||||||
| Min. breakdown pressure | x6 | x4 | x3 | x2 | x1.6 | ||||||||
Aluminum Alloy Die-Cast Housing Pressure Sensor Transmitter Dimensions
Aluminum Alloy Die-Cast Housing Pressure Sensor Transmitter Applications
Aluminum Alloy Die-Cast Housing Pressure Sensor Transmitter Features
Aluminum Alloy Die-Cast Housing Pressure Sensor Transmitter Model selection
| NP-93420 CX | - | PG | 001 | 14 | H | 2A | Q | detail |
| NP-93420CX | Electronic pressure switch | |||||||
| P | positive pressure | |||||||
| N | negative pressure | |||||||
| 001 | setting range:-1…1bar or 0…1ba | |||||||
| 002 | setting range:-1…2bar or 0…2ba | |||||||
| 005 | setting range:-1…2bar or 0…5ba | |||||||
| 010 | setting range:0…10bar | |||||||
| 025 | setting range:0…25bar | |||||||
| 060 | setting range:0…60bar | |||||||
| 100 | setting range:0…100bar | |||||||
| 160 | setting range:0…160bar | |||||||
| 250 | setting range:0…250bar | |||||||
| 400 | setting range:0…400bar | |||||||
| 600 | setting range:0…600bar | |||||||
| G14 | connection screw G1/4 | |||||||
| G12 | connection screw G1/2 | |||||||
| H | connection screw male | |||||||
| 1S | 1 switching value output | |||||||
| 2S | 2 switching value output | |||||||
| 1A | 1 switching value output +1 analog output | |||||||
| 2A | 2 switching value output +1 analog output | |||||||
| 3A | Q | M12*1 connector |
