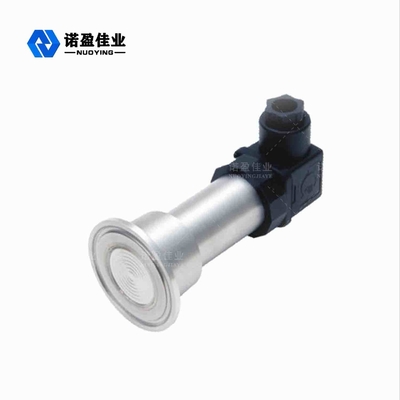

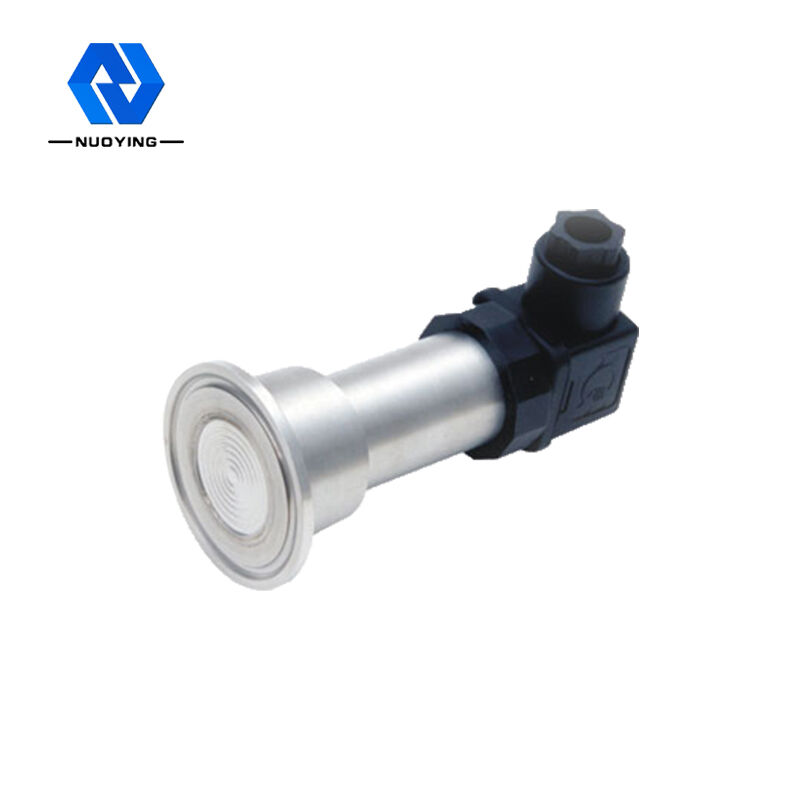

NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter

NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter
NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter

Large Image :  NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter

Product Details:
Place of Origin: China
Brand Name: NUOYING
Certification: Explosion-proof certificate
Model Number: NP-93420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $99.00-$199.00
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 100 units a month

NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter

Description
Ambient Temperature: -40~+85℃ Process Temperature: -25~+125℃
The Connection: Screw Thread, Flange(optional) Relative Humidity: <95%
Diaphragm Material: 316L Explosion Class: ExiaⅡCT5
Protection Grade: IP65 Power Supply: 12-36 VDC (±30%).
High Light:

316L Pressure Sensor Transmitter

,

IP65 Gas Pressure Transmitter

,

IP65 natural gas pressure sensor

Pressure Sensor Transmitter



Pressure Sensor Transmitter Working principle



The NP93420 series pressure transmitter in general sense is mainly composed of load cell sensor (also known as pressure sensor), measuring circuit and process connector. It can change the physical pressure parameters such as gas and liquid felt by the load cell sensor into the standard electrical signal (such as 4~20mADC, etc.), to supply indicating alarm, recorder, regulator and other secondary instruments for measurement, indication and process adjustment.

Pressure transmitter is a kind of instrument that accepts pressure variable and converts pressure variation into standard output signal in a certain proportion after transferring the sense. The transmitter output signal is transmitted to the central control room for pressure indication, recording or control.



NP93420 316L Pressure Sensor Transmitter IP65 Liquid Gas Pressure Transmitter 0



Pressure Sensor Transmitter Technical Parameter



Typical application gas and liquid that compatible with SS316
Accuracy 0.25%F·S ,0.5%F·S
Range -95kPa~60MPa
Diaphragm materia 316L (optional)
Temperature Coefficient ≤0.02%/℃
Process temperature -10℃~+80℃
Storage Temperature -40℃~+125℃
Full Range Temperature Coefficient ≤0.02%/℃
Relative Humidity <95%
Process connection Thread,flange (optional)
Overload Limit: 150%-200% of rated range
Signal output 4~20mADC two wire or 0~10mADC three wire
Power Supply 12.5V-36V,standard power supply is24VDC
Load Resistance ≯750Ω(See below diagram 1 for load characteristic )
Mechanical Protection IP65
Explosion Class Ex iaⅡCT5





Pressure Sensor Transmitter Application



Widely used in petroleum, chemical industry, metallurgy, electric power, light industry, building materials, medicine, environmental protection, scientific research, and other enterprises and institutions, realize to test the process fluid pressure, and is suitable for various occasions all-weather environment and all kinds of corrosive liquid.



Pressure Sensor Transmitter Characteristics



  • The output is stable, the sensitivity is high, the influence of interference and noise is relatively small, the corresponding cost of amplifier circuit is reduced, and the resolution is greatly improved.
  • Special V / I integrated circuit, few peripheral devices, high reliability, simple maintenance, easy, small volume, light weight, easy to install and debug.
  • Aluminum alloy die-casting shell, three-end isolation, electrostatic spray plastic protective layer,durable.
  • 4-20mA DC two-wire signal transmission, strong anti-interference ability, long transmission distance.
  • LED,LCD, pointer three indicator heads, site reading is very convenient. Can be used to measure viscous,crystalline and corrosive media.
  • When used in dangerous and explosive fields, diffused silicon pressure transmitter is adopted. The product has the characteristics of low current, low voltage and low power consumption. It belongs to intrinsically safe and explosion-proof product and is equipped with explosion-proof certificate.
  • Adopting a series of protective measures, such as stainless steel material and special protective structure, and amplifying circuit to protect against lightning strike, anti-jamming, anti-overvoltage, overcurrent, etc., it improves the ability of reliable sealing and anticorrosion and anti-adverse working environment. Fully suitable for general industrial field measurement and control needs.



Pressure Sensor Transmitter Physical Properties



  • Isolate diaphragm: SS316 or ceramics diaphragm
  • Wetted parts: stainless steel
  • Sealing ring: NBR
  • Housing: Aluminium alloy
  • Body plating: epoxy resin
  • Process connection type: M20×1.5 male ,1/2NPT male
  • Electric connection: cable hole is 8
