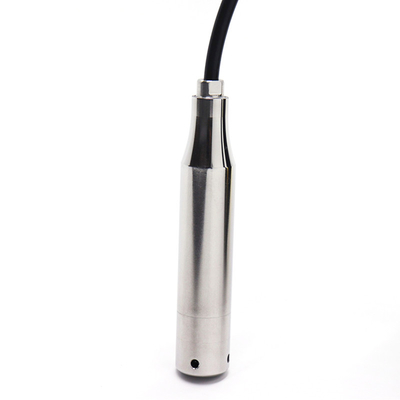

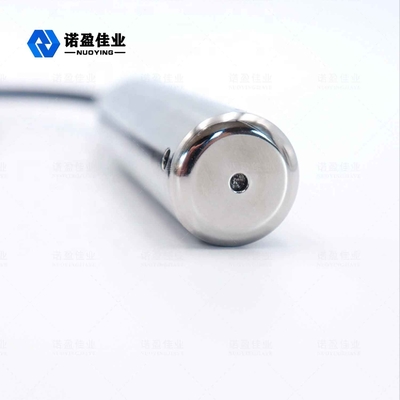

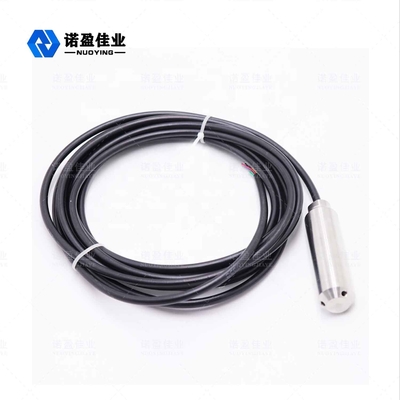

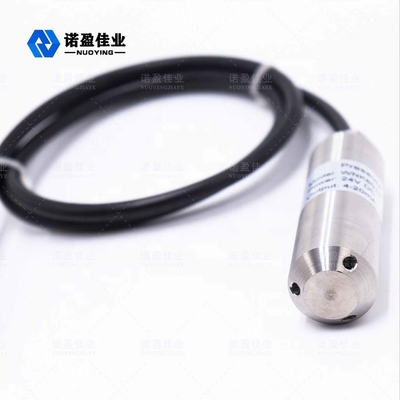

0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well

0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well
0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well 0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well 0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well 0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well

Large Image :  0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NH93420
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $80 to $300
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 300 pcs/ pre month

0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well

Description
Applicable: Liquid, Water Accuracy Grade: ±0.2% F.S
Process Connection: Thread, Flange (optional) Power Supply: 24VDC
Process Temperature: -10 ~+70 °C Signal Output: 4...20mADC / HART / RS485...
Display: Available Protection Class: IP67
High Light:

4.5V Submersible Level Sensor

,

Submersible Level Sensor 20ma

,

20ma Liquid Level Sensor



NH93420 Liquid Level Transmitter Pressure Sensor Transmitter



4-20ma 0.5-4.5V Liquid Level Transmitter Submersible Level Sensor Price For Water Tank Well



  • NH93420 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
  • With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
  • This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



NH93420 Liquid Level Transmitter Technical Parameter



Typical applications Liquid, corrosive liquid
Measurement range
Type Cable type Hard rod type .Cable . anticorrosive Rod-type anticorrosive
L (m) 0~170m 0~4m 0~170m 0~4m
Signal output: 4~20mADC/HART/RS485
Ambient temperature -40 〜85 °C
Process temperature

-10 ~+70 °C

Process connection thread flange mounting (optional)
Power supply 24VDC (± 5%)

Load capacity

< (U-15) / 0.02A

Diaphragm material

316L, ceramic diaphragm (optional) Case material: aluminum, stainless steel (optional)

Stability

±0.05%FS/ year; ±0.1 %FS/ year

Field display LCD (optional)
Level of protection IP67
Blast class

Exia II CT5  Exd IIBT5 (optional)



Note: Products can be customized according to the specific requirements of users!





NH93420 Liquid Level Transmitter Design Features



  • Adopting diffusion silicon oil-filled sensor
  • Max measure range up to 200 meters or more
  • High Stability, provide 0.1, 0.2, 0.5 accuracy for option
  • Factory direct price

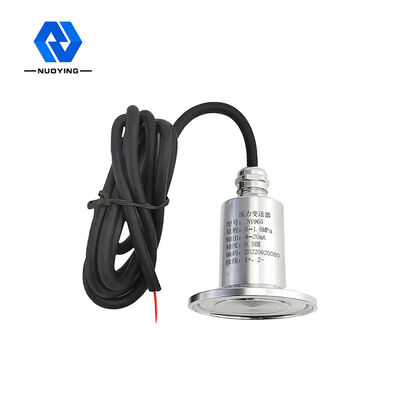

0.5-4.5V Submersible Level Sensor 4-20ma For Water Tank Well 0



NH93420 Liquid Level Transmitter Applications



  • Water tank level measurement and control.
  • Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
  • Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
  • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
