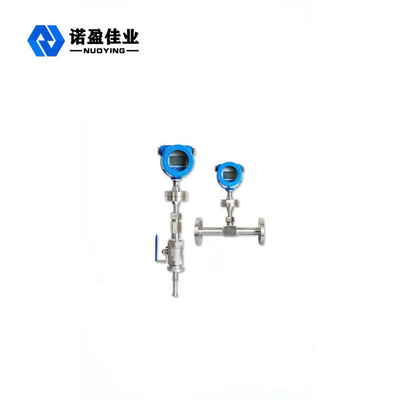

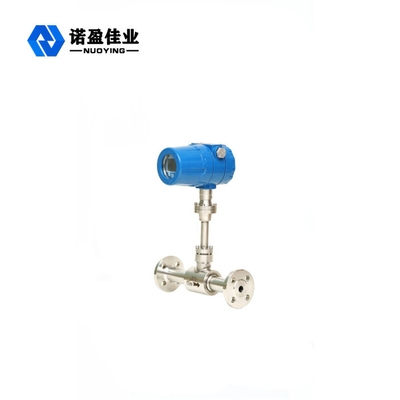

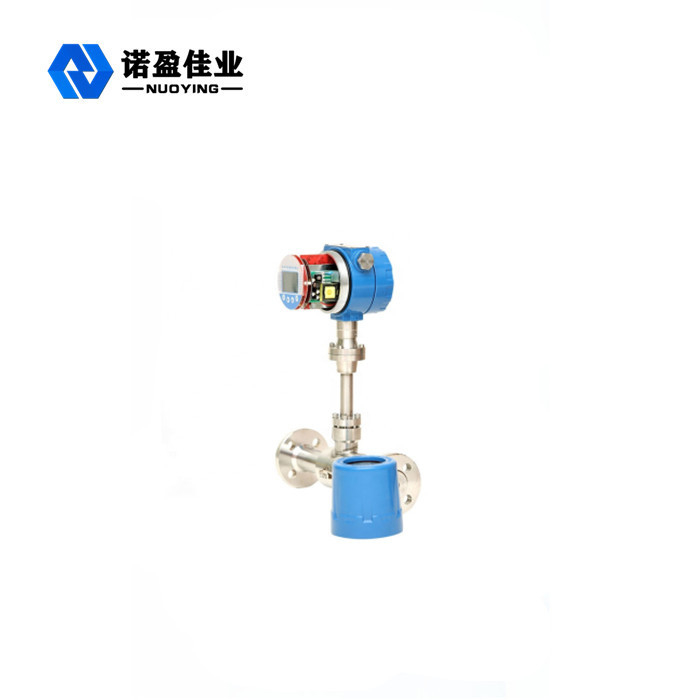

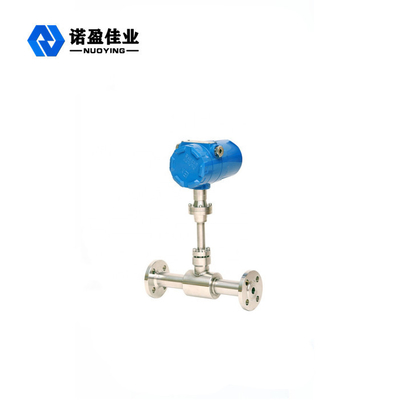

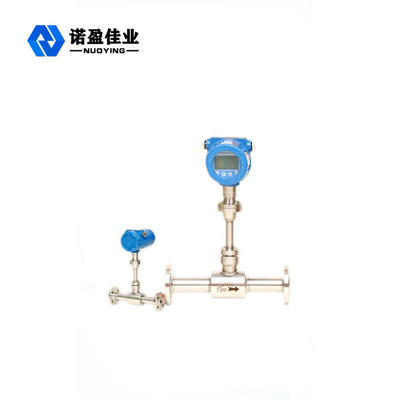

1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm

1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm
1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm

Large Image :  1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm

Product Details:
Place of Origin: Xi'an,China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYHGF-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $325.0~$510.0
Packaging Details: 50*30*30cm Carton
Payment Terms: T/T
Supply Ability: 500pcs/pre month

1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm

Description
Diameter: DN10-100 (Flange Type), DN125-1500 (Insert Type) Accuracy: ±1%
Output: 4-20mA, RS485 Power Supply: 24VDC
Pressure: 1.6Mpa Type: Mass Flowmeter
Display: 4 Lines LCD Display
High Light:

Insertion Type Thermal Mass Flow Meter

,

Thermal Mass Flow Meter 10mm

,

10mm water flow meter with rs485

Low Price Hotsell Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter



Low Price Hotsell Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Description:



      The NYHGF-3000 series of thermal gas mass flow meters are instruments that measure the mass flow of gases using the principle of heat transfer. The meter's sensor consists of two reference-level thermal resistors (platinum RTD). One is the mass velocity sensor T1, and the other is the temperature sensor T2 that measures the temperature change of the gas. When the two RTDs are placed in the gas to be measured, the sensor T1 is heated to a constant temperature difference above the gas temperature, and the other sensor T2 Used to sense the temperature of the gas being measured.



Low Price Hotsell Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Parameters:



Material Stainless steel, Cast steel
Display 4 lines LCD display
Accuracy ±1%
Measuring range All gases (except acetylene)
Diameter (MM) DN10-100 (Flange type), DN125-1500 (Insert type)
Flow rate 0.1-100Nm/s
Output signal Standard:4-20mA, Option:RS485/RS232
Press 1.6Mpa, Option (2.5MPa, 4.0MPa, 6.4Mpa)
Power Standard: 24VDC/1.5A, Option:220VAC
Conditions of use A. ambient temperature:-20 ~+150 ℃
B. medium temperature: 0 ~+200 ℃
C. relative humidity: 45-75%
D. atmospheric pressure: 86 kpa-106 kpa
Protection level IP65



Low Price Hotsell Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Features:



Core components

High-performance intelligent microprocessor and analog-to-digital and building-to-model conversion chip

LCD screen

The measurement reading is in place in one step, and the LCD screen is displayed on the spot

Signal output

Support analog output 4~20MA, RS485 communication, pulse output, 220VAC or 24VDC power supply to realize factory automation
Flange material

The flange standard complies with the international GB/T91-2000 and is made of 304 stainless steel.



1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 01% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 1

1% Accuracy Insertion Type Thermal Mass Flow Meter For Natural Gas 10mm 100mm 2
